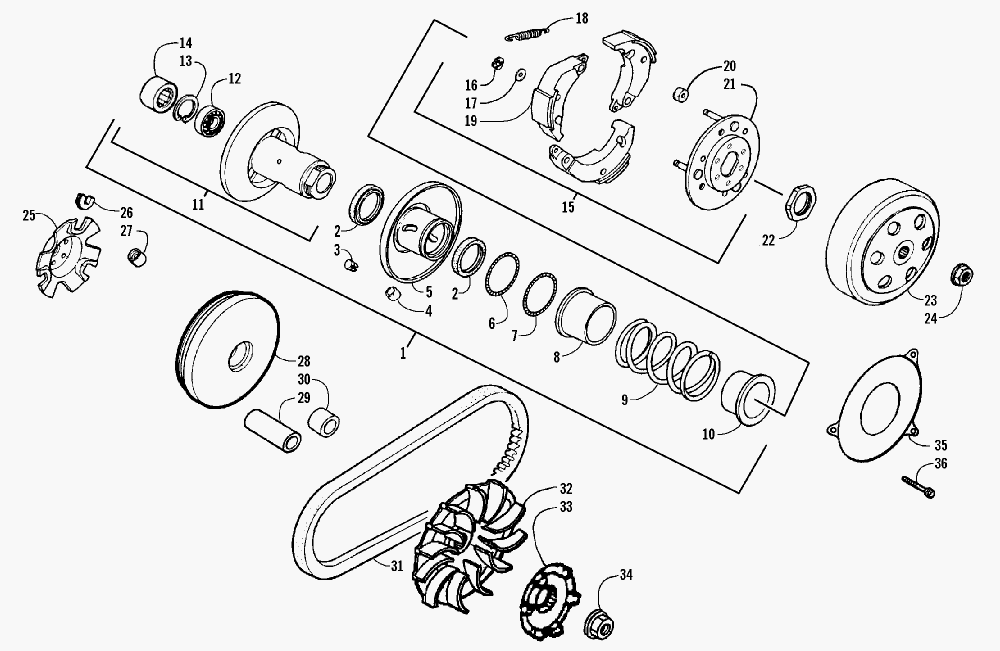

CLUTCH ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2007KSB2BUSZ] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-411 PULLEY, DRIVEN - ASSEMBLY (INC. 2-22)
    PULLEY, DRIVEN - ASSEMBLY (INC. 2-22)
  • 2
    3303-299 ...SEAL, OIL
    ...SEAL, OIL
  • 3
    3303-098 ...GUIDE, PIN
    ...GUIDE, PIN
  • 4
    3303-099 ...GUIDE, ROLLER
    ...GUIDE, ROLLER
  • 5
    3303-097 ...FACE, DRIVEN - MOVABLE
    ...FACE, DRIVEN - MOVABLE
  • 6
    3304-620 ...O-RING
    ...O-RING
  • 7
    3304-619 ...O-RING
    ...O-RING
  • 8
    3303-102 ...COLLAR, SPRING
    ...COLLAR, SPRING
  • 9
    3303-100 ...SPRING, DRIVEN FACE
    ...SPRING, DRIVEN FACE
  • 10
    3303-101 ...COLLAR, SEAL
    ...COLLAR, SEAL
  • 11
    3303-096 ...FACE, DRIVEN - FIXED - ASSEMBLY (INC. 12-14)
    ...FACE, DRIVEN - FIXED - ASSEMBLY (INC. 12-14)
  • 12
    3303-291 ......BEARING, BALL
    ......BEARING, BALL
  • 13
    3303-346 ......CIRCLIP
    ......CIRCLIP
  • 14
    3303-294 ......BEARING, NEEDLE
    ......BEARING, NEEDLE
  • 15
    3303-090 ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 16-21)
    ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 16-21)
  • 16
    3304-618 ......E-RING
    ......E-RING
  • 17
    3303-274 ......WASHER, THRUST
    ......WASHER, THRUST
  • 18
    3303-092 ......SPRING, CLUTCH
    ......SPRING, CLUTCH
  • 19
    3303-093 ......WEIGHT, CLUTCH
    ......WEIGHT, CLUTCH
  • 20
    3303-094 ......RUBBER, CLUTCH DAMPER
    ......RUBBER, CLUTCH DAMPER
  • 21
    3303-091 ......PLATE, DRIVE CLUTCH
    ......PLATE, DRIVE CLUTCH
  • 22
    3304-025 ...NUT
    ...NUT
  • 23
    3303-082 CLUTCH, OUTER
    CLUTCH, OUTER
  • 24
    3303-333 NUT, FLANGE
    NUT, FLANGE
  • 25
    3303-088 PLATE, RAMP
    PLATE, RAMP
  • 26
    3303-089 SLIDE
    SLIDE
  • 27
    3303-087 GUIDE, ROLLER
    GUIDE, ROLLER
  • 28
    3303-086 FACE, DRIVE - MOVABLE
    FACE, DRIVE - MOVABLE
  • 29
    3303-409 BOSS, DRIVE FACE
    BOSS, DRIVE FACE
  • 30
    3303-410 COLLAR, DRIVE FACE
    COLLAR, DRIVE FACE
  • 31
    3303-095 BELT, DRIVE
    BELT, DRIVE
  • 32
    3303-083 FACE, DRIVE
    FACE, DRIVE
  • 33
    3303-116 RATCHET, KICK STARTER
    RATCHET, KICK STARTER
  • 34
    3303-334 NUT, FLANGE
    NUT, FLANGE
  • 35
    3304-460 PLATE, DUST
    PLATE, DUST
  • 36
    3303-381 BOLT, FLANGE
    BOLT, FLANGE
