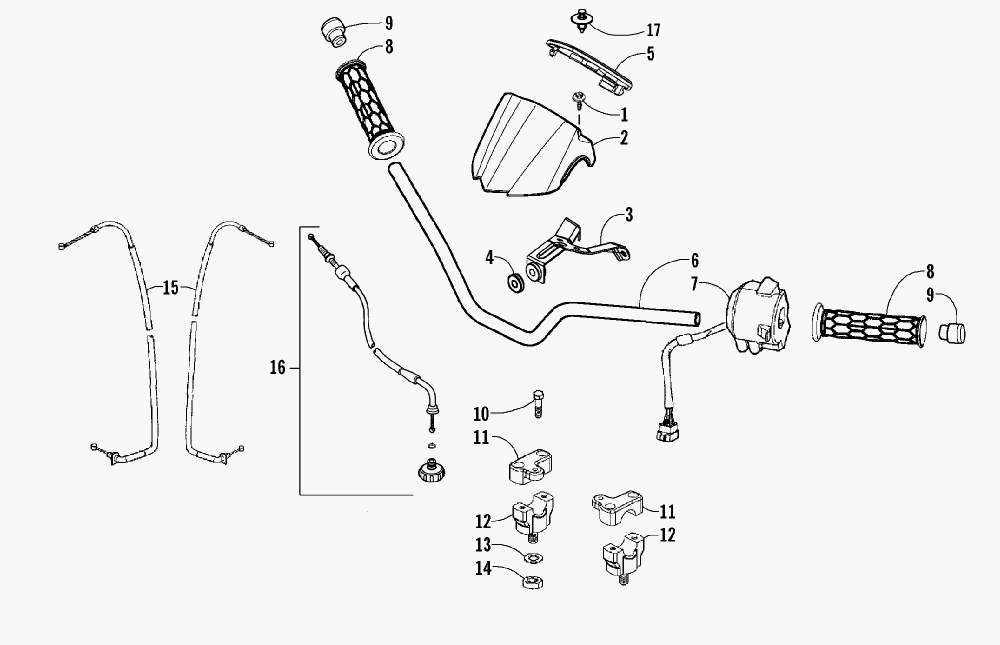

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2007KSB2BUSZ] - 2007 года выпуска
-
№АртикулНазвание
-
13304-553 BOLT W/WASHERBOLT W/WASHER
-
23303-436 COVER, HANDLEBARCOVER, HANDLEBAR
-
33303-435 BRACKET, HANDLEBAR COVER (INC. 4)BRACKET, HANDLEBAR COVER (INC. 4)
-
43303-239 ...GROMMET...GROMMET
-
53303-437 LID, HANDLEBAR COVERLID, HANDLEBAR COVER
-
63303-434 HANDLEBARHANDLEBAR
-
73303-424 SWITCH, HANDLEBAR - ASSEMBLYSWITCH, HANDLEBAR - ASSEMBLY
-
83303-203 GRIP, HANDLEBARGRIP, HANDLEBAR
-
93303-196 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
103303-398 BOLTBOLT
-
113303-197 HOLDER, HANDLEBAR - UPPER - RIGHTHOLDER, HANDLEBAR - UPPER - RIGHT
-
113303-198 HOLDER, HANDLEBAR - UPPER - LEFTHOLDER, HANDLEBAR - UPPER - LEFT
-
123303-199 HOLDER, HANDLEBAR - LOWERHOLDER, HANDLEBAR - LOWER
-
133305-277 WASHERWASHER
-
143303-325 NUT, HEXNUT, HEX
-
153303-173 CABLE, BRAKE - FRONTCABLE, BRAKE - FRONT
-
161502-096 CABLE, THROTTLE - KITCABLE, THROTTLE - KIT
-
173303-592 CLIPCLIP
