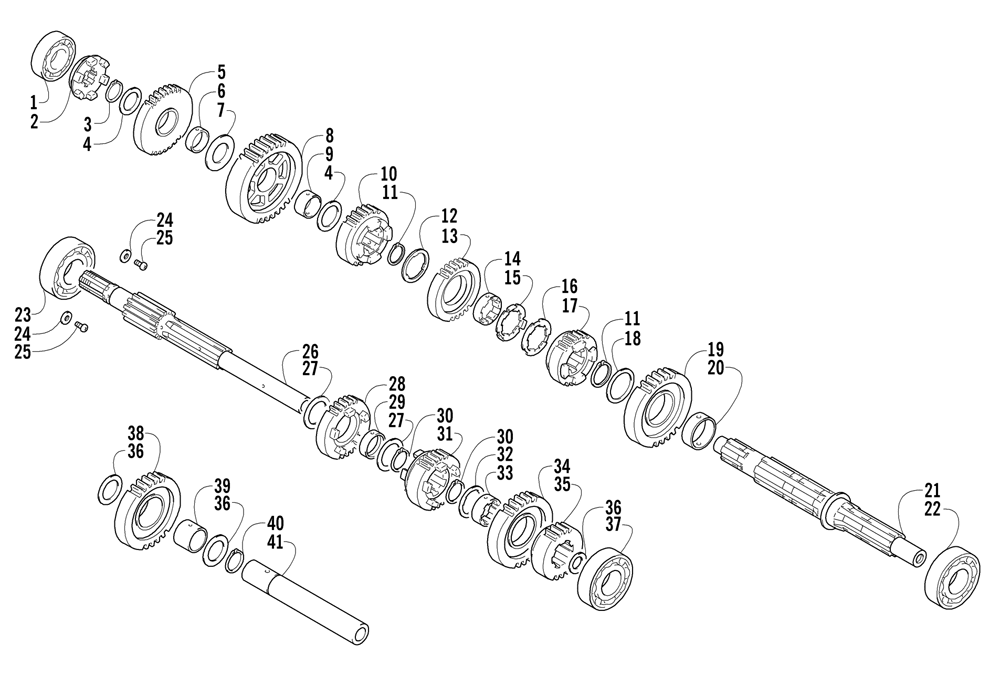

TRANSMISSION ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2007IBM4AUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3003-320 BEARING, DRIVESHAFT - RIGHT (M17X40X12)
    BEARING, DRIVESHAFT - RIGHT (M17X40X12)
  • 2
    3446-030 DOG, REVERSE
    DOG, REVERSE
  • 3
    3423-189 CIRCLIP
    CIRCLIP
  • 4
    3402-335 WASHER (22MM)
    WASHER (22MM)
  • 5
    3446-029 GEAR, REVERSE DRIVEN
    GEAR, REVERSE DRIVEN
  • 6
    3446-032 BUSHING, REVERSE DRIVEN GEAR
    BUSHING, REVERSE DRIVEN GEAR
  • 7
    3423-131 WASHER, 1ST DRIVEN GEAR - RIGHT
    WASHER, 1ST DRIVEN GEAR - RIGHT
  • 8
    3446-235 GEAR, 1ST DRIVEN
    GEAR, 1ST DRIVEN
  • 9
    3402-692 BUSHING, 1ST DRIVEN GEAR
    BUSHING, 1ST DRIVEN GEAR
  • 10
    3446-340 GEAR, 4TH DRIVEN
    GEAR, 4TH DRIVEN
  • 11
    3423-188 CIRCLIP
    CIRCLIP
  • 12
    3423-038 WASHER, 3RD DRIVEN GEAR - RIGHT (25MM)
    WASHER, 3RD DRIVEN GEAR - RIGHT (25MM)
  • 13
    3446-339 GEAR, 3RD DRIVEN
    GEAR, 3RD DRIVEN
  • 14
    3446-024 BUSHING, 3RD DRIVEN GEAR
    BUSHING, 3RD DRIVEN GEAR
  • 15
    3423-039 WASHER, 3RD DRIVEN GEAR - LEFT (28MM)
    WASHER, 3RD DRIVEN GEAR - LEFT (28MM)
  • 16
    3423-040 WASHER, 3RD DRIVEN GEAR - LEFT (28MM)
    WASHER, 3RD DRIVEN GEAR - LEFT (28MM)
  • 17
    3446-341 GEAR, 5TH DRIVEN
    GEAR, 5TH DRIVEN
  • 18
    3402-383 WASHER, 2ND DRIVEN GEAR (M28X36X1)
    WASHER, 2ND DRIVEN GEAR (M28X36X1)
  • 19
    3446-022 GEAR, 2ND DRIVEN
    GEAR, 2ND DRIVEN
  • 20
    3402-082 BUSHING, 2ND DRIVEN GEAR
    BUSHING, 2ND DRIVEN GEAR
  • 21
    3446-234 DRIVESHAFT
    DRIVESHAFT
  • 22
    3402-336 BEARING, DRIVESHAFT - MIDDLE
    BEARING, DRIVESHAFT - MIDDLE
  • 23
    3402-050 BEARING, COUNTERSHAFT - RIGHT (M22X56X16)
    BEARING, COUNTERSHAFT - RIGHT (M22X56X16)
  • 24
    3423-135 RETAINER, COUNTERSHAFT BEARING
    RETAINER, COUNTERSHAFT BEARING
  • 25
    3423-370 SCREW (6MM)
    SCREW (6MM)
  • 26
    3446-014 COUNTERSHAFT
    COUNTERSHAFT
  • 27
    3423-187 WASHER, 4TH DRIVE GEAR (M25X36)
    WASHER, 4TH DRIVE GEAR (M25X36)
  • 28
    3446-337 GEAR, 4TH DRIVE
    GEAR, 4TH DRIVE
  • 29
    3423-547 BUSHING, 4TH DRIVE GEAR
    BUSHING, 4TH DRIVE GEAR
  • 30
    3423-066 CIRCLIP
    CIRCLIP
  • 31
    3446-336 GEAR, 3RD DRIVE
    GEAR, 3RD DRIVE
  • 32
    3423-037 WASHER, 5TH DRIVE GEAR (25MM)
    WASHER, 5TH DRIVE GEAR (25MM)
  • 33
    3446-020 BUSHING, 5TH DRIVE GEAR
    BUSHING, 5TH DRIVE GEAR
  • 34
    3446-338 GEAR, 5TH DRIVE
    GEAR, 5TH DRIVE
  • 35
    3446-016 GEAR, 2ND DRIVE
    GEAR, 2ND DRIVE
  • 36
    3402-195 SHIM (20MM)
    SHIM (20MM)
  • 37
    3402-179 BEARING, COUNTERSHAFT - MIDDLE
    BEARING, COUNTERSHAFT - MIDDLE
  • 38
    3446-237 GEAR, REVERSE IDLE
    GEAR, REVERSE IDLE
  • 39
    3446-238 BUSHING, REVERSE IDLE
    BUSHING, REVERSE IDLE
  • 40
    3423-190 CIRCLIP
    CIRCLIP
  • 41
    3446-236 SHAFT, REVERSE IDLE
    SHAFT, REVERSE IDLE
