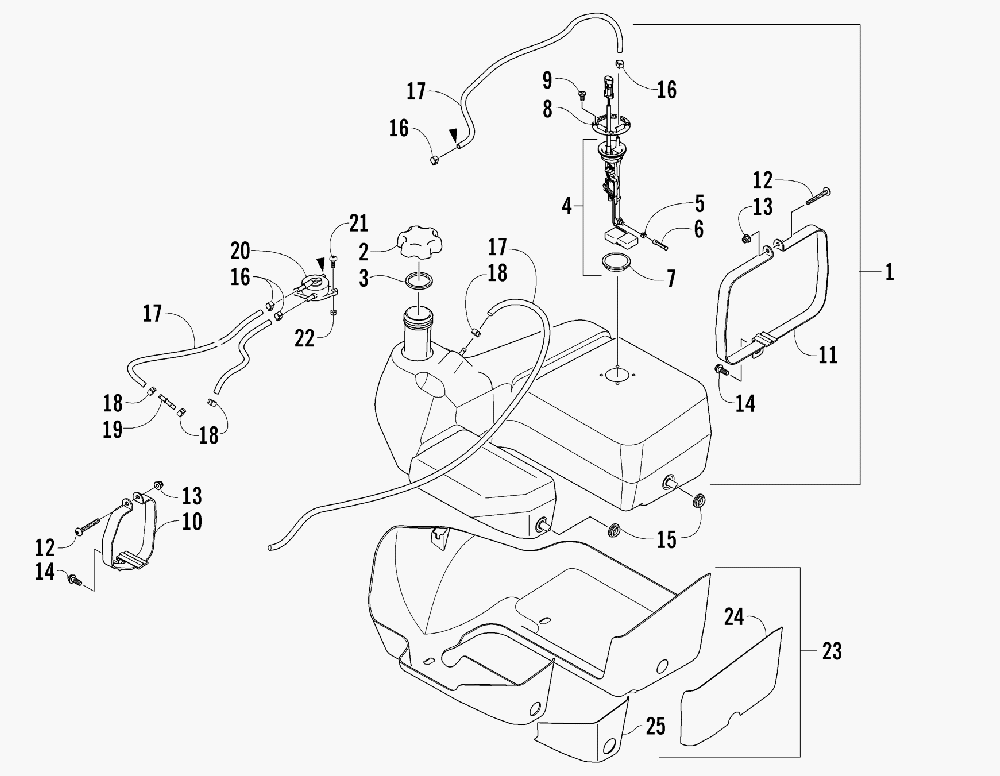

GAS TANK ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2007IBM4AUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-144 TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-13)
    TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-13)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ...GASKET, GAS TANK CAP
    ...GASKET, GAS TANK CAP
  • 4
    0570-141 ...SENSOR, FUEL LEVEL (INC. 5-7)
    ...SENSOR, FUEL LEVEL (INC. 5-7)
  • 5
    0423-603 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 6
    0470-475 ...FILTER, FUEL
    ...FILTER, FUEL
  • 7
    0470-521 ...SEAL, FUEL LEVEL SENSOR
    ...SEAL, FUEL LEVEL SENSOR
  • 8
    0470-639 ...PLATE, MOUNTING - FUEL LEVEL SENSOR
    ...PLATE, MOUNTING - FUEL LEVEL SENSOR
  • 9
    1623-158 ...SCREW, PLASTITE (1/4-10X.5)
    ...SCREW, PLASTITE (1/4-10X.5)
  • 10
    0570-166 ...STRAP, MOUNTING - GAS TANK
    ...STRAP, MOUNTING - GAS TANK
  • 11
    0570-167 ...STRAP, MOUNTING - GAS TANK
    ...STRAP, MOUNTING - GAS TANK
  • 12
    8476-650 ...SCREW, MACHINE (M6X1.0X50 Z & Y)
    ...SCREW, MACHINE (M6X1.0X50 Z & Y)
  • 13
    8427-602 ...NUT, NYLOCK (M6X1.0 CL)
    ...NUT, NYLOCK (M6X1.0 CL)
  • 14
    8408-816 SCREW, CAP (M8X1.25X16 CL8.8)
    SCREW, CAP (M8X1.25X16 CL8.8)
  • 15
    0423-460 GROMMET
    GROMMET
  • 16
    0423-688 CLAMP, HOSE (10MM)
    CLAMP, HOSE (10MM)
  • 17
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 18
    0423-670 CLAMP, HOSE (9MM)
    CLAMP, HOSE (9MM)
  • 19
    0470-527 FITTING, STRAIGHT
    FITTING, STRAIGHT
  • 20
    0470-519 PUMP, FUEL
    PUMP, FUEL
  • 21
    8476-620 SCREW, MACHINE (M6X1.0X20 Z & Y)
    SCREW, MACHINE (M6X1.0X20 Z & Y)
  • 22
    0623-038 NUT, LOCK
    NUT, LOCK
  • 23
    0570-081 SHIELD, GAS TANK - ASSEMBLY (INC. 24-25)
    SHIELD, GAS TANK - ASSEMBLY (INC. 24-25)
  • 24
    0470-498 ...SHIELD, HEAT
    ...SHIELD, HEAT
  • 25
    0470-499 ...SHIELD, HEAT
    ...SHIELD, HEAT
