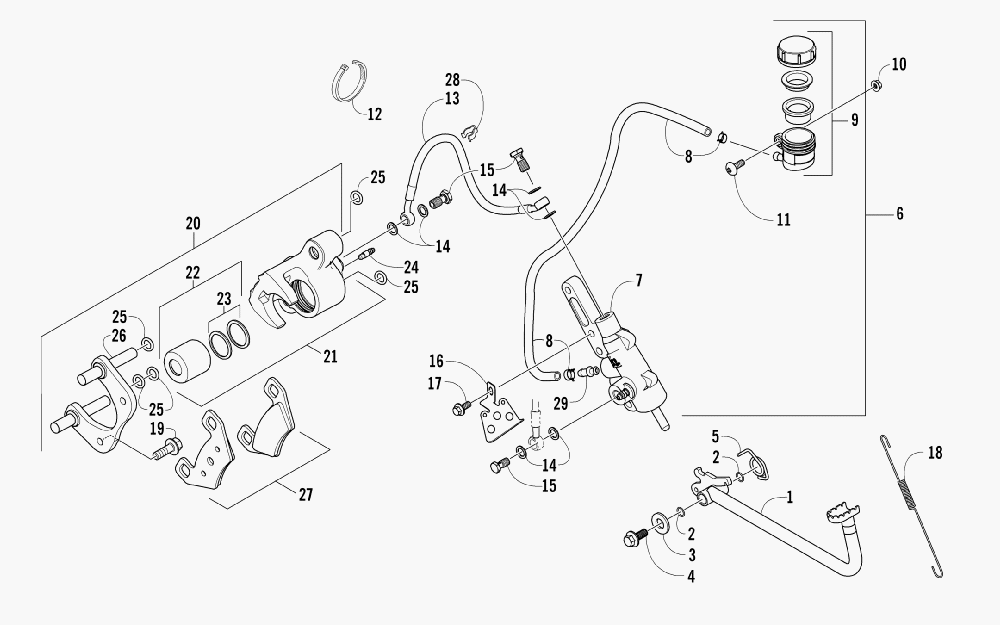

AUXILIARY BRAKE ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2007IBM4AUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1502-135 MASTER CYLINDER REPLACEMENT KIT
    MASTER CYLINDER REPLACEMENT KIT
  • 1
    1502-066 LEVER, BRAKE (BLACK)
    LEVER, BRAKE (BLACK)
  • 2
    1602-213 O-RING
    O-RING
  • 3
    8050-252 WASHER, FLAT (5/16 X .875 X .06)
    WASHER, FLAT (5/16 X .875 X .06)
  • 4
    8408-816 SCREW, CAP (M8X1.25X16 CL8.8)
    SCREW, CAP (M8X1.25X16 CL8.8)
  • 5
    0502-807 SPRING, BRAKE LEVER (BLACK)
    SPRING, BRAKE LEVER (BLACK)
  • 6
    1502-137 BRAKE ASSEMBLY (INC. 7-9)
    BRAKE ASSEMBLY (INC. 7-9)
  • 8
    1502-142 ...HOSE, BRAKE RESERVOIR W/CLAMPS
    ...HOSE, BRAKE RESERVOIR W/CLAMPS
  • 9
    1502-141 ...RESERVOIR, BRAKE
    ...RESERVOIR, BRAKE
  • 10
    0623-038 NUT, FLANGED
    NUT, FLANGED
  • 11
    8476-616 SCREW, MACHINE (M6X1.0X16 Z & Y)
    SCREW, MACHINE (M6X1.0X16 Z & Y)
  • 12
    0123-788 CABLE TIE - 7.5 IN.
    CABLE TIE - 7.5 IN.
  • 13
    1502-139 HOSE, BRAKE
    HOSE, BRAKE
  • 14
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 15
    0423-413 BOLT, BANJO-FITTING (20MM)
    BOLT, BANJO-FITTING (20MM)
  • 16
    1502-179 BRACKET, SWITCH
    BRACKET, SWITCH
  • 17
    8408-625 SCREW, CAP (M6X1.0X25 CL8.8)
    SCREW, CAP (M6X1.0X25 CL8.8)
  • 18
    0502-785 SPRING, BRAKE SWITCH
    SPRING, BRAKE SWITCH
  • 19
    1623-589 SCREW, CAP (M8X1.25X20 CL8.8)
    SCREW, CAP (M8X1.25X20 CL8.8)
  • 20
    0502-878 CALIPER, BRAKE (INC. 21-27)
    CALIPER, BRAKE (INC. 21-27)
  • 21
    0502-603 ...HOUSING, CALIPER - ASSEMBLY - RIGHT REAR (INC. 22-24)
    ...HOUSING, CALIPER - ASSEMBLY - RIGHT REAR (INC. 22-24)
  • 22
    0502-606 ...PISTON/SEAL SET (INC. 23)
    ...PISTON/SEAL SET (INC. 23)
  • 23
    0502-607 ...SEAL SET
    ...SEAL SET
  • 24
    0502-609 ...VALVE, BLEED
    ...VALVE, BLEED
  • 25
    0502-608 ...O-RING, GUIDE - SET
    ...O-RING, GUIDE - SET
  • 26
    0502-605 ...BRACKET ASSEMBLY
    ...BRACKET ASSEMBLY
  • 27
    0502-875 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 28
    1502-115 CLIP, BRAKE HOSE
    CLIP, BRAKE HOSE
  • 29
    1502-138 ADAPTER, HOSE
    ADAPTER, HOSE
