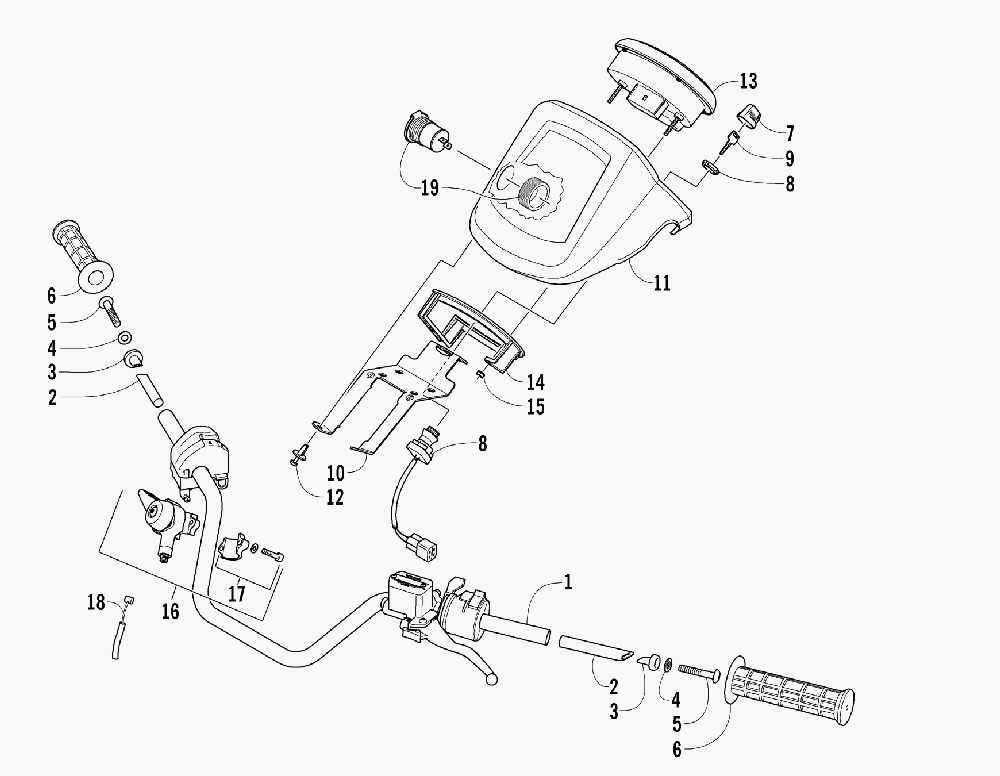

HANDLEBAR ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2007IBM4AUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0505-476 TUBE, HANDLEBAR (BLACK)
    TUBE, HANDLEBAR (BLACK)
  • 2
    0405-218 PLUG, HANDLEBAR
    PLUG, HANDLEBAR
  • 3
    0405-149 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 4
    8050-247 WASHER, FLAT (5/16 X .688 X .06)
    WASHER, FLAT (5/16 X .688 X .06)
  • 5
    8477-845 SCREW, MACHINE (M8X1.25X45 Z & )
    SCREW, MACHINE (M8X1.25X45 Z & )
  • 6
    0405-147 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 7
    0409-013 COVER, KEY
    COVER, KEY
  • 8
    3430-040 SWITCH, IGNITION - ASSEMBLY (INC. 9)
    SWITCH, IGNITION - ASSEMBLY (INC. 9)
  • 9
    3409-007 ...KEY, IGNITION - BLANK (C SERIES)
    ...KEY, IGNITION - BLANK (C SERIES)
  • 9
    3409-011 ...KEY, IGNITION - BLANK (D SERIES)
    ...KEY, IGNITION - BLANK (D SERIES)
  • 9
    3409-012 ...KEY, IGNITION - BLANK (E SERIES)
    ...KEY, IGNITION - BLANK (E SERIES)
  • 9
    3409-013 ...KEY, IGNITION - BLANK (F SERIES)
    ...KEY, IGNITION - BLANK (F SERIES)
  • 10
    1506-578 BRACKET, MOUNTING - INSTRUMENT POD (BLACK)
    BRACKET, MOUNTING - INSTRUMENT POD (BLACK)
  • 11
    0405-188 INSTRUMENT POD (RED)
    INSTRUMENT POD (RED)
  • 11
    0405-189 INSTRUMENT POD (GREEN)
    INSTRUMENT POD (GREEN)
  • 11
    0405-190 INSTRUMENT POD (CAT GREEN)
    INSTRUMENT POD (CAT GREEN)
  • 12
    0423-535 RIVET, PLASTIC REINSTALLABLE
    RIVET, PLASTIC REINSTALLABLE
  • 13
    0520-018 GAUGE, LCD DIGITAL
    GAUGE, LCD DIGITAL
  • 14
    0420-065 CLAMP, PLASTIC-LCD GAUGE
    CLAMP, PLASTIC-LCD GAUGE
  • 15
    0423-493 NUT, HEX M4-.7 W/STAR WASHER
    NUT, HEX M4-.7 W/STAR WASHER
  • 16
    0502-527 CONTROL, DIFFERENTIAL LOCK (INC. 17)
    CONTROL, DIFFERENTIAL LOCK (INC. 17)
  • 17
    0502-613 ...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT
    ...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT
  • 18
    0487-030 CABLE, DIFFERENTIAL LOCK
    CABLE, DIFFERENTIAL LOCK
  • 19
    0641-897 OUTLET, ACCESSORY - 12V DC
    OUTLET, ACCESSORY - 12V DC
