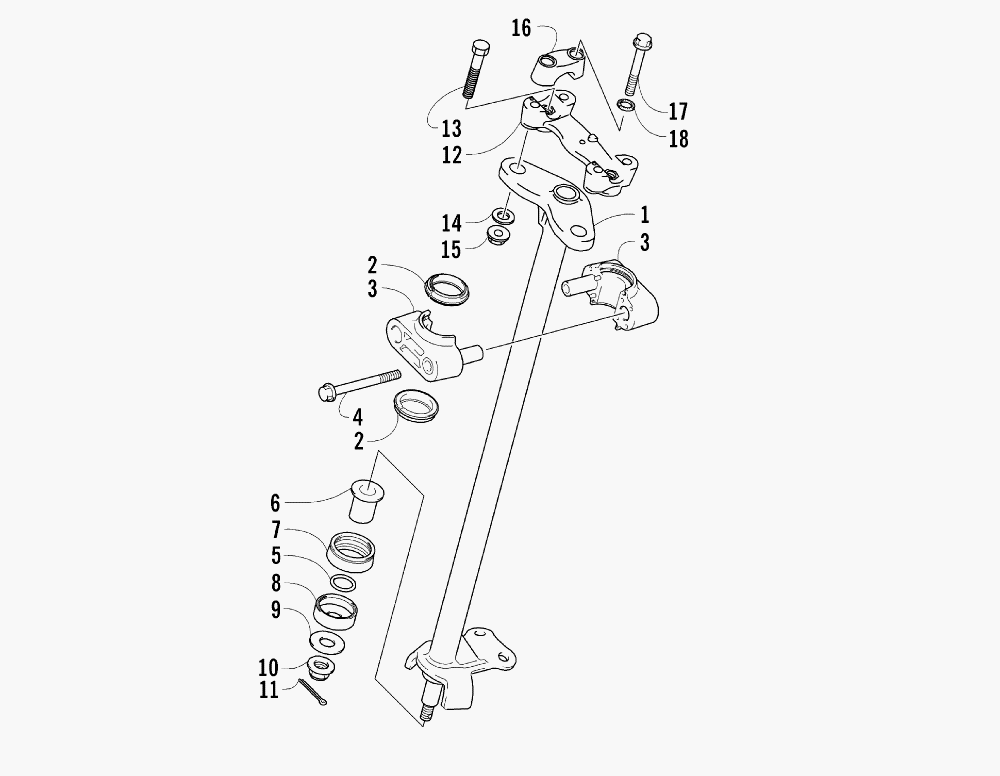

STEERING POST ASSEMBLY для Arctic Cat DVX 400 (TONY STEWART EDITION) [A2006DVI2AUSX] - 2006 года выпуска
-
№АртикулНазвание
-
3405-046 POST, STEERINGPOST, STEERING
-
23405-014 SEAL, DUST - STEERING POST HOLDERSEAL, DUST - STEERING POST HOLDER
-
33405-013 HOLDER, STEERING POSTHOLDER, STEERING POST
-
43423-602 BOLTBOLT
-
53423-055 O-RINGO-RING
-
63405-038 BUSHING, STEERING POSTBUSHING, STEERING POST
-
73405-047 SEAL, DUST - STEERING POST -UPPERSEAL, DUST - STEERING POST -UPPER
-
83405-048 SEAL, DUST - STEERING POST - LOWERSEAL, DUST - STEERING POST - LOWER
-
93423-676 WASHERWASHER
-
103423-624 NUTNUT
-
113423-607 PIN, COTTERPIN, COTTER
-
123405-050 CLAMP, HANDLEBAR - LOWERCLAMP, HANDLEBAR - LOWER
-
133423-781 BOLT, HANDLEBAR CLAMP - LOWERBOLT, HANDLEBAR CLAMP - LOWER
-
143423-782 WASHERWASHER
-
153423-341 NUTNUT
-
163405-049 CLAMP, HANDLEBAR - UPPERCLAMP, HANDLEBAR - UPPER
-
173004-498 BOLT, HANDLEBAR CLAMP - UPPERBOLT, HANDLEBAR CLAMP - UPPER
-
183423-682 WASHERWASHER
