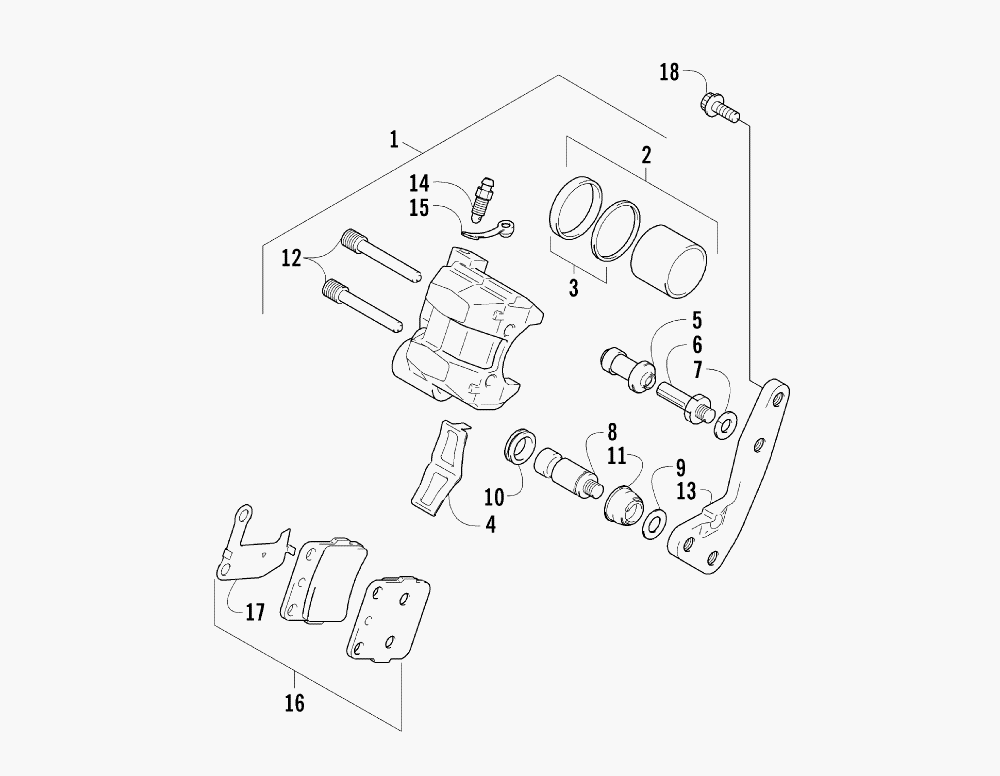

FRONT BRAKE ASSEMBLY для Arctic Cat DVX 400 (TONY STEWART EDITION) [A2006DVI2AUSX] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3406-023 CALIPER, BRAKE - RIGHT (INC. 2-15)
    CALIPER, BRAKE - RIGHT (INC. 2-15)
  • 1
    3406-030 CALIPER, BRAKE - LEFT (INC. 2-15)
    CALIPER, BRAKE - LEFT (INC. 2-15)
  • 2
    3406-021 ...PISTON SET (INC. 3)
    ...PISTON SET (INC. 3)
  • 3
    3406-022 ......SEAL SET, PISTON
    ......SEAL SET, PISTON
  • 4
    3406-036 ...SPRING, PAD
    ...SPRING, PAD
  • 5
    3406-043 ...BOOT
    ...BOOT
  • 6
    3423-584 ...PIN
    ...PIN
  • 7
    3406-035 ...WASHER
    ...WASHER
  • 8
    3406-024 ...PIN, SLIDE
    ...PIN, SLIDE
  • 9
    3406-034 ...SPRING
    ...SPRING
  • 10
    3406-042 ...PLUG, DUST
    ...PLUG, DUST
  • 11
    3406-033 ...BOOT
    ...BOOT
  • 12
    3406-037 ...PIN
    ...PIN
  • 13
    3406-027 ...BRACKET - RIGHT
    ...BRACKET - RIGHT
  • 13
    3406-040 ...BRACKET - LEFT
    ...BRACKET - LEFT
  • 14
    3406-025 ...VALVE, BLEED
    ...VALVE, BLEED
  • 15
    3406-026 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 16
    3406-031 PAD, BRAKE - SET - RIGHT (INC. 17)
    PAD, BRAKE - SET - RIGHT (INC. 17)
  • 16
    3406-032 PAD, BRAKE - SET - LEFT (INC. 17)
    PAD, BRAKE - SET - LEFT (INC. 17)
  • 17
    3406-041 ...SHIM - RIGHT
    ...SHIM - RIGHT
  • 17
    3406-082 ...SHIM - LEFT
    ...SHIM - LEFT
  • 18
    3423-784 BOLT
    BOLT
