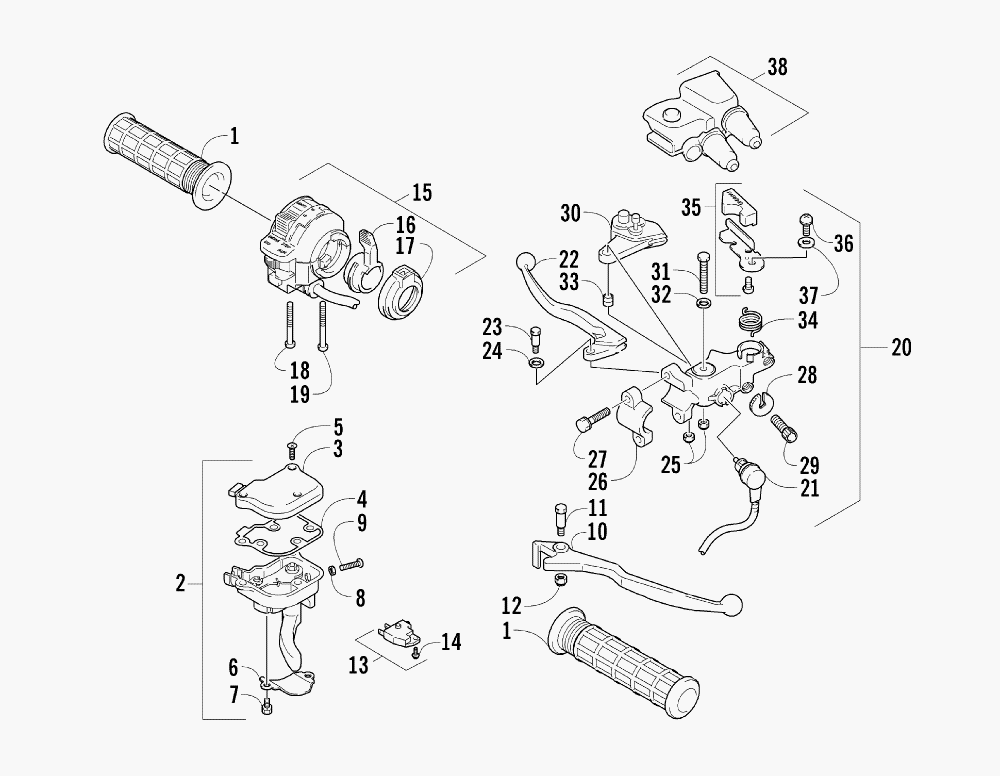

CONTROLS для Arctic Cat DVX 400 (TONY STEWART EDITION) [A2006DVI2AUSX] - 2006 года выпуска`
-
№АртикулНазвание
-
3405-037 GRIP, HANDLEBARGRIP, HANDLEBAR
-
23405-042 CASE, THROTTLE (INC. 3-9)CASE, THROTTLE (INC. 3-9)
-
33405-035 ...CAP...CAP
-
43423-582 ...GASKET...GASKET
-
53423-581 ...SCREW...SCREW
-
63405-036 ...HOLDER...HOLDER
-
73423-580 ...BOLT...BOLT
-
83004-853 ...NUT...NUT
-
91691-018 ...SCREW...SCREW
-
103402-886 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
113423-583 BOLT, PIVOTBOLT, PIVOT
-
123423-748 NUTNUT
-
133409-037 SWITCH, STOP (INC. 14)SWITCH, STOP (INC. 14)
-
143423-750 ...SCREW...SCREW
-
153509-010 SWITCH, CONTROL - ASSEMBLY (INC. 16-19)SWITCH, CONTROL - ASSEMBLY (INC. 16-19)
-
163409-009 ...LEVER, CHOKE...LEVER, CHOKE
-
173409-010 ...COVER, CHOKE...COVER, CHOKE
-
183423-196 ...SCREW...SCREW
-
193423-197 ...SCREW...SCREW
-
203446-419 LEVER, CLUTCH - ASSEMBLY (INC. 21-37)LEVER, CLUTCH - ASSEMBLY (INC. 21-37)
-
213409-041 ...SWITCH, CLUTCH...SWITCH, CLUTCH
-
223402-964 ...LEVER...LEVER
-
233423-751 ...BOLT, PIVOT...BOLT, PIVOT
-
243423-746 ...WASHER...WASHER
-
253423-623 ...NUT...NUT
-
263502-025 ...HOLDER...HOLDER
-
273004-507 ...BOLT...BOLT
-
283402-963 ...NUT, ADJUSTER...NUT, ADJUSTER
-
293423-749 ...BOLT, ADJUSTER...BOLT, ADJUSTER
-
303402-968 ...LOCK, PARKING BRAKE...LOCK, PARKING BRAKE
-
313423-745 ...BOLT, PARKING BRAKE LOCK...BOLT, PARKING BRAKE LOCK
-
323423-747 ...WASHER...WASHER
-
333402-965 ...SPACER...SPACER
-
343402-966 ...SPRING, RETURN...SPRING, RETURN
-
353402-967 ...KNOB, PARKING BRAKE LOCK...KNOB, PARKING BRAKE LOCK
-
363423-753 ...SCREW, PARKING BRAKE LOCK KNOB...SCREW, PARKING BRAKE LOCK KNOB
-
373423-752 ...WASHER...WASHER
-
383406-019 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
