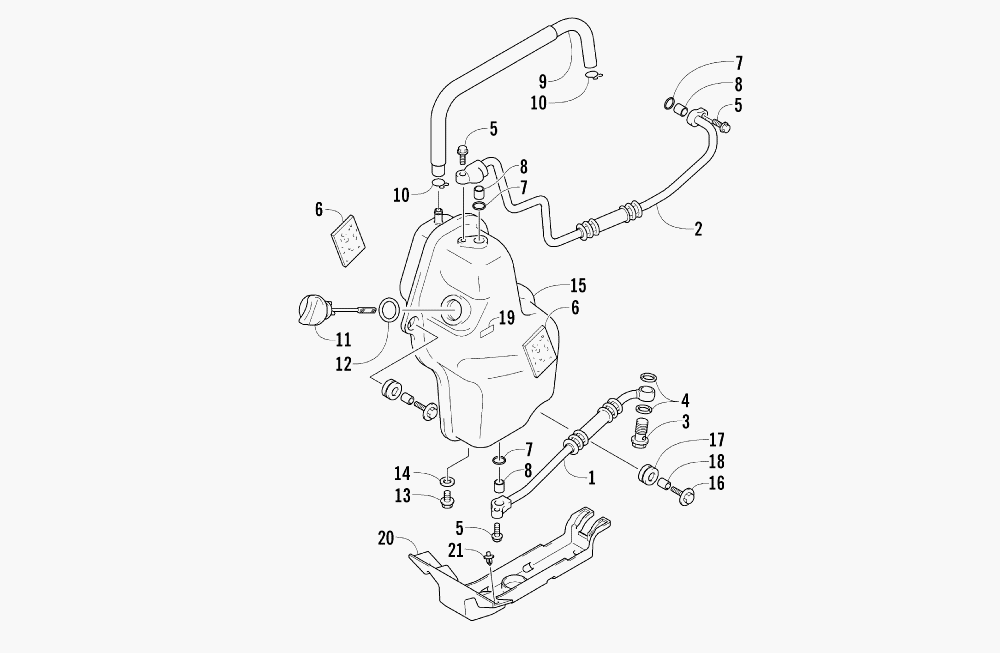

OIL TANK AND HOSE ASSEMBLY для Arctic Cat DVX 400 (TONY STEWART EDITION) [A2006DVI2AUSX] - 2006 года выпуска

  • №
    Артикул
    Название
  • 3410-019 HOSE, OIL TANK - RIGHT
    HOSE, OIL TANK - RIGHT
  • 2
    3410-020 HOSE, OIL TANK - LEFT
    HOSE, OIL TANK - LEFT
  • 3
    3423-720 BOLT, UNION
    BOLT, UNION
  • 4
    3006-113 GASKET, OIL HOSE UNION
    GASKET, OIL HOSE UNION
  • 5
    3004-512 BOLT
    BOLT
  • 6
    3423-744 CUSHION, OIL TANK
    CUSHION, OIL TANK
  • 7
    3423-711 O-RING, OIL HOSE
    O-RING, OIL HOSE
  • 8
    3008-199 PIN, OIL TANK HOSE
    PIN, OIL TANK HOSE
  • 9
    3410-018 HOSE, OIL OVERFLOW
    HOSE, OIL OVERFLOW
  • 10
    3423-723 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    3470-009 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 12
    3423-055 O-RING, OIL LEVEL GAUGE
    O-RING, OIL LEVEL GAUGE
  • 13
    3004-705 PLUG, OIL DRAIN
    PLUG, OIL DRAIN
  • 14
    3402-436 GASKET, OIL DRAIN PLUG
    GASKET, OIL DRAIN PLUG
  • 15
    3502-021 TANK, OIL
    TANK, OIL
  • 16
    3423-657 BOLT, OIL TANK
    BOLT, OIL TANK
  • 17
    3423-716 CUSHION, OIL TANK
    CUSHION, OIL TANK
  • 18
    3423-692 SPACER, OIL TANK
    SPACER, OIL TANK
  • 19
    3406-074 DECAL, OIL LEVEL
    DECAL, OIL LEVEL
  • 20
    3402-882 PROTECTOR, OIL TANK
    PROTECTOR, OIL TANK
  • 21
    3423-423 CLIP
    CLIP
