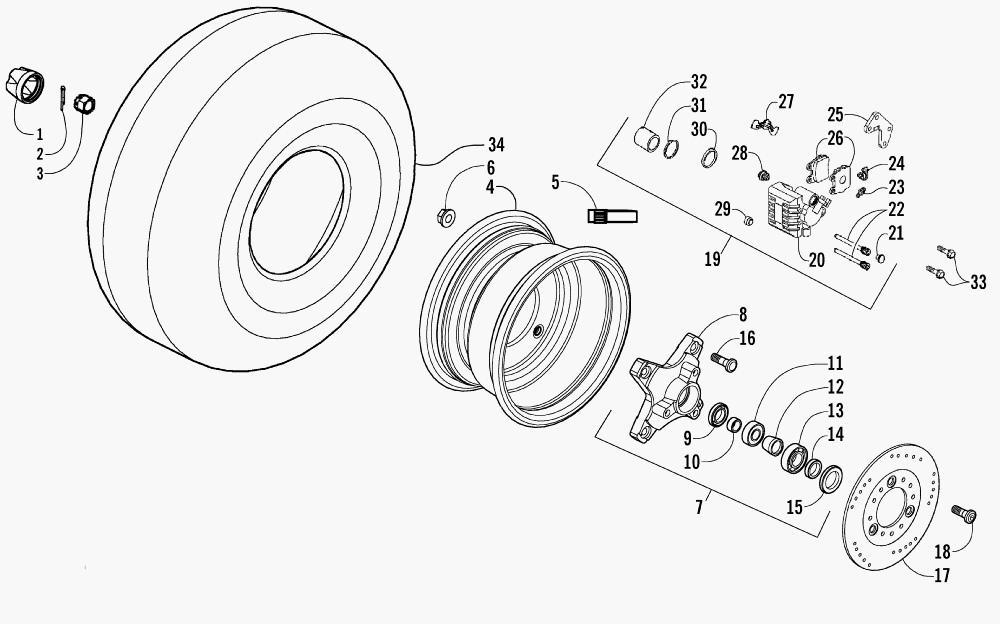

FRONT WHEELS AND BRAKE ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2006KUE2BUSG] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-931 CAP, WHEEL
    CAP, WHEEL
  • 2
    3303-340 PIN, COTTER
    PIN, COTTER
  • 3
    3303-330 NUT
    NUT
  • 4
    3303-902 WHEEL, FRONT
    WHEEL, FRONT
  • 5
    3304-562 VALVE, WHEEL
    VALVE, WHEEL
  • 6
    3304-028 NUT, WHEEL
    NUT, WHEEL
  • 7
    3303-903 HUB, WHEEL - ASSEMBLY - FRONT (INC. 8-16)
    HUB, WHEEL - ASSEMBLY - FRONT (INC. 8-16)
  • 9
    3304-089 ...SEAL, OIL
    ...SEAL, OIL
  • 10
    3303-898 ...COLLAR, WHEEL - INSIDE
    ...COLLAR, WHEEL - INSIDE
  • 11
    3304-200 ...BEARING
    ...BEARING
  • 12
    3303-900 ...COLLAR, WHEEL - CENTER
    ...COLLAR, WHEEL - CENTER
  • 13
    3304-202 ...BEARING
    ...BEARING
  • 14
    3303-899 ...COLLAR, WHEEL - OUTSIDE
    ...COLLAR, WHEEL - OUTSIDE
  • 15
    3304-088 ...SEAL, OIL
    ...SEAL, OIL
  • 16
    3304-014 ...BOLT, CONNECTOR
    ...BOLT, CONNECTOR
  • 17
    3303-912 DISC, BRAKE - FRONT - RIGHT
    DISC, BRAKE - FRONT - RIGHT
  • 17
    3303-918 DISC, BRAKE - FRONT - LEFT
    DISC, BRAKE - FRONT - LEFT
  • 18
    3304-015 BOLT
    BOLT
  • 19
    3304-313 CALIPER ASSEMBLY - FRONT - RIGHT (INC. 20-32)
    CALIPER ASSEMBLY - FRONT - RIGHT (INC. 20-32)
  • 19
    3303-921 CALIPER ASSEMBLY - FRONT - LEFT (INC. 20-32)
    CALIPER ASSEMBLY - FRONT - LEFT (INC. 20-32)
  • 21
    3304-334 ...PLUG
    ...PLUG
  • 22
    3304-326 ...PIN
    ...PIN
  • 23
    3304-330 ...VALVE, BLEED
    ...VALVE, BLEED
  • 24
    3304-331 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 25
    3304-317 ...BRACKET, RIGHT
    ...BRACKET, RIGHT
  • 25
    3304-328 ...BRACKET, LEFT
    ...BRACKET, LEFT
  • 26
    3303-908 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 27
    3304-315 ...SPRING, BRAKE PAD
    ...SPRING, BRAKE PAD
  • 28
    3304-322 ...BOOT A
    ...BOOT A
  • 29
    3304-329 ...BUSHING
    ...BUSHING
  • 30
    3303-922 ...SEAL, PISTON
    ...SEAL, PISTON
  • 31
    3303-910 ...SEAL, DUST
    ...SEAL, DUST
  • 32
    3303-909 ...PISTON
    ...PISTON
  • 33
    3304-174 SCREW, CAP
    SCREW, CAP
  • 34
    3303-904 TIRE, FRONT
    TIRE, FRONT
