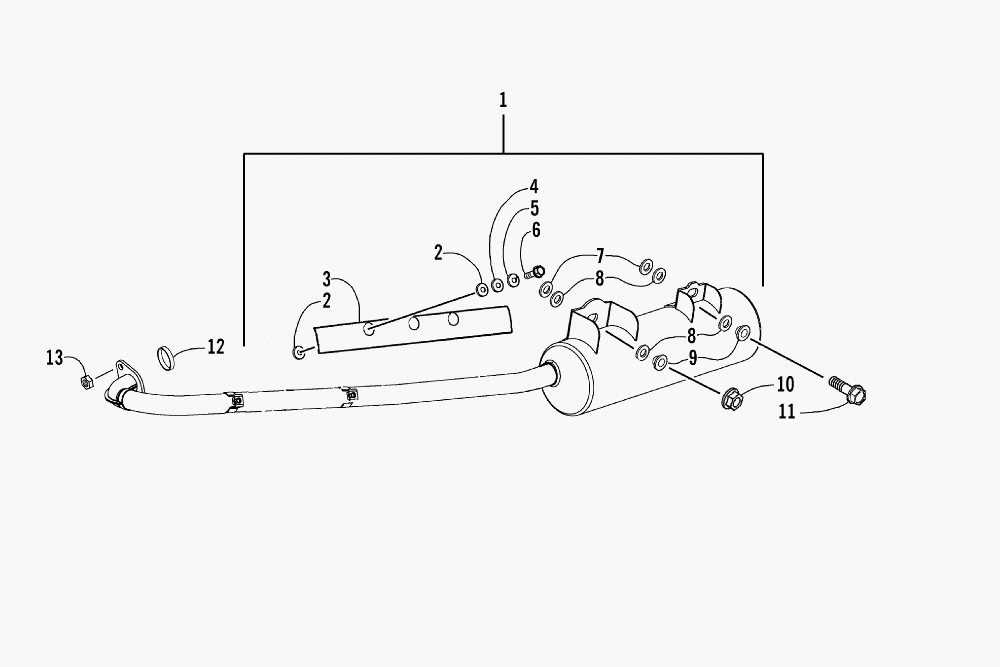

EXHAUST ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2006KUE2BUSG] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-729 MUFFLER ASSEMBLY (INC. 2-9)
    MUFFLER ASSEMBLY (INC. 2-9)
  • 2
    3303-727 ...PACKING, EXHAUST SHIELD
    ...PACKING, EXHAUST SHIELD
  • 3
    3303-730 ...SHIELD, EXHAUST
    ...SHIELD, EXHAUST
  • 4
    3304-134 ...WASHER
    ...WASHER
  • 5
    3304-140 ...WASHER, SPRING
    ...WASHER, SPRING
  • 6
    3303-381 ...BOLT, FLANGE
    ...BOLT, FLANGE
  • 7
    3303-726 ...BUSHING, RUBBER
    ...BUSHING, RUBBER
  • 8
    3303-728 ...PACKING, MUFFLER ASSEMBLY
    ...PACKING, MUFFLER ASSEMBLY
  • 9
    3303-731 ...COLLAR, MUFFLER ASSEMBLY
    ...COLLAR, MUFFLER ASSEMBLY
  • 10
    3303-332 NUT, FLANGE
    NUT, FLANGE
  • 11
    3304-175 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    3303-725 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 13
    3304-125 NUT, HEX
    NUT, HEX
