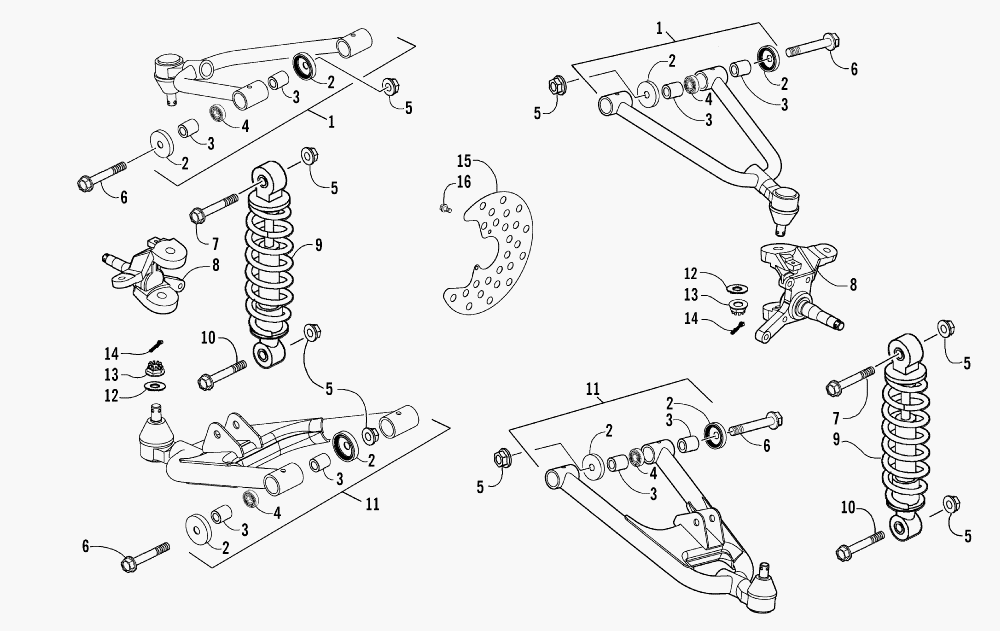

FRONT SUSPENSION ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2006KUE2BUSG] - 2006 года выпуска
-
№АртикулНазвание
-
13303-964 A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)
-
13303-967 A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)
-
23304-090 ...SEAL, OIL...SEAL, OIL
-
33304-689 ...BUSHING, SWING ARM...BUSHING, SWING ARM
-
43304-199 ...BEARING...BEARING
-
53303-265 NUTNUT
-
63304-663 BOLT, FLANGEBOLT, FLANGE
-
73303-376 BOLT, FLANGEBOLT, FLANGE
-
83303-930 KNUCKLE - ASSEMBLY - RIGHTKNUCKLE - ASSEMBLY - RIGHT
-
83303-932 KNUCKLE - ASSEMBLY - LEFTKNUCKLE - ASSEMBLY - LEFT
-
93303-941 CUSHION - ASSEMBLY - FRONTCUSHION - ASSEMBLY - FRONT
-
103304-595 BOLT, FLANGEBOLT, FLANGE
-
113303-966 A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)
-
113303-968 A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)
-
123303-335 WASHERWASHER
-
133303-328 NUT, CASTLENUT, CASTLE
-
143303-339 PIN, COTTERPIN, COTTER
-
153303-920 GUARD, BRAKE DISCGUARD, BRAKE DISC
-
163304-664 BOLT, FLANGEBOLT, FLANGE
