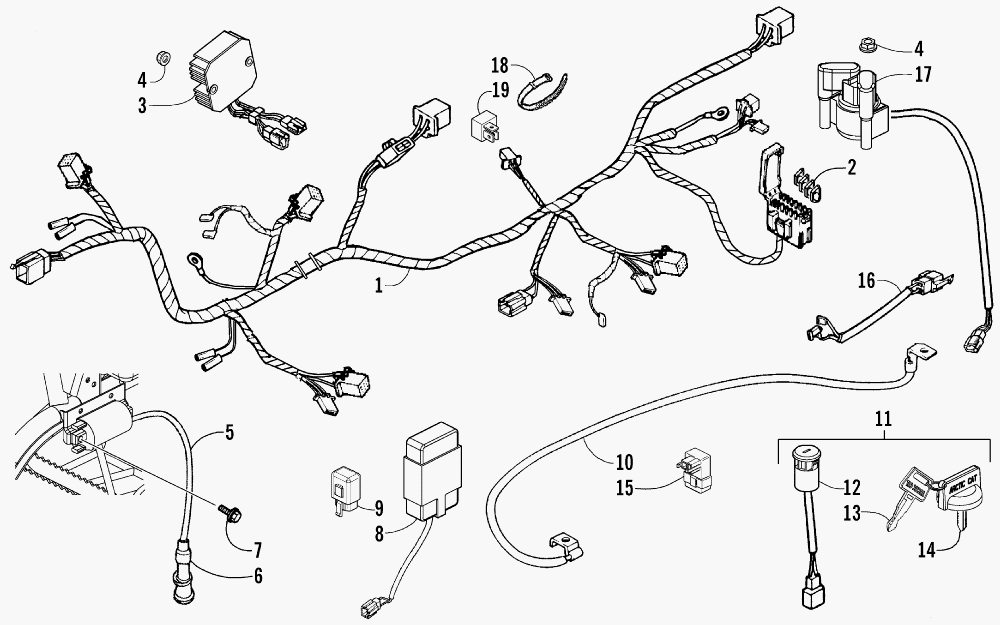

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2006KUE2BUSG] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-838 HARNESS, MAIN (INC. 2)
    HARNESS, MAIN (INC. 2)
  • 2
    3304-210 ...FUSE - 10A
    ...FUSE - 10A
  • 2
    3304-211 ...FUSE - 15A
    ...FUSE - 15A
  • 2
    3304-212 ...FUSE - 30A
    ...FUSE - 30A
  • 3
    3303-836 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 4
    3303-331 NUT
    NUT
  • 5
    3303-830 COIL, IGNITION (INC. 6)
    COIL, IGNITION (INC. 6)
  • 6
    3303-831 ...CAP, NOISE SUPPRESSION
    ...CAP, NOISE SUPPRESSION
  • 7
    3303-382 SCREW, CAP
    SCREW, CAP
  • 8
    3303-829 CDI UNIT
    CDI UNIT
  • 9
    3303-867 RELAY, LIGHTS
    RELAY, LIGHTS
  • 10
    3303-841 CABLE, BATTERY
    CABLE, BATTERY
  • 11
    3303-850 SWITCH, IGNITION - ASSEMBLY (INC. 12-14)
    SWITCH, IGNITION - ASSEMBLY (INC. 12-14)
  • 13
    3304-520 ...KEY, IGNITION - SET - RIGHT-SIDE CUT
    ...KEY, IGNITION - SET - RIGHT-SIDE CUT
  • 13
    3304-521 ...KEY, IGNITION - SET - LEFT-SIDE CUT
    ...KEY, IGNITION - SET - LEFT-SIDE CUT
  • 14
    3304-522 ...COVER, KEY - "ARCTIC CAT"
    ...COVER, KEY - "ARCTIC CAT"
  • 15
    3304-523 RELAY, LIGHTING CONTROL
    RELAY, LIGHTING CONTROL
  • 16
    3303-134 SUB-CORD
    SUB-CORD
  • 17
    3303-857 RELAY, STARTER
    RELAY, STARTER
  • 18
    3303-840 CABLE TIE
    CABLE TIE
  • 19
    3303-837 DIODE, START-IN-GEAR
    DIODE, START-IN-GEAR
