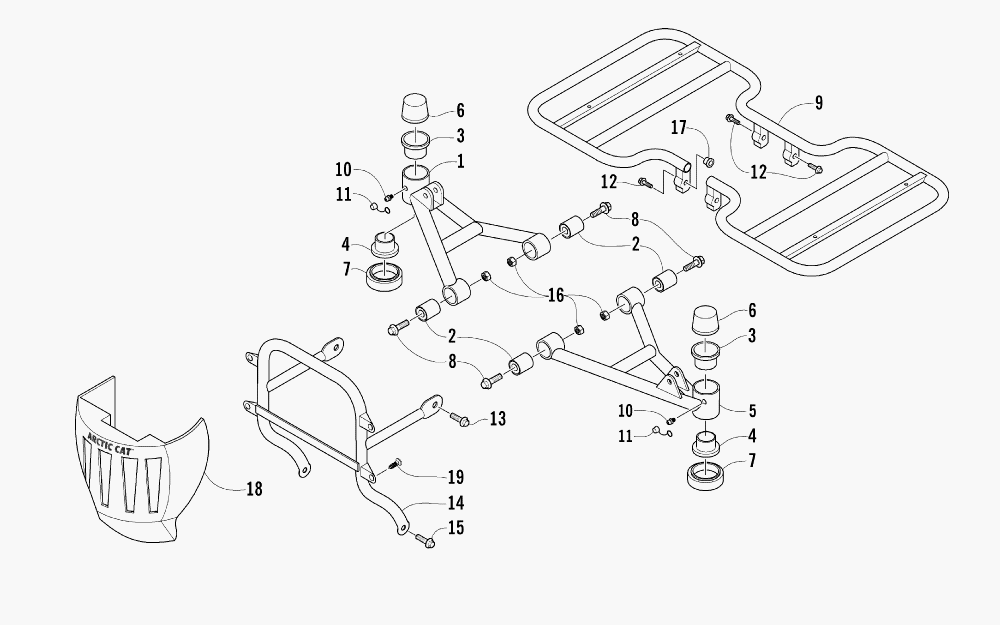

A-ARM- FLOOR PANEL- AND BUMPER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска`
-
№АртикулНазвание
-
13301-218 A-ARM, SUSPENSION - RIGHTA-ARM, SUSPENSION - RIGHT
-
23301-428 BUSHING, RUBBERBUSHING, RUBBER
-
33301-328 BUSHINGBUSHING
-
43301-219 BUSHINGBUSHING
-
53301-222 A-ARM, SUSPENSION - LEFTA-ARM, SUSPENSION - LEFT
-
63301-220 COVER, WATERPROOFCOVER, WATERPROOF
-
73301-580 COVER, DUSTPROOFCOVER, DUSTPROOF
-
83301-402 SCREW, CAPSCREW, CAP
-
93301-856 PANEL, FLOORPANEL, FLOOR
-
103301-444 FITTING, GREASEFITTING, GREASE
-
113301-445 CAP, GREASE FITTINGCAP, GREASE FITTING
-
123301-400 SCREW, CAPSCREW, CAP
-
133301-388 SCREW, CAPSCREW, CAP
-
143301-895 BUMPERBUMPER
-
153301-395 SCREW, CAPSCREW, CAP
-
163301-283 NUT, NYLONNUT, NYLON
-
173301-256 CAP, FLOOR PANEL - RUBBERCAP, FLOOR PANEL - RUBBER
-
183301-892 COVER, BUMPER (RED)COVER, BUMPER (RED)
-
183301-893 COVER, BUMPER (CAT GREEN)COVER, BUMPER (CAT GREEN)
-
193301-322 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
