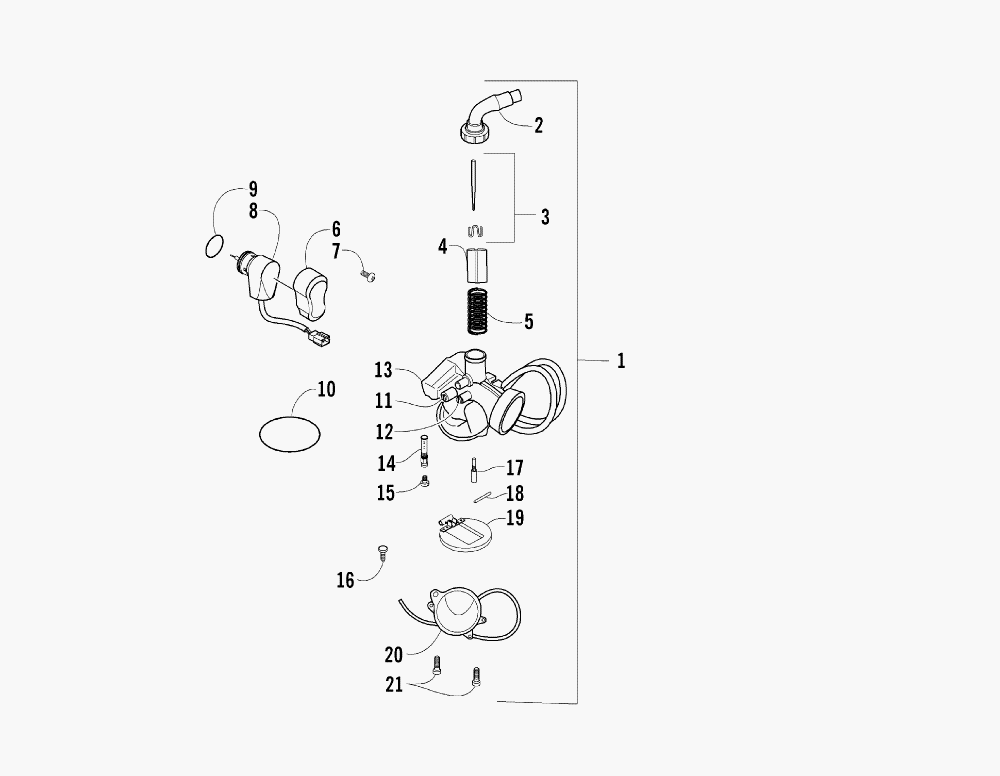

CARBURETOR ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-820 CARBURETOR ASSEMBLY (INC. 2-21)
    CARBURETOR ASSEMBLY (INC. 2-21)
  • 3
    3301-822 ...NEEDLE SET
    ...NEEDLE SET
  • 4
    3301-879 ...VALVE, THROTTLE
    ...VALVE, THROTTLE
  • 5
    3301-823 ...SPRING, THROTTLE VALVE
    ...SPRING, THROTTLE VALVE
  • 6
    3301-899 ...COVER, ELECTRIC CHOKE
    ...COVER, ELECTRIC CHOKE
  • 7
    3301-313 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 8
    3301-900 ...CHOKE, ELECTRIC
    ...CHOKE, ELECTRIC
  • 9
    3301-901 ...O-RING
    ...O-RING
  • 10
    3301-902 ...O-RING
    ...O-RING
  • 11
    3301-829 ...SCREW, AIR ADJUST - SET
    ...SCREW, AIR ADJUST - SET
  • 12
    3301-830 ...SCREW, THROTTLE - SET
    ...SCREW, THROTTLE - SET
  • 14
    3301-880 ...NEEDLE JET
    ...NEEDLE JET
  • 15
    3301-825 ...MAIN JET - 80
    ...MAIN JET - 80
  • 16
    3301-907 ...NEEDLE VALVE ASSEMBLY
    ...NEEDLE VALVE ASSEMBLY
  • 17
    3301-826 ...PILOT JET - 40
    ...PILOT JET - 40
  • 18
    3301-905 ...PIN, FLOAT
    ...PIN, FLOAT
  • 19
    3301-906 ...FLOAT
    ...FLOAT
  • 20
    3301-827 ...FLOAT CHAMBER
    ...FLOAT CHAMBER
  • 21
    3301-315 ...SCREW, MACHINE
    ...SCREW, MACHINE
