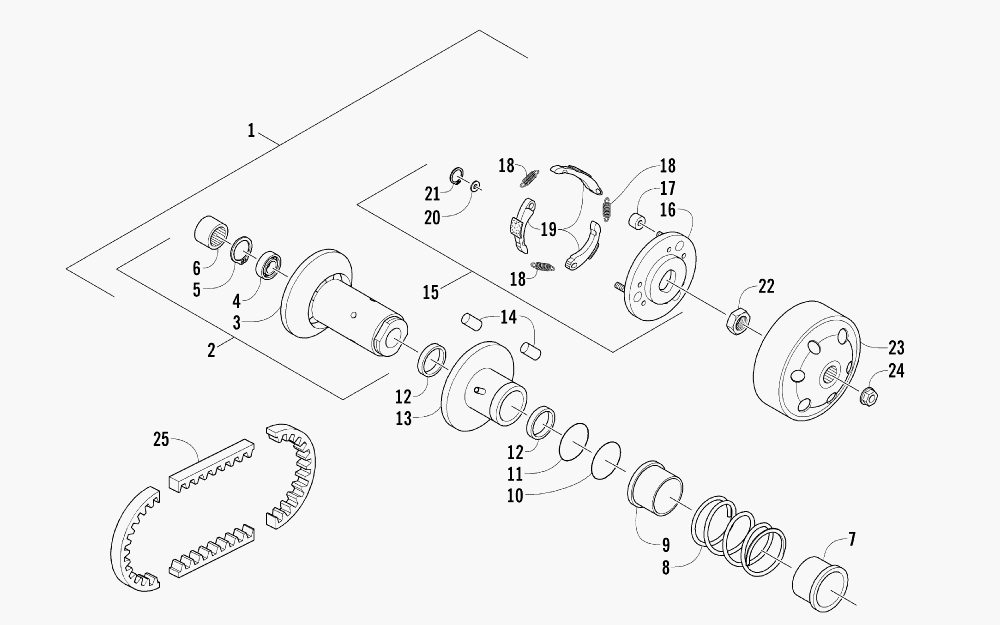

DRIVEN CLUTCH ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-736 DRIVEN CLUTCH ASSEMBLY (INC. 2-22)
    DRIVEN CLUTCH ASSEMBLY (INC. 2-22)
  • 2
    3301-737 ...SHEAVE, STATIONARY - ASSEMBLY (INC. 3-6)
    ...SHEAVE, STATIONARY - ASSEMBLY (INC. 3-6)
  • 3
    3301-738 ......SHEAVE, STATIONARY
    ......SHEAVE, STATIONARY
  • 4
    3301-417 ......BEARING
    ......BEARING
  • 5
    3301-380 ......CIRCLIP
    ......CIRCLIP
  • 6
    3301-420 ......BEARING
    ......BEARING
  • 7
    3301-739 ...COLLAR, SPRING
    ...COLLAR, SPRING
  • 8
    3301-740 ...SPRING, COMPRESSION
    ...SPRING, COMPRESSION
  • 9
    3301-741 ...SEAT, SPRING
    ...SEAT, SPRING
  • 10
    3301-742 ...O-RING
    ...O-RING
  • 11
    3301-743 ...O-RING
    ...O-RING
  • 12
    3301-744 ...SEAL, OIL
    ...SEAL, OIL
  • 13
    3301-745 ...SHEAVE, MOVABLE
    ...SHEAVE, MOVABLE
  • 14
    3301-746 ...PIN, GUIDE
    ...PIN, GUIDE
  • 15
    3301-747 ...PLATE, DRIVE - ASSEMBLY (INC. 16-21)
    ...PLATE, DRIVE - ASSEMBLY (INC. 16-21)
  • 16
    3301-748 ......PLATE, DRIVE
    ......PLATE, DRIVE
  • 17
    3301-749 ......DAMPER, CLUTCH - RUBBER
    ......DAMPER, CLUTCH - RUBBER
  • 18
    3301-750 ......SPRING, CLUTCH
    ......SPRING, CLUTCH
  • 19
    3301-751 ......WEIGHT, CLUTCH - SET
    ......WEIGHT, CLUTCH - SET
  • 20
    3301-752 ......WASHER
    ......WASHER
  • 21
    3301-753 ......CIRCLIP
    ......CIRCLIP
  • 22
    3301-754 ...NUT
    ...NUT
  • 23
    3301-755 COVER, CLUTCH
    COVER, CLUTCH
  • 24
    3301-331 NUT, LOCK
    NUT, LOCK
  • 25
    3301-756 BELT, DRIVE
    BELT, DRIVE
