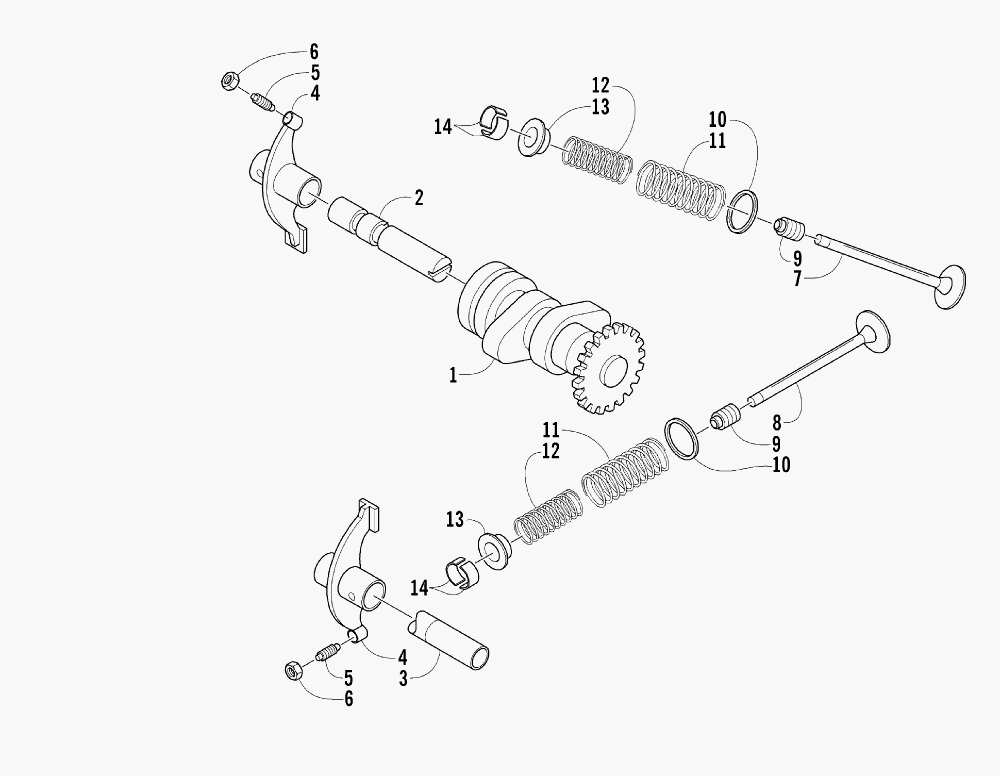

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-647 CAMSHAFTCAMSHAFT
-
23301-648 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
33301-649 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
43301-650 ARM, ROCKERARM, ROCKER
-
53301-651 SCREW, GAP ADJUSTSCREW, GAP ADJUST
-
63301-652 NUT, GAP ADJUSTNUT, GAP ADJUST
-
73301-653 VALVE, INTAKEVALVE, INTAKE
-
83301-654 VALVE, EXHAUSTVALVE, EXHAUST
-
93301-655 SEAL, VALVESEAL, VALVE
-
103301-656 SEAT, SPRINGSEAT, SPRING
-
113301-657 SPRING, OUTERSPRING, OUTER
-
123301-658 SPRING, INNERSPRING, INNER
-
133301-659 RETAINER, SPRINGRETAINER, SPRING
-
143301-660 COTTER, VALVECOTTER, VALVE
