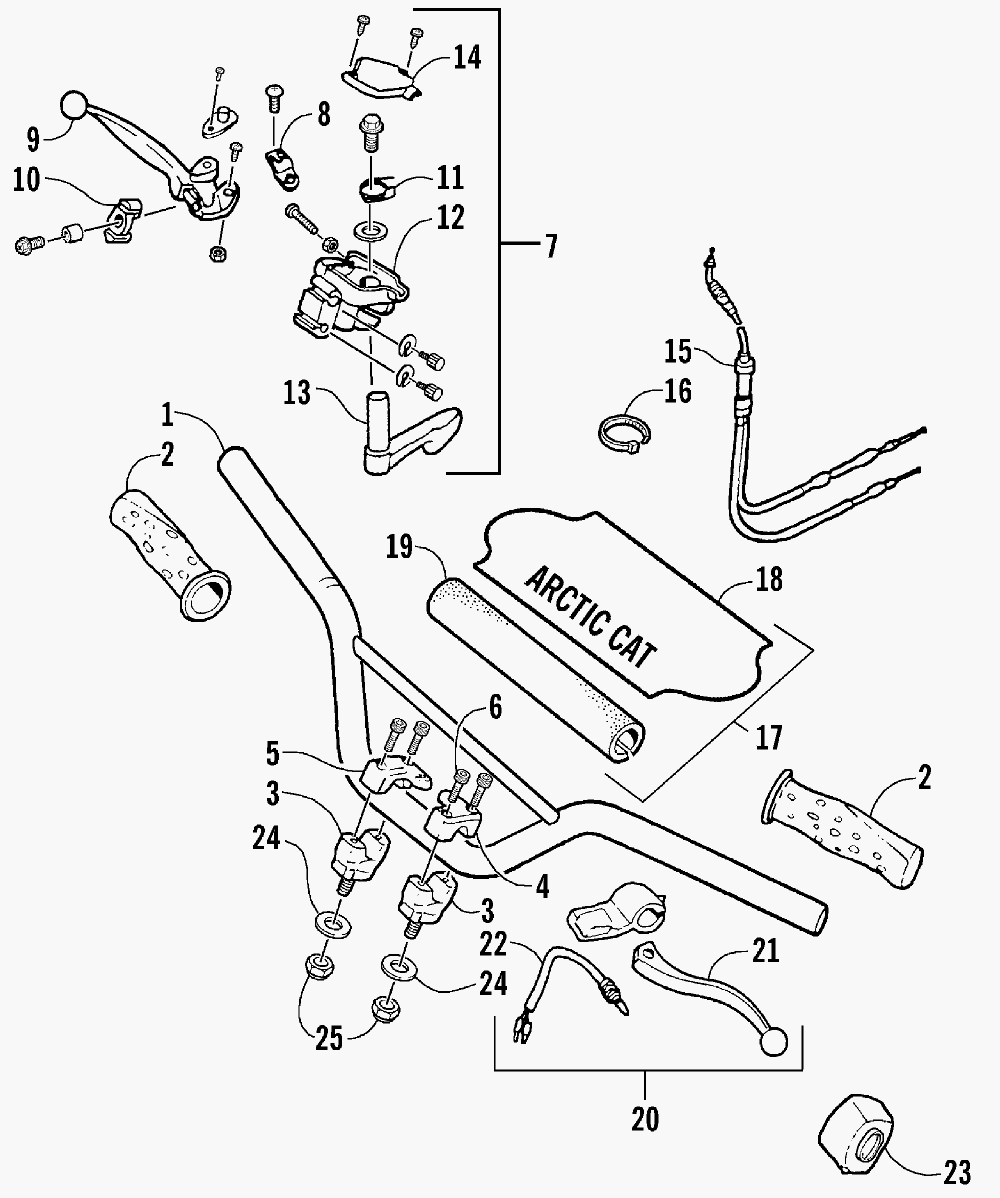

HANDLEBAR ASSEMBLY для Arctic Cat 90 Y-12 YOUTH UTILITY (GREEN) [A2003ATB2BUSG] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-230 HANDLEBAR
    HANDLEBAR
  • 2
    3301-234 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 3
    3301-231 CLAMP, HANDLEBAR - BOTTOM
    CLAMP, HANDLEBAR - BOTTOM
  • 4
    3301-232 CLAMP, HANDLEBAR - LEFT
    CLAMP, HANDLEBAR - LEFT
  • 5
    3301-233 CLAMP, HANDLEBAR - RIGHT
    CLAMP, HANDLEBAR - RIGHT
  • 6
    3301-290 SCREW, CAP
    SCREW, CAP
  • 7
    3301-235 LEVER ASSEMBLY - RIGHT (INC. 8-13)
    LEVER ASSEMBLY - RIGHT (INC. 8-13)
  • 8
    3301-239 ... BRACKET, THROTTLE CABLE
    ... BRACKET, THROTTLE CABLE
  • 9
    3301-240 ... LEVER, BRAKE - RIGHT
    ... LEVER, BRAKE - RIGHT
  • 10
    3301-238 ... BRACKET, CABLE
    ... BRACKET, CABLE
  • 11
    3301-244 ... SPRING, THROTTLE LEVER
    ... SPRING, THROTTLE LEVER
  • 12
    3301-237 ... BRACKET, LEVER
    ... BRACKET, LEVER
  • 13
    3301-243 ... LEVER, THROTTLE
    ... LEVER, THROTTLE
  • 14
    3301-236 COVER, LEVER BODY
    COVER, LEVER BODY
  • 15
    3301-085 CABLE, THROTTLE
    CABLE, THROTTLE
  • 16
    3301-465 CABLE TIE
    CABLE TIE
  • 17
    3301-457 PAD, HANDLEBAR - ASSEMBLY (INC. 18-19)
    PAD, HANDLEBAR - ASSEMBLY (INC. 18-19)
  • 18
    3301-458 ... COVER, PAD
    ... COVER, PAD
  • 19
    3301-459 ... PAD, HANDLEBAR
    ... PAD, HANDLEBAR
  • 20
    3301-242 LEVER ASSEMBLY - LEFT (INC. 21-22)
    LEVER ASSEMBLY - LEFT (INC. 21-22)
  • 21
    3301-241 ... LEVER, BRAKE - LEFT
    ... LEVER, BRAKE - LEFT
  • 22
    3301-153 ... HARNESS, BRAKE SWITCH
    ... HARNESS, BRAKE SWITCH
  • 23
    3301-152 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 24
    3301-486 WASHER
    WASHER
  • 25
    3301-283 NUT, NYLON
    NUT, NYLON
