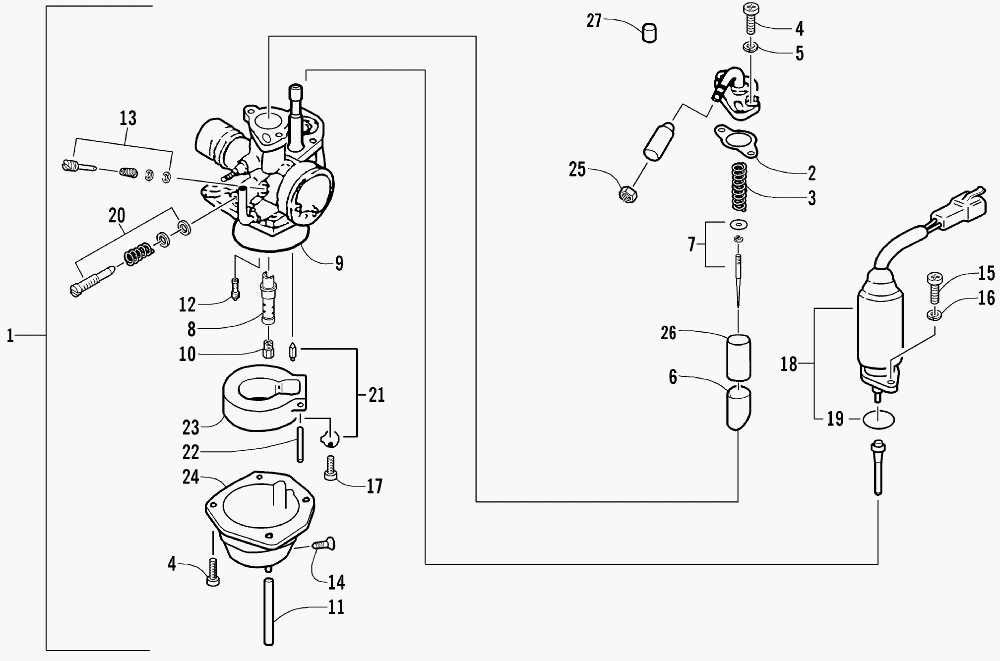

CARBURETOR ASSEMBLY для Arctic Cat 90 Y-12 YOUTH UTILITY (GREEN) [A2003ATB2BUSG] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-038 CARBURETOR ASSEMBLY (INC. 2-26)
    CARBURETOR ASSEMBLY (INC. 2-26)
  • 2
    3301-039 ... GASKET, CARBURETOR
    ... GASKET, CARBURETOR
  • 3
    3301-040 ... SPRING, THROTTLE VALVE
    ... SPRING, THROTTLE VALVE
  • 4
    3301-315 ... SCREW, MACHINE
    ... SCREW, MACHINE
  • 5
    3301-359 ... WASHER, SPRING
    ... WASHER, SPRING
  • 6
    3301-041 ... VALVE, THROTTLE
    ... VALVE, THROTTLE
  • 7
    3301-042 ... SET, JET NEEDLE
    ... SET, JET NEEDLE
  • 8
    3301-043 ... NEEDLE JET
    ... NEEDLE JET
  • 9
    3301-044 ... SEAL, FLOAT CHAMBER
    ... SEAL, FLOAT CHAMBER
  • 10
    3301-046 ... MAIN JET
    ... MAIN JET
  • 11
    3301-047 ... TUBE, OVERFLOW
    ... TUBE, OVERFLOW
  • 12
    3301-048 ... JET, PILOT
    ... JET, PILOT
  • 13
    3301-052 ... SCREW, AIR ADJUSTMENT
    ... SCREW, AIR ADJUSTMENT
  • 14
    3301-049 ... PLUG, DRAIN
    ... PLUG, DRAIN
  • 15
    3301-313 ... SCREW, MACHINE
    ... SCREW, MACHINE
  • 16
    3301-358 ... WASHER, SPRING
    ... WASHER, SPRING
  • 17
    3301-312 ... SCREW, MACHINE
    ... SCREW, MACHINE
  • 18
    3301-066 ... CHOKE ASSEMBLY - ELECTRIC (INC. 19)
    ... CHOKE ASSEMBLY - ELECTRIC (INC. 19)
  • 19
    3301-299 ...... O-RING
    ...... O-RING
  • 20
    3301-051 ... SCREW, THROTTLE
    ... SCREW, THROTTLE
  • 21
    3301-053 ... NEEDLE VALVE ASSEMBLY
    ... NEEDLE VALVE ASSEMBLY
  • 22
    3301-055 ... PIN, FLOAT
    ... PIN, FLOAT
  • 23
    3301-054 ... FLOAT
    ... FLOAT
  • 24
    3301-045 ... CHAMBER, FLOAT
    ... CHAMBER, FLOAT
  • 25
    3301-050 ... NUT, CABLE ADJUST
    ... NUT, CABLE ADJUST
  • 26
    3301-056 ... RPM LIMITER, CARBURETOR
    ... RPM LIMITER, CARBURETOR
  • 27
    3301-521 PLUG, PURGE HOLE
    PLUG, PURGE HOLE
