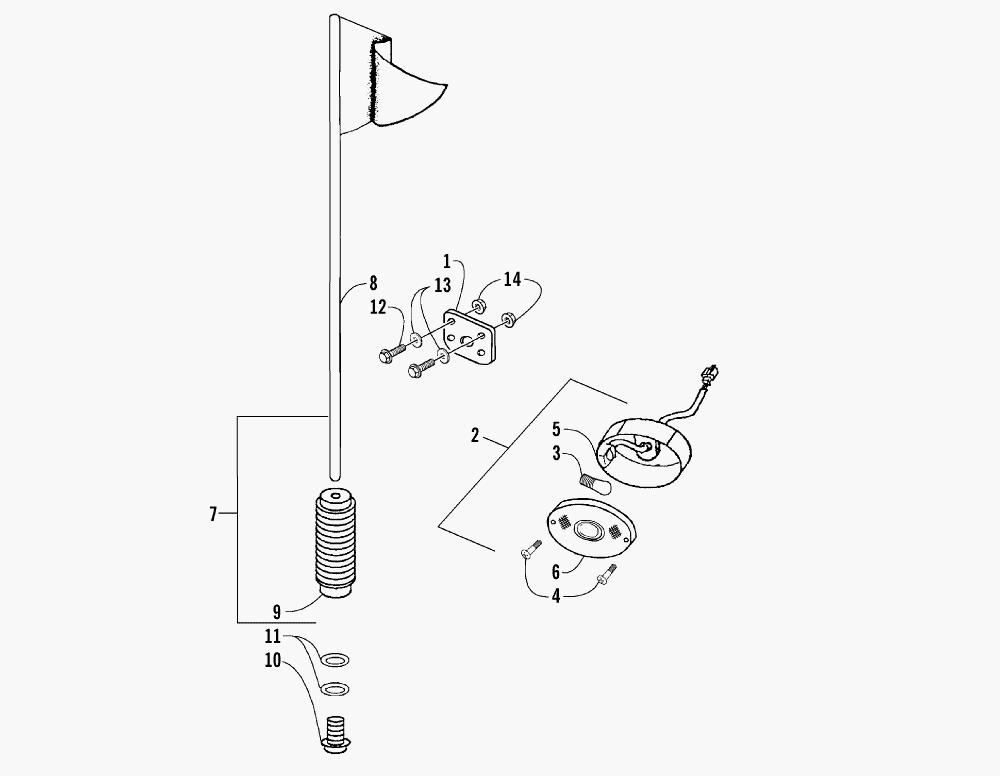

BRAKELIGHT ASSEMBLY для Arctic Cat 90 Y-12 YOUTH UTILITY (GREEN) [A2003ATB2BUSG] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-213 BRACKET, BRAKELIGHT
    BRACKET, BRAKELIGHT
  • 2
    3301-148 BRAKELIGHT ASSEMBLY (INC. 3-6)
    BRAKELIGHT ASSEMBLY (INC. 3-6)
  • 3
    3301-150 ... BULB, BRAKELIGHT
    ... BULB, BRAKELIGHT
  • 4
    3301-314 ... SCREW, MACHINE
    ... SCREW, MACHINE
  • 5
    3301-453 ... BASE, BRAKELIGHT
    ... BASE, BRAKELIGHT
  • 6
    3301-452 ... LENS, BRAKELIGHT
    ... LENS, BRAKELIGHT
  • 7
    3301-274 FLAG/SPRING ASSEMBLY (INC. 8-9)
    FLAG/SPRING ASSEMBLY (INC. 8-9)
  • 8
    3301-464 ... FLAG
    ... FLAG
  • 9
    3301-273 ... SPRING, FLAG
    ... SPRING, FLAG
  • 10
    3301-490 SCREW, CAP
    SCREW, CAP
  • 11
    3301-472 WASHER
    WASHER
  • 12
    3301-386 SCREW, CAP
    SCREW, CAP
  • 13
    3301-338 WASHER
    WASHER
  • 14
    3301-327 NUT, FLANGE
    NUT, FLANGE
