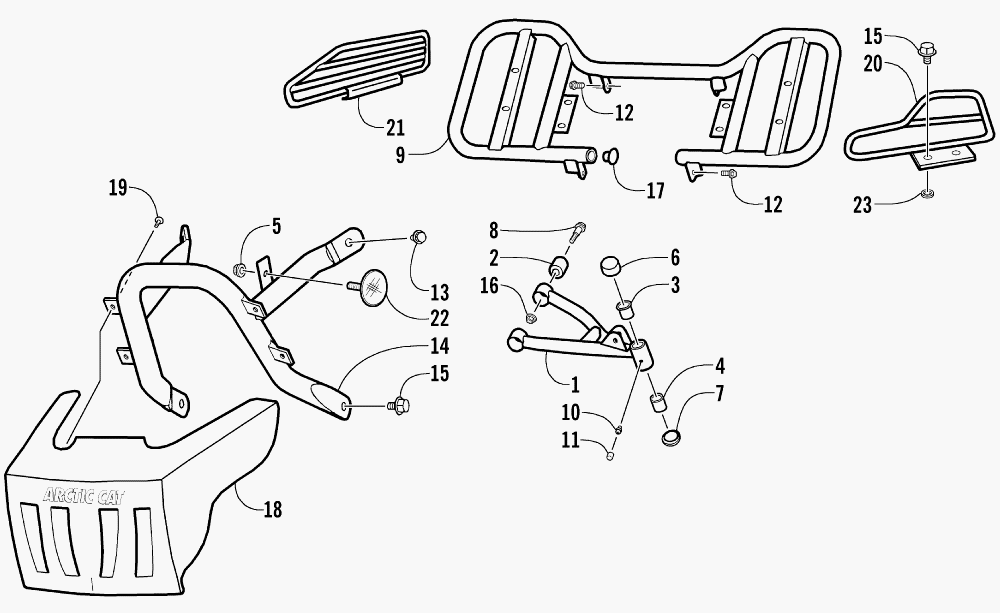

A-ARM- FLOOR PANEL- AND BUMPER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH UTILITY (GREEN) [A2003ATB2BUSG] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-222 A-ARM, SUSPENSION - LEFT
    A-ARM, SUSPENSION - LEFT
  • 1
    3301-218 A-ARM, SUSPENSION - RIGHT
    A-ARM, SUSPENSION - RIGHT
  • 2
    3301-428 BUSHING, RUBBER
    BUSHING, RUBBER
  • 3
    3301-328 BUSHING
    BUSHING
  • 4
    3301-219 BUSHING
    BUSHING
  • 5
    3301-327 NUT, FLANGE
    NUT, FLANGE
  • 6
    3301-220 COVER, WATERPROOF
    COVER, WATERPROOF
  • 7
    3301-221 COVER, DUSTPROOF
    COVER, DUSTPROOF
  • 8
    3301-402 SCREW, CAP
    SCREW, CAP
  • 9
    3301-251 PANEL, FLOOR
    PANEL, FLOOR
  • 10
    3301-444 FITTING, GREASE
    FITTING, GREASE
  • 11
    3301-445 CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 12
    3301-400 SCREW, CAP
    SCREW, CAP
  • 13
    3301-388 SCREW, CAP
    SCREW, CAP
  • 14
    3301-207 BUMPER
    BUMPER
  • 15
    3301-395 SCREW, CAP
    SCREW, CAP
  • 16
    3301-283 NUT, NYLON
    NUT, NYLON
  • 17
    3301-256 CAP, FLOOR PANEL - RUBBER
    CAP, FLOOR PANEL - RUBBER
  • 18
    3301-208 COVER, BUMPER
    COVER, BUMPER
  • 19
    3301-322 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    3301-254 GUARD, FLOOR PANEL - LEFT
    GUARD, FLOOR PANEL - LEFT
  • 21
    3301-255 GUARD, FLOOR PANEL - RIGHT
    GUARD, FLOOR PANEL - RIGHT
  • 22
    3301-455 REFLECTOR - AMBER
    REFLECTOR - AMBER
  • 23
    3301-476 WASHER, SPRING
    WASHER, SPRING
