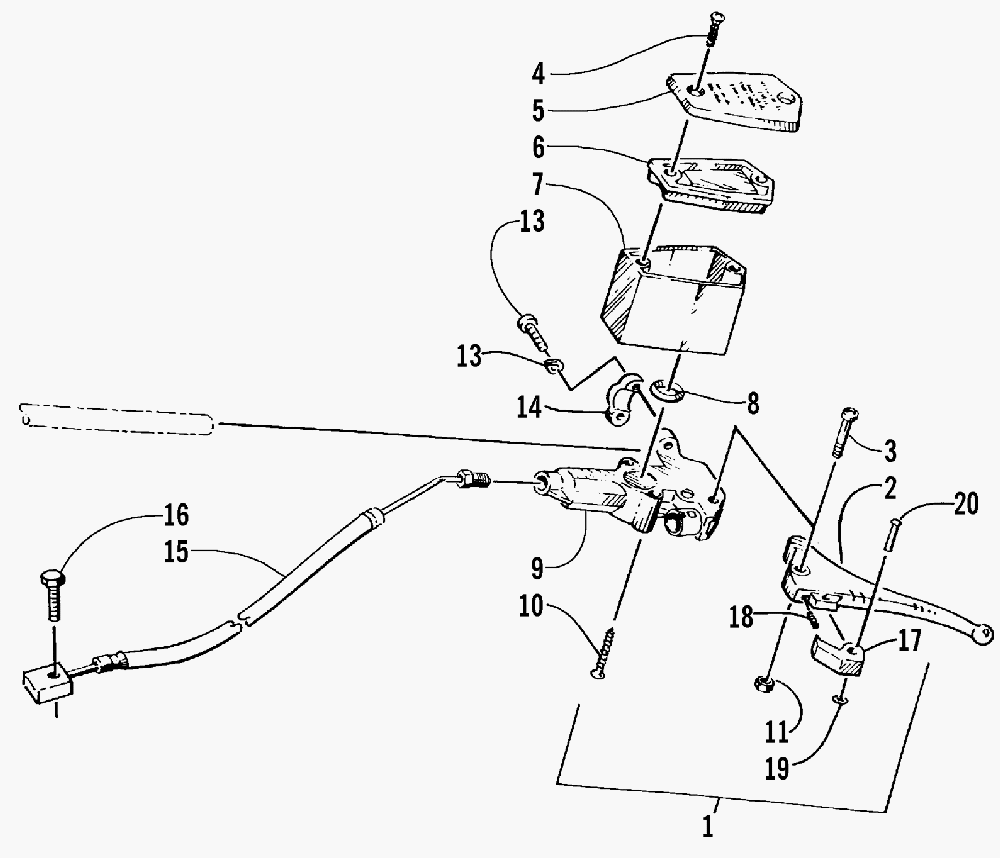

HYDRAULIC HAND BRAKE ASSEMBLY (VIN # 320800-323999) для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
10502-132 LEVER, BRAKE - ASSEMBLY (INC. 2-14 AND 17-20)LEVER, BRAKE - ASSEMBLY (INC. 2-14 AND 17-20)
-
20402-423 ...LEVER, BRAKE...LEVER, BRAKE
-
30623-430 ...BOLT, LEVER MOUNTING...BOLT, LEVER MOUNTING
-
40623-506 ...SCREW, COVER - RESERVOIR...SCREW, COVER - RESERVOIR
-
50602-742 ...COVER, RESERVOIR...COVER, RESERVOIR
-
60602-741 ...GASKET, RESERVOIR COVER...GASKET, RESERVOIR COVER
-
70602-740 ...RESERVOIR, HYDRAULIC BRAKE...RESERVOIR, HYDRAULIC BRAKE
-
80602-587 ...O-RING, RESERVOIR...O-RING, RESERVOIR
-
100623-432 ...SCREW, RESERVOIR MOUNT...SCREW, RESERVOIR MOUNT
-
110623-056 ...NUT, LOCK...NUT, LOCK
-
128052-212 ...WASHER, LOCK - INTERNAL TOOTH...WASHER, LOCK - INTERNAL TOOTH
-
130623-613 ...SCREW, CLAMP...SCREW, CLAMP
-
140602-907 ...CLAMP...CLAMP
-
150402-050 HOSE, MASTER CYLINDERHOSE, MASTER CYLINDER
-
168476-625 SCREW, CAPSCREW, CAP
-
170402-240 LEVER, BRAKE - LOCKLEVER, BRAKE - LOCK
-
180402-245 SPRINGSPRING
-
190423-090 NUT, PRESSNUT, PRESS
-
200402-246 PINPIN
