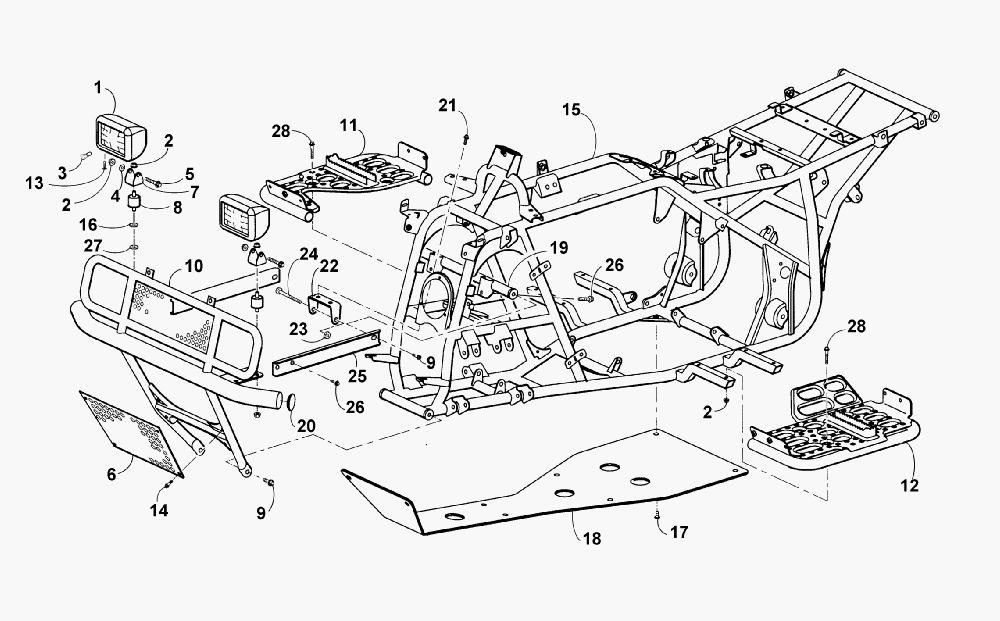

FRAME AND RELATED PARTS для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
10409-001 HEADLIGHT ASSEMBLY (INC. 3 AND 13)HEADLIGHT ASSEMBLY (INC. 3 AND 13)
-
28424-802 NUT, FLANGENUT, FLANGE
-
30409-005 BULB, HEADLIGHTBULB, HEADLIGHT
-
48053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
58408-850 SCREW, CAPSCREW, CAP
-
60406-175 SCREEN, BUMPER - LOWERSCREEN, BUMPER - LOWER
-
70406-261 YOKE, HEADLIGHTYOKE, HEADLIGHT
-
80406-262 MOUNT, HEADLIGHTMOUNT, HEADLIGHT
-
98409-020 SCREW, CAPSCREW, CAP
-
100506-294 GUARD, BRUSHGUARD, BRUSH
-
110506-338 FOOTREST - RIGHTFOOTREST - RIGHT
-
120506-339 FOOTREST - LEFTFOOTREST - LEFT
-
130123-950 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
148408-816 SCREW, CAPSCREW, CAP
-
150506-333 FRAME, MAINFRAME, MAIN
-
163423-204 WASHERWASHER
-
170423-101 SCREW, BODYSCREW, BODY
-
180406-516 PANEL, BELLYPANEL, BELLY
-
190506-079 TUBE, CROSS - BUMPERTUBE, CROSS - BUMPER
-
200406-130 CAP, BUMPERCAP, BUMPER
-
218408-820 SCREW, CAPSCREW, CAP
-
220506-149 BRACKET, DIFFERENTIALBRACKET, DIFFERENTIAL
-
238428-002 NUT, LOCKNUT, LOCK
-
243423-010 SCREW, CAPSCREW, CAP
-
250506-297 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
268408-812 SCREW, CAPSCREW, CAP
-
270623-710 WASHER, LOCK - HIGH COLLARWASHER, LOCK - HIGH COLLAR
-
280423-162 SCREW, CAPSCREW, CAP
