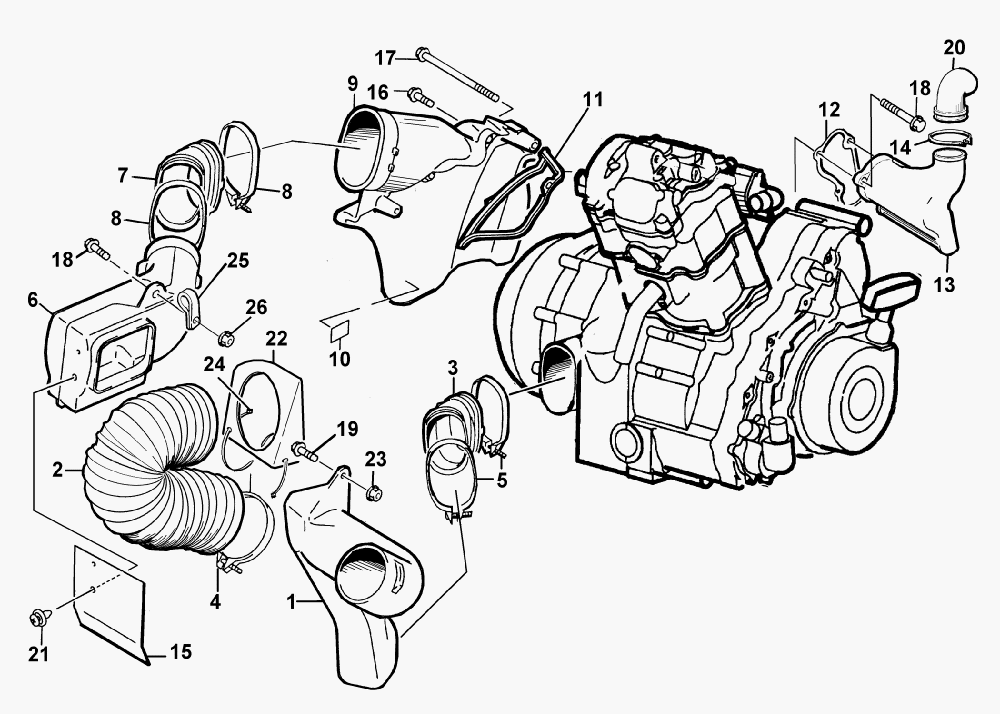

CASE/BELT COOLING ASSEMBLY для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3402-447 DUCT, BELT COOLING - FRONT
    DUCT, BELT COOLING - FRONT
  • 2
    0410-033 DUCT, BELT COOLING - FRONT
    DUCT, BELT COOLING - FRONT
  • 3
    3402-448 TUBE, CLUTCH COOLING
    TUBE, CLUTCH COOLING
  • 4
    0423-018 CLAMP, DUCT - FRONT
    CLAMP, DUCT - FRONT
  • 5
    3402-449 CLAMP, DUCT - FRONT
    CLAMP, DUCT - FRONT
  • 6
    3402-450 DUCT, BELT COOLING - CENTER
    DUCT, BELT COOLING - CENTER
  • 7
    3402-451 CONNECTOR, COOLING DUCT - CENTER
    CONNECTOR, COOLING DUCT - CENTER
  • 8
    3402-448 CLAMP, DUCT - CENTER
    CLAMP, DUCT - CENTER
  • 9
    3402-452 CONNECTOR, DUCT - CENTER
    CONNECTOR, DUCT - CENTER
  • 10
    3402-453 CUSHION, DUCT CONNECTOR - CENTER
    CUSHION, DUCT CONNECTOR - CENTER
  • 11
    3402-454 GASKET, DUCT CONNECTOR - CENTER
    GASKET, DUCT CONNECTOR - CENTER
  • 12
    0410-034 GASKET, DUCT CONNECTOR - REAR
    GASKET, DUCT CONNECTOR - REAR
  • 13
    0510-591 PLENUM, CLUTCH
    PLENUM, CLUTCH
  • 14
    3402-455 CLAMP, CLUTCH PLENUM
    CLAMP, CLUTCH PLENUM
  • 15
    0506-402 GUARD, DUCT
    GUARD, DUCT
  • 16
    3004-341 BOLT, DUCT CONNECTOR - CENTER
    BOLT, DUCT CONNECTOR - CENTER
  • 17
    3423-393 BOLT, DUCT CONNECTOR - CENTER
    BOLT, DUCT CONNECTOR - CENTER
  • 18
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    8408-820 SCREW, CAP
    SCREW, CAP
  • 20
    0410-032 BOOT, CLUTCH PLENUM
    BOOT, CLUTCH PLENUM
  • 21
    3423-423 CLIP, RETAINING - DUCT GUARD
    CLIP, RETAINING - DUCT GUARD
  • 22
    0406-560 RETAINER, COOLING HOSE
    RETAINER, COOLING HOSE
  • 23
    8424-802 NUT, FLANGE
    NUT, FLANGE
  • 24
    0123-788 CABLE TIE - 7 IN.
    CABLE TIE - 7 IN.
  • 25
    0423-167 CLAMP, BRAKELINE
    CLAMP, BRAKELINE
  • 26
    8424-602 NUT, FLANGE
    NUT, FLANGE
