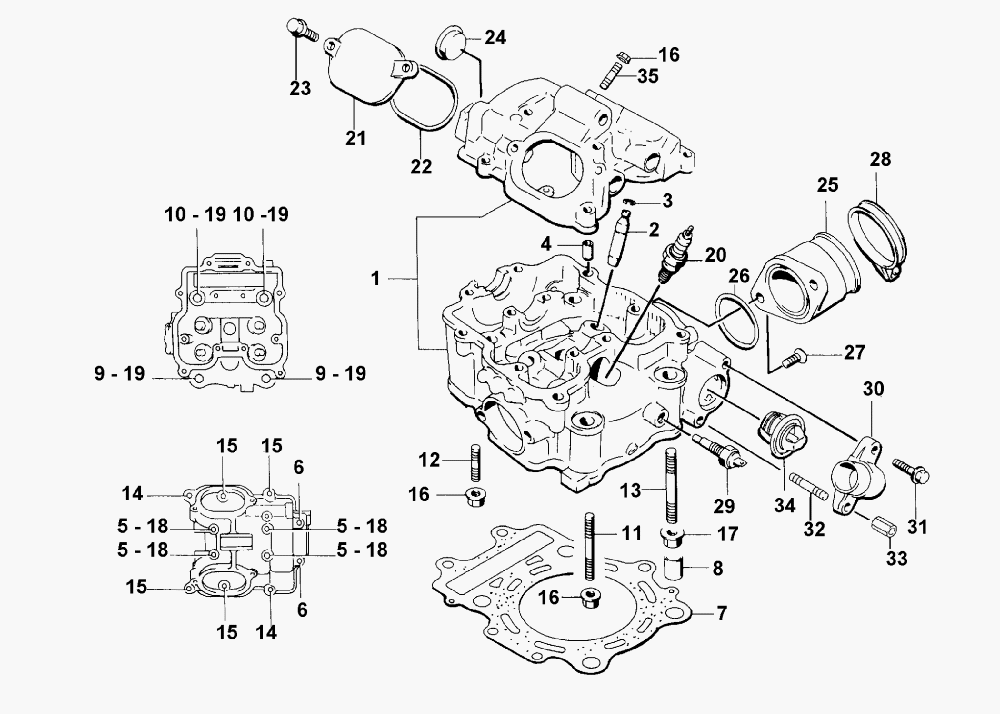

CYLINDER HEAD ASSEMBLY для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
13402-361 HEAD, CYLINDER - ASSEMBLY (INC. 2-6)HEAD, CYLINDER - ASSEMBLY (INC. 2-6)
-
23402-099 ...GUIDE, VALVE...GUIDE, VALVE
-
33423-068 ...CIRCLIP...CIRCLIP
-
43423-043 ...PIN, DOWEL...PIN, DOWEL
-
53423-006 ...SCREW, CAP...SCREW, CAP
-
63008-376 ...SCREW, CAP...SCREW, CAP
-
73402-362 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
83423-088 PIN, DOWELPIN, DOWEL
-
93423-015 SCREW, CAPSCREW, CAP
-
103423-016 SCREW, CAPSCREW, CAP
-
113423-089 BOLT, STUDBOLT, STUD
-
123423-087 BOLT, STUDBOLT, STUD
-
133423-203 BOLT, STUDBOLT, STUD
-
143423-007 SCREW, CAPSCREW, CAP
-
153004-376 SCREW, CAPSCREW, CAP
-
163004-488 NUTNUT
-
173004-326 NUTNUT
-
183003-290 GASKETGASKET
-
193402-010 GASKET, HEAD NUTGASKET, HEAD NUT
-
200217-632 SPARK PLUG (NGK CR6E)SPARK PLUG (NGK CR6E)
-
213402-100 CAP, INSPECTIONCAP, INSPECTION
-
223402-101 O-RINGO-RING
-
233004-341 SCREW, CAPSCREW, CAP
-
243402-035 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
253402-435 PIPE,INTAKE NO.1PIPE,INTAKE NO.1
-
253402-358 PIPE,INTAKE NO.2(RBR)PIPE,INTAKE NO.2(RBR)
-
263423-353 O-RINGO-RING
-
273423-347 SCREW, CAPSCREW, CAP
-
283402-086 CLAMPCLAMP
-
293530-030 SWITCH, WATER TEMPERATURE - ASSEMBLYSWITCH, WATER TEMPERATURE - ASSEMBLY
-
303413-004 COVER, THERMOSTATCOVER, THERMOSTAT
-
313004-341 SCREW, CAPSCREW, CAP
-
323423-354 STUD, THERMOSTAT COVERSTUD, THERMOSTAT COVER
-
333423-349 NUTNUT
-
343413-012 THERMOSTATTHERMOSTAT
-
353423-383 BOLT, STUDBOLT, STUD
-
363402-048 PLUG, FROSTPLUG, FROST
