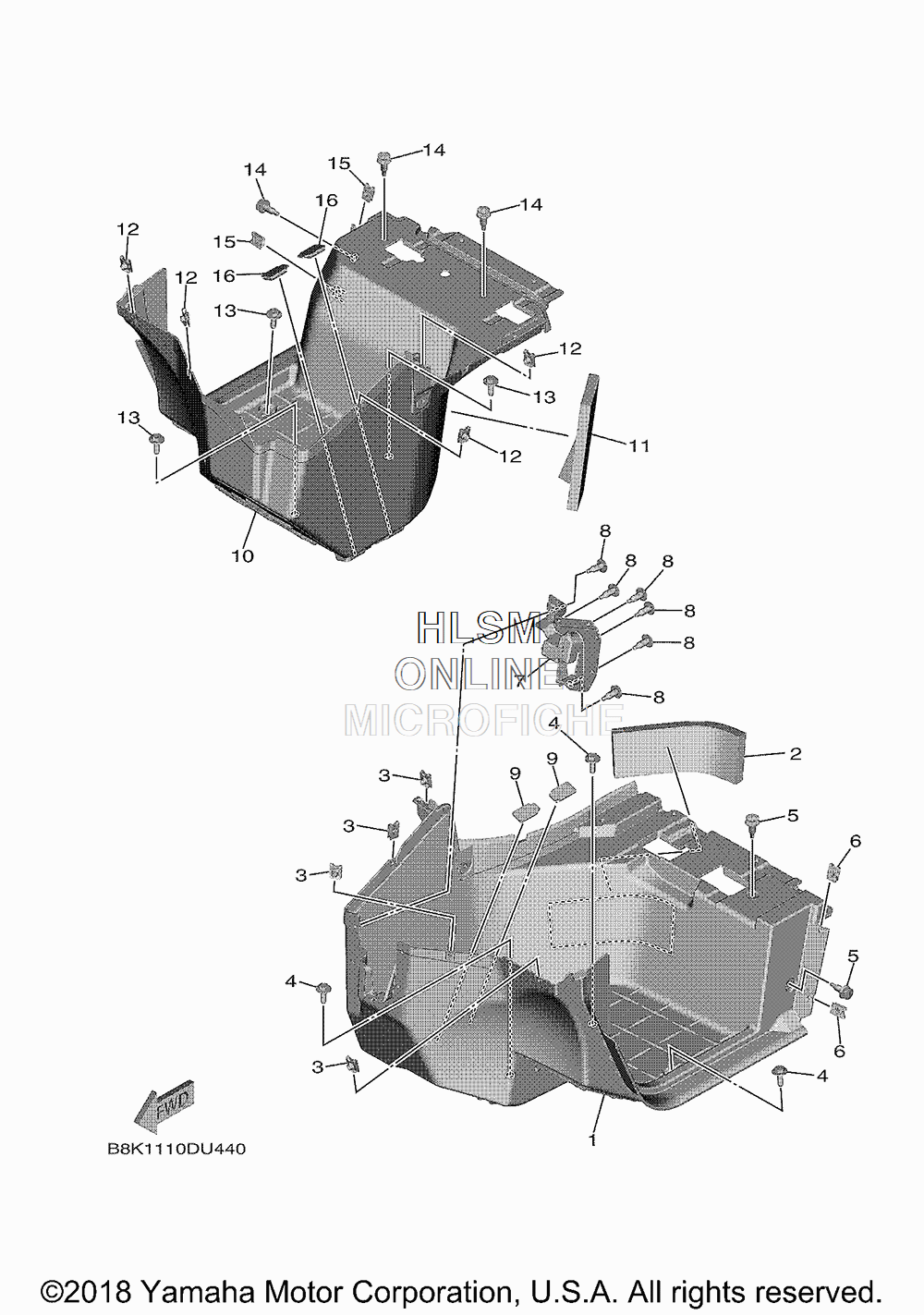

FOOTREST W/ BRAKE PEDAL для Yamaha WOLVERINE X2 - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F7411-00-00 FOOTREST 1FOOTREST 1
-
2B8K-F174T-00-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
-
390183-060A6-00 NUT, SPRINGNUT, SPRING
-
4JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
590269-07805-00 RIVETRIVET
-
690183-060A6-00 NUT, SPRINGNUT, SPRING
-
7BG4-F7286-00-00 COVER, DUSTCOVER, DUST
-
890269-07805-00 RIVETRIVET
-
9BG4-F312G-00-00 PLUG, HOLEPLUG, HOLE
-
10BG4-F7421-01-00 FOOTREST 2FOOTREST 2
-
11B8K-F174T-00-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
-
1290183-060A6-00 NUT, SPRINGNUT, SPRING
-
13JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1490269-07805-00 RIVETRIVET
-
1590183-060A6-00 NUT, SPRINGNUT, SPRING
-
16BG4-F312G-00-00 PLUG, HOLEPLUG, HOLE
