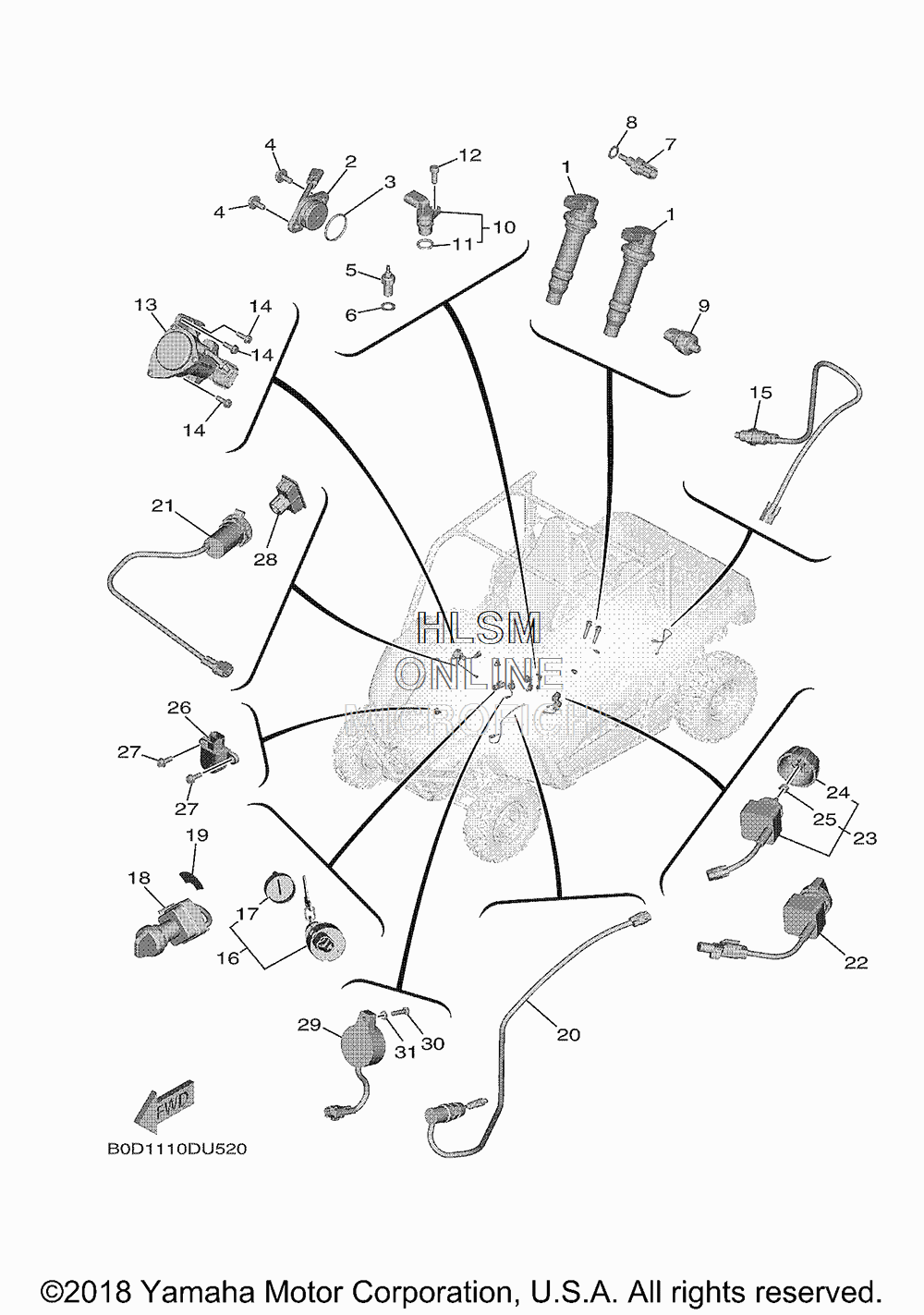

ELECTRICAL для Yamaha WOLVERINE X2 - 2019 года выпуска`
-
№АртикулНазвание
-
11WS-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2BG4-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
393210-29196-00 O-RINGO-RING
-
490119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
74P9-83591-00-00 THERMO UNITTHERMO UNIT
-
890430-10004-00 GASKETGASKET
-
98FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
101TP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
114D9-81168-00-00 ...O-RING...O-RING
-
1291312-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
13BG4-8A410-00-00 SENSOR UNITSENSOR UNIT
-
14JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
151WS-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
165UG-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
175UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
18BG4-8250A-00-00 KEY ASSYKEY ASSY
-
19BG4-H2108-01-00 LABELLABEL
-
2013S-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
211HP-H254B-10-00 TERMINAL COMP.TERMINAL COMP.
-
22BG4-82526-01-00 SWITCH, LAMPSWITCH, LAMP
-
231XD-87280-00-00 SWITCH, SELECTSWITCH, SELECT
-
241XD-87285-00-00 ...KNOB, SELECT SWITCH...KNOB, SELECT SWITCH
-
251XD-87288-00-00 ...SPRING...SPRING
-
263B4-82576-10-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
27JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
281XD-H3530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
292MB-83383-00-00 BUZZERBUZZER
-
3097002-05020-00 BOLTBOLT
-
3192902-05600-00 WASHER, PLATEWASHER, PLATE
