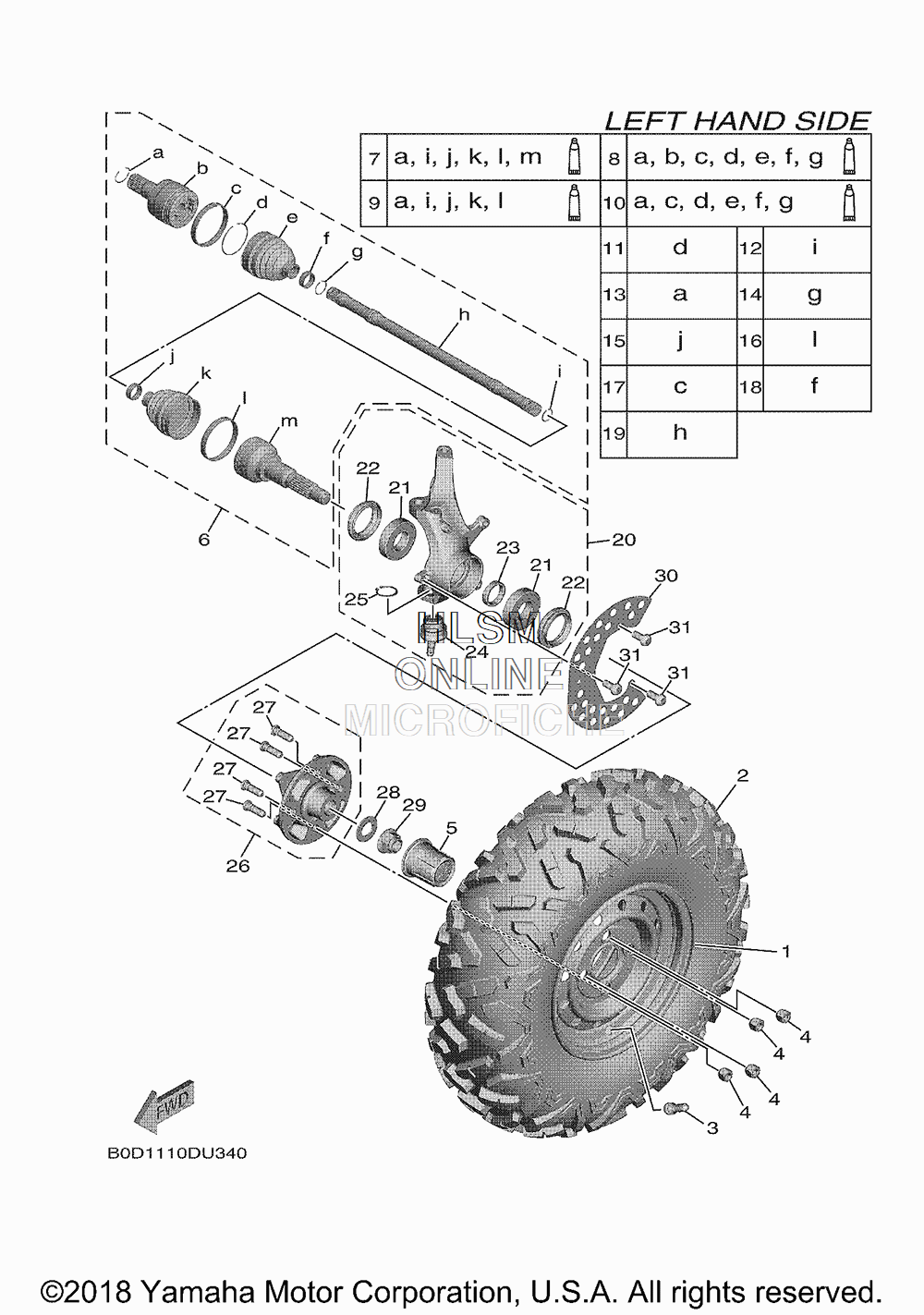

WHEEL - FRONT LEFT W/ AXLE ASSY для Yamaha WOLVERINE X2 - 2019 года выпуска

№

Артикул

Название
1

1XD-F5180-00-00 WHEEL COMP.

WHEEL COMP.
2

94108-12824-00 TIRE (26X8.00-12 MU75 4PR TL) (MAXXIS)

TIRE (26X8.00-12 MU75 4PR TL) (MAXXIS)
3

93900-00813-00 VALVE, RIM (TR413) (MAXXIS)

VALVE, RIM (TR413) (MAXXIS)
4

90179-12262-00 NUT

NUT
5

2MB-F512A-00-00 CAP, WHEEL

CAP, WHEEL
6

BG4-2518F-00-00 DRIVE SHAFT ASSY

DRIVE SHAFT ASSY
7

BG4-2510F-00-00 ...BALL JOINT SET

...BALL JOINT SET
8

BG4-2510J-00-00 ...DOUBLE OFF SET JOINT

...DOUBLE OFF SET JOINT
9

BG4-2510G-00-00 ...BOOT SET (BALL JOINT)

...BOOT SET (BALL JOINT)
10

BG4-2510H-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)

...BOOT SET (DOUBLE OFFSET JOINT)
11

BG4-25182-00-00 ...CIRCLIP

...CIRCLIP
12

2HC-2512H-00-00 ...CIRCLIP

...CIRCLIP
13

16B-2536E-00-00 ...CLIP, SPRING

...CLIP, SPRING
14

16B-2512J-00-00 ...SNAP RING

...SNAP RING
15

2HC-2510U-00-00 ...BOOT BAND (BALL JOINT)

...BOOT BAND (BALL JOINT)
16

BG4-2512G-00-00 ...BOOT BAND (SMALL)

...BOOT BAND (SMALL)
17

BG4-2511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)

...BOOT BAND (DOUBLE OFFSET JOINT)
18

BG4-2511G-00-00 ...BOOT BAND (BALL JOINT)

...BOOT BAND (BALL JOINT)
19

BG4-2518E-00-00 ...SHAFT

...SHAFT
20

1XD-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)

STEERING KNUCKLE ASSY (LEFT)
21

93306-20725-00 ...BEARING

...BEARING
22

93106-50002-00 ...OIL SEAL

...OIL SEAL
23

90387-35007-00 ...COLLAR

...COLLAR
24

1XD-23579-00-00 ...BALL JOINT 2

...BALL JOINT 2
25

99009-32400-00 ...CIRCLIP

...CIRCLIP
26

2MB-F510D-02-00 HUB ASSY 2

HUB ASSY 2
27

90114-12005-00 ...BOLT, SERRATION

...BOLT, SERRATION
28

90201-25023-00 WASHER, PLATE

WASHER, PLATE
29

90179-24006-00 NUT

NUT
30

1XD-F514A-01-00 RING, WHEEL 1

RING, WHEEL 1
31

92012-06012-00 BOLT, BUTTON HEAD

BOLT, BUTTON HEAD
