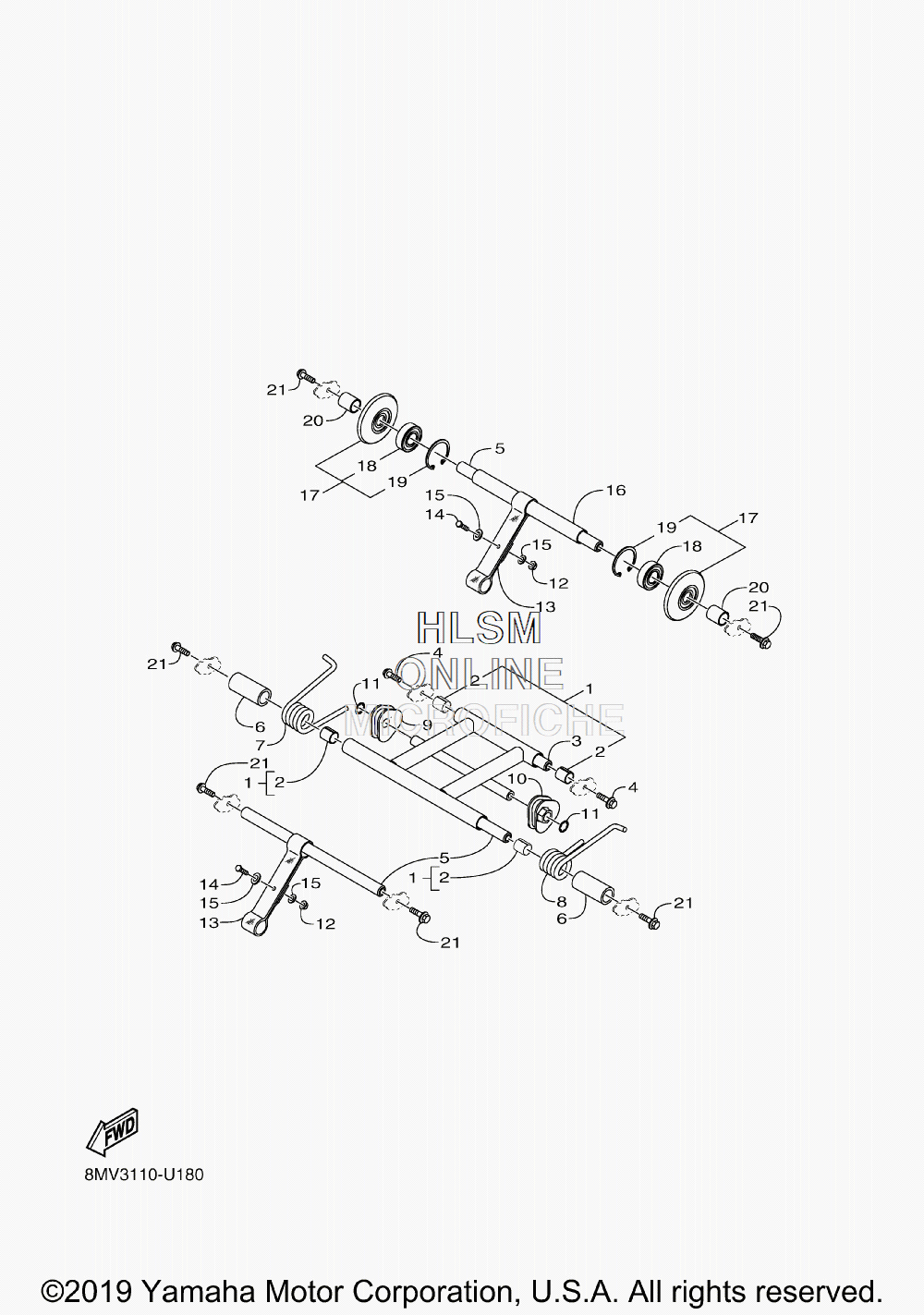

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha SRX 120 R - 2019 года выпуска`
-
№АртикулНазвание
-
18JM-G7331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28JM-RA801-00-00 ...BUSH...BUSH
-
38JM-G7486-00-00 SHAFT 4SHAFT 4
-
48JM-RA116-00-00 BOLT, FLANGEBOLT, FLANGE
-
58JM-G7465-00-00 SHAFT 1SHAFT 1
-
68JM-RA705-00-00 COLLARCOLLAR
-
78JM-G7474-00-00 SPRING, REAR 2 (RIGHT HAND)SPRING, REAR 2 (RIGHT HAND)
-
88JM-G7473-00-00 SPRING, REAR 1 (LEFT HAND)SPRING, REAR 1 (LEFT HAND)
-
98JM-G7448-00-00 HOOK 3 (RIGHT HAND)HOOK 3 (RIGHT HAND)
-
108JM-G7447-00-00 HOOK 2 (LEFT HAND)HOOK 2 (LEFT HAND)
-
118JM-RA315-00-00 NUTNUT
-
128JP-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
138JM-G7495-00-00 STOPPER 1STOPPER 1
-
148JM-RA115-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
158JM-RA400-00-00 WASHER, PLAINWASHER, PLAIN
-
168JM-RA708-00-00 COLLARCOLLAR
-
178MV-G7310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
188MV-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
198JM-RAH01-20-00 ...CIRCLIP, 2...CIRCLIP, 2
-
208JM-RA709-00-00 COLLARCOLLAR
-
218JM-RA117-00-00 BOLT, FLANGEBOLT, FLANGE
