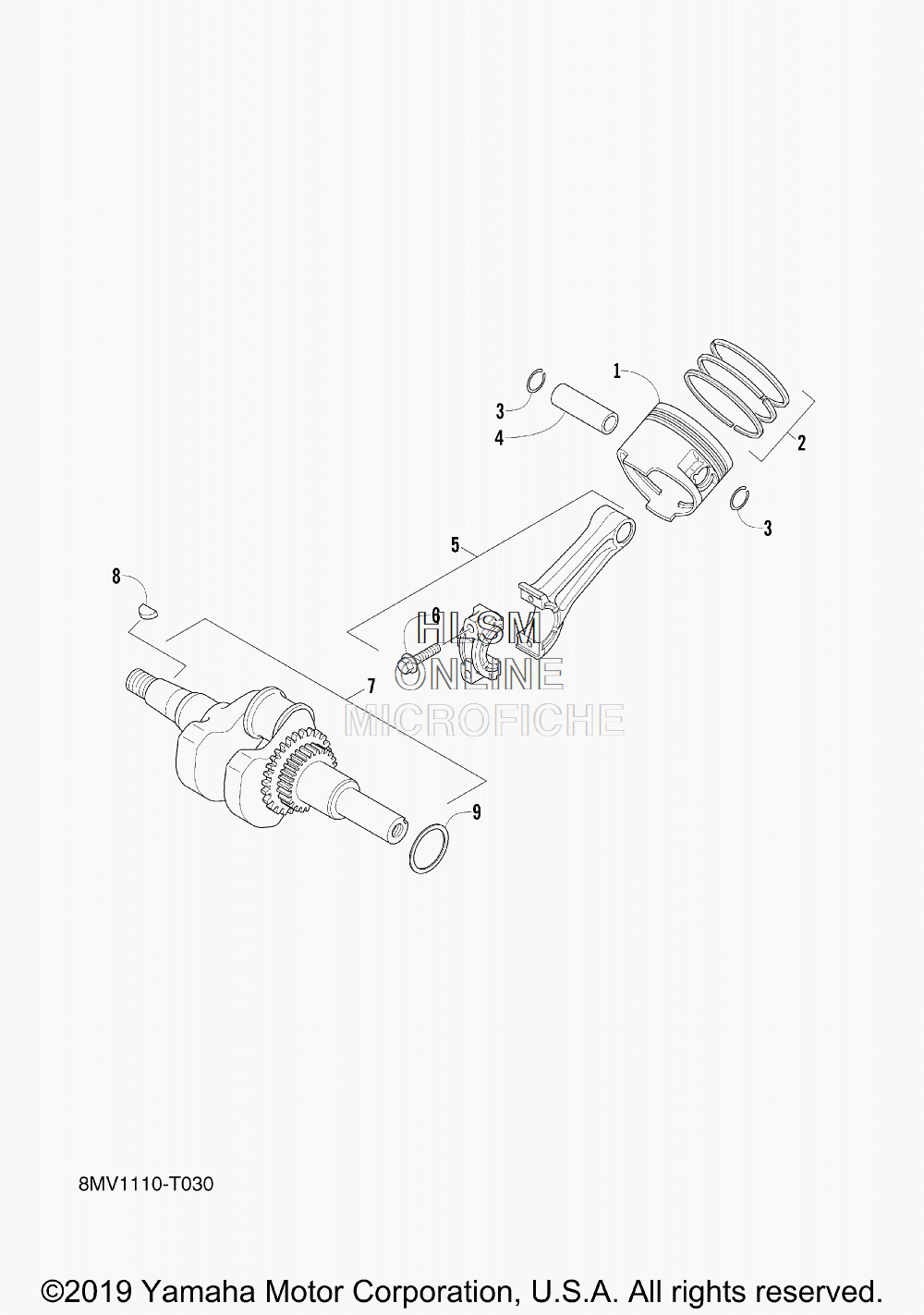

CRANKSHAFT W/ PISTON ASSY для Yamaha SRX 120 R - 2019 года выпуска`
-
№АртикулНазвание
-
17CL-E1631-10-A0 PISTON (STD)PISTON (STD)
-
17CL-E1635-00-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
17CL-E1636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
27CL-E1610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
27CL-E1610-10-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
27CL-E1610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
393450-17828-00 CIRCLIPCIRCLIP
-
47CL-E1633-00-00 PIN, PISTONPIN, PISTON
-
57CN-E1650-11-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
67CN-E1654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
77CN-E1400-10-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
890280-04801-00 KEY, WOODRUFFKEY, WOODRUFF
-
97CN-E1561-00-00 SHIM, CRANK 1 (T=0.1) (UN)SHIM, CRANK 1 (T=0.1) (UN)
