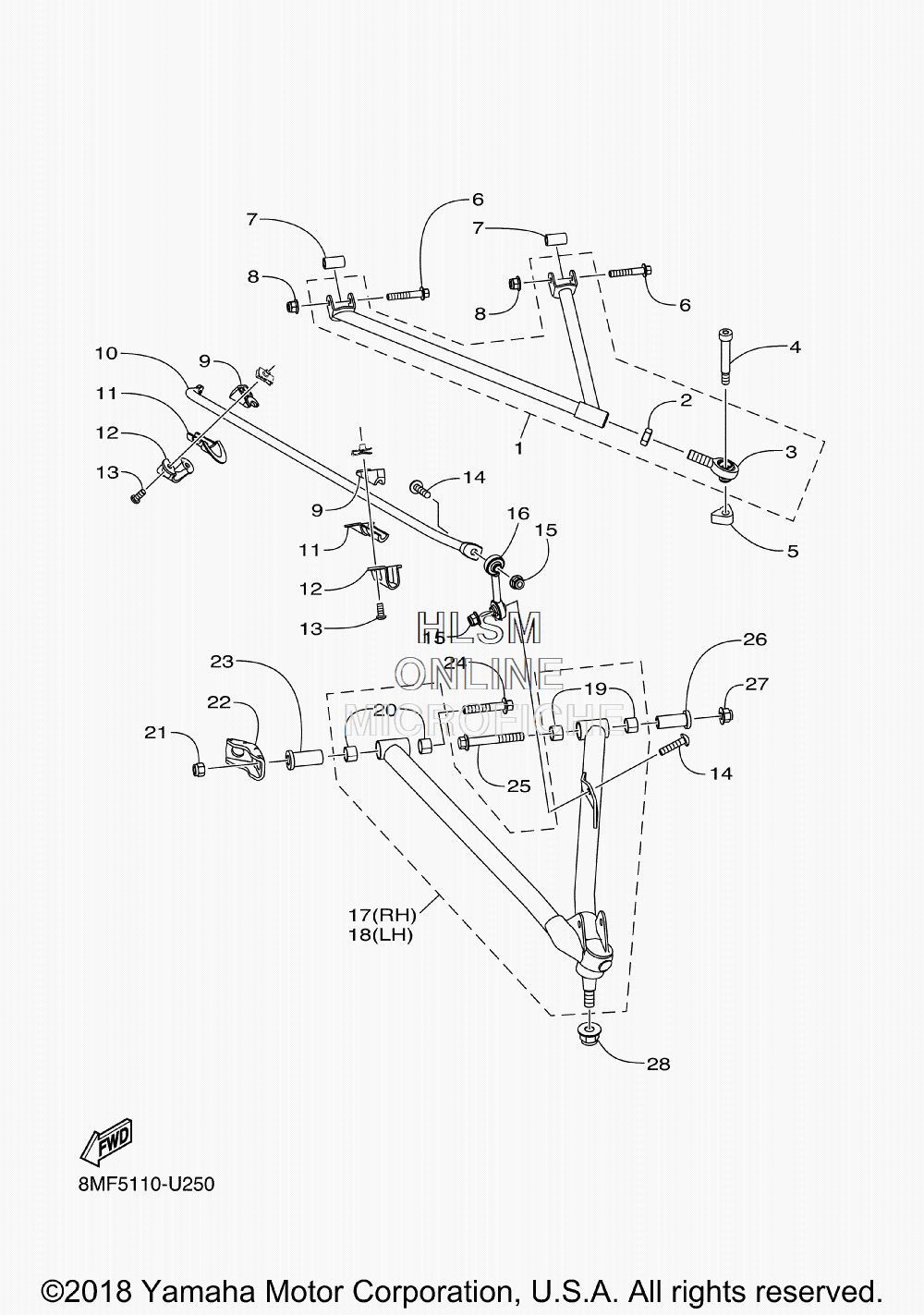

SUSPENSION - FRONT ARM для Yamaha SIDEWINDER X TX LE 141 - 2019 года выпуска
-
№АртикулНазвание
-
18KR-F354A-10-00 ARM, FRONT UPPER (BLUE)ARM, FRONT UPPER (BLUE)
-
28KU-F3778-00-00 ...NUT...NUT
-
38KU-F3841-00-00 ...JOINT, UNIVERSAL 1...JOINT, UNIVERSAL 1
-
48KU-F3767-00-00 BOLTBOLT
-
58KU-F3856-00-00 NUTNUT
-
68KG-RA190-00-00 BOLT, FLANGEBOLT, FLANGE
-
78KG-RA720-00-00 COLLAR, 8COLLAR, 8
-
88KG-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
98JP-F3867-00-00 HOLDER 2HOLDER 2
-
108JP-F386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
118JP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
128JP-F386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
138JP-RA235-00-00 SCREW, 1SCREW, 1
-
148JP-RA235-10-00 SCREW, 1SCREW, 1
-
158JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
168JP-F386F-00-00 LINK, STABILIZER FRONTLINK, STABILIZER FRONT
-
178KR-F358A-20-00 ARM, FRONT LOWER (RIGHT HAND) (BLUE)ARM, FRONT LOWER (RIGHT HAND) (BLUE)
-
188KR-F357A-20-00 ARM, FRONT LOWER (LEFT HAND) (BLUE)ARM, FRONT LOWER (LEFT HAND) (BLUE)
-
198JP-RA807-00-00 ...BUSH...BUSH
-
208JP-RA811-00-00 ...BUSH...BUSH
-
218JP-RA361-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
228JP-F3543-00-00 ARM, 1ARM, 1
-
238JP-RA721-00-00 COLLAR, 9COLLAR, 9
-
248JP-RA1A7-00-00 BOLT, FLANGEBOLT, FLANGE
-
258JP-RA194-20-00 BOLT, FLANGEBOLT, FLANGE
-
268JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
278JP-RA360-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
288JP-RA362-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
