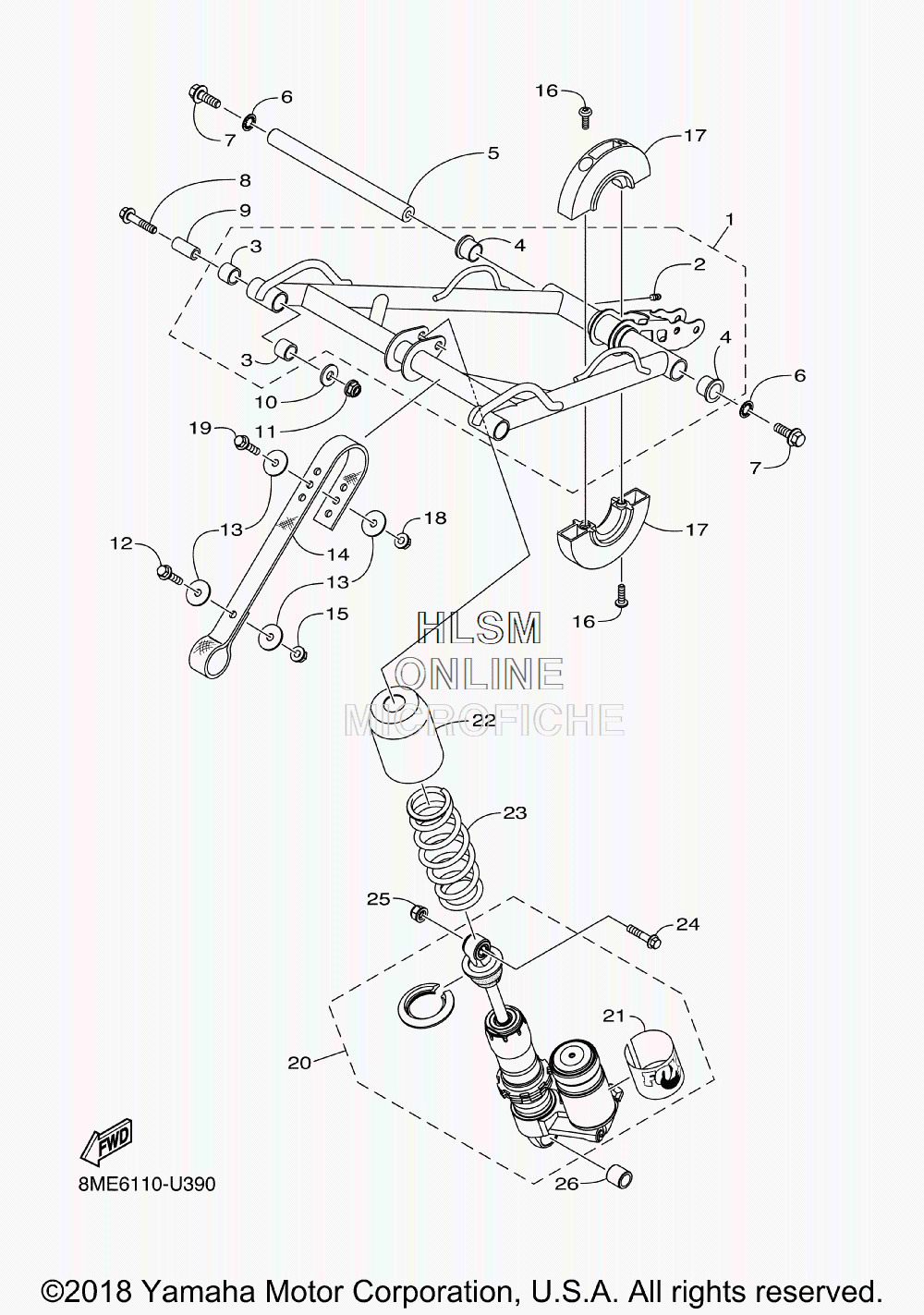

PIVOT ARM W/ SHOCK для Yamaha SIDEWINDER X TX LE 141 - 2019 года выпуска`
-
№АртикулНазвание
-
18JR-G7331-10-00 ARM, PIVOT 1ARM, PIVOT 1
-
28JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
38JP-RA814-00-00 ...BUSH, 5...BUSH, 5
-
48JP-RA812-00-00 ...BUSH...BUSH
-
58JP-G7486-10-00 SHAFT 4SHAFT 4
-
68JP-RA457-00-00 WASHER, TOOTHED LOCKWASHER, TOOTHED LOCK
-
78JP-RA199-00-00 BOLT, FLANGEBOLT, FLANGE
-
88JP-RA296-00-00 SCREW, 7SCREW, 7
-
98JP-RA733-00-00 COLLAR, 16COLLAR, 16
-
108JP-RA462-00-00 WASHER, PLAINWASHER, PLAIN
-
118JP-RA360-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
128JP-RA183-00-00 BOLT, FLANGEBOLT, FLANGE
-
138JP-RA450-00-00 WASHERWASHER
-
148KG-G7495-00-00 STOPPER 1STOPPER 1
-
158JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
168JP-RA289-00-00 SCREW, TAPPINGSCREW, TAPPING
-
178JR-G7513-00-00 RIM, GUIDE WHEEL 1RIM, GUIDE WHEEL 1
-
188KC-RA309-00-00 NUTNUT
-
198MF-RA183-00-00 BOLT, FLANGEBOLT, FLANGE
-
208MF-F2201-00-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
218JW-F151J-00-00 ...LABEL 6...LABEL 6
-
228JP-F2211-00-00 COVERCOVER
-
238JR-G7336-00-00 SPRINGSPRING
-
248JP-RA1A2-00-00 BOLT, FLANGEBOLT, FLANGE
-
258JP-RA360-10-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
268JP-RA730-00-00 COLLARCOLLAR
