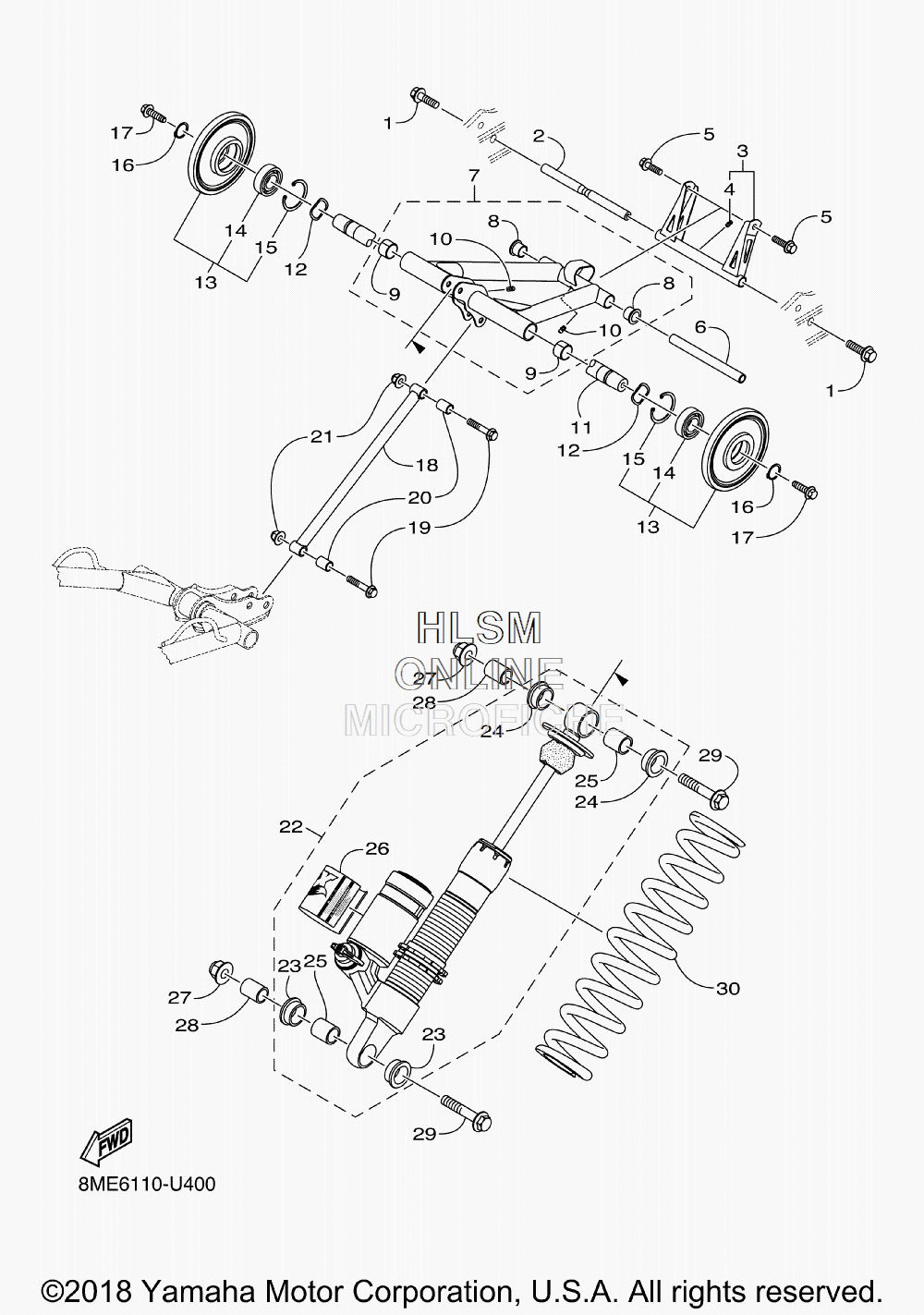

PIVOT ARM W/ SHOCK 2 для Yamaha SIDEWINDER X TX LE 141 - 2019 года выпуска`
-
№АртикулНазвание
-
18JP-RA186-00-00 BOLT, FLANGEBOLT, FLANGE
-
28JR-G7488-00-00 SHAFT 6SHAFT 6
-
38JR-G7417-10-00 BRACKET 3BRACKET 3
-
48JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
58JP-RA198-10-00 BOLT, FLANGEBOLT, FLANGE
-
68JR-G7487-10-00 SHAFT 5SHAFT 5
-
78JR-G7332-20-00 ARM, PIVOT 2ARM, PIVOT 2
-
88JP-RA812-00-00 ...BUSH...BUSH
-
98JP-RA815-00-00 ...BUSH, 6...BUSH, 6
-
108JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
118JR-G7475-10-00 SHAFT 2SHAFT 2
-
128JP-RA463-00-00 WASHER, WAVEWASHER, WAVE
-
138JR-G7312-00-00 WHEEL, SUSPENSION 2WHEEL, SUSPENSION 2
-
148JP-RAG08-00-00 ...BEARING...BEARING
-
158JP-RAH10-00-00 ...CIRCLIP, 4...CIRCLIP, 4
-
168JP-RAH11-00-00 CIRCLIP, 5CIRCLIP, 5
-
178JP-RA196-00-00 BOLT, FLANGEBOLT, FLANGE
-
188MT-G7494-00-00 ROD, RELAYROD, RELAY
-
198JP-RA1A2-00-00 BOLT, FLANGEBOLT, FLANGE
-
208JP-RA724-10-00 COLLAR, 12COLLAR, 12
-
218JP-RA360-10-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
228MF-G7480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
238JP-RA817-00-00 ...BUSH, 8...BUSH, 8
-
248JP-RA817-20-00 ...BUSH, 8...BUSH, 8
-
258JP-RA732-00-00 ...COLLAR, 15...COLLAR, 15
-
268JW-F151J-00-00 ...LABEL 6...LABEL 6
-
278JP-RA360-10-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
288JP-RA724-10-00 COLLAR, 12COLLAR, 12
-
298JP-RA1A2-00-00 BOLT, FLANGEBOLT, FLANGE
-
308MF-G7489-00-00 SPRING 1SPRING 1
