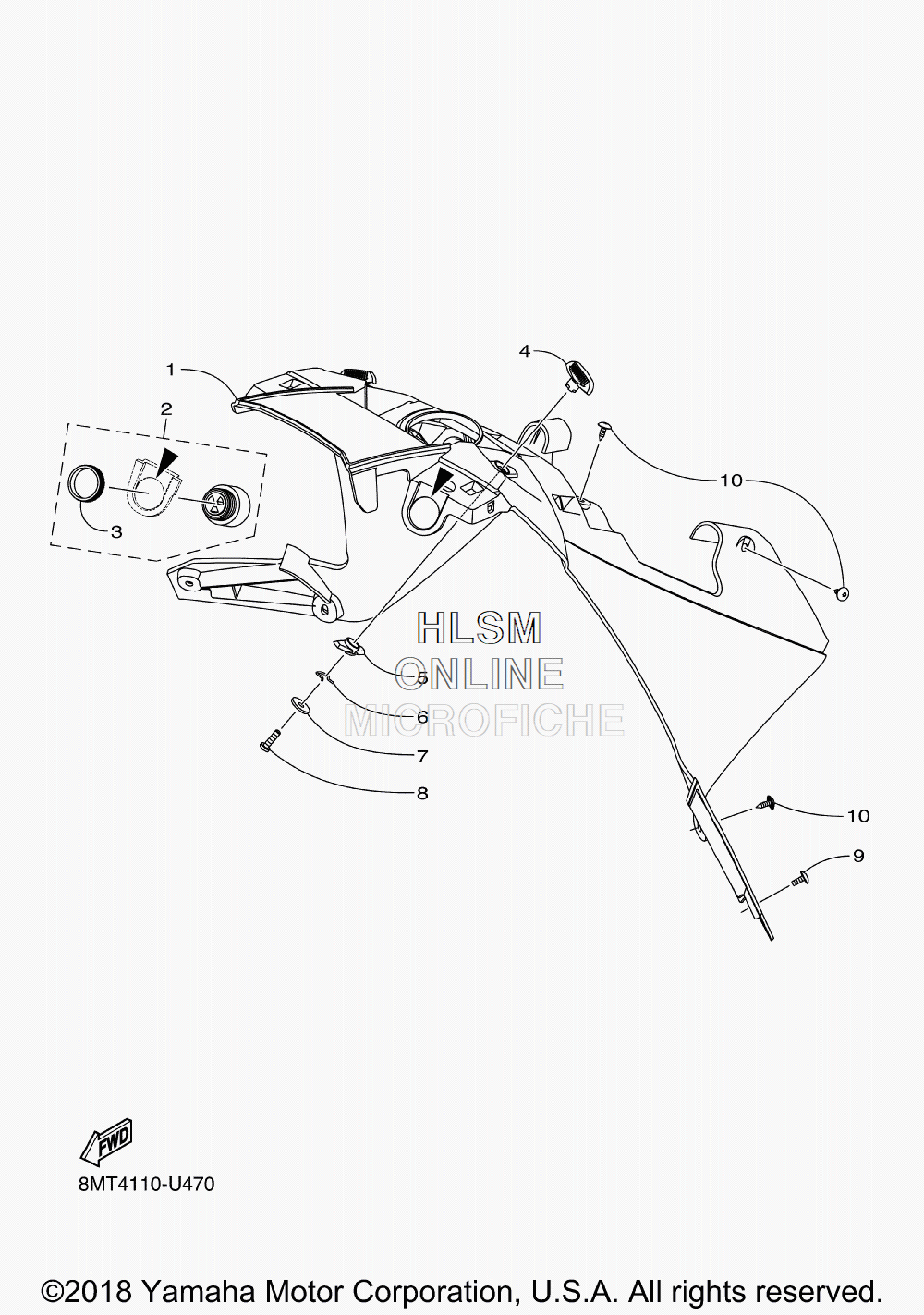

INSTRUMENT PANEL 2 для Yamaha SIDEWINDER L TX SE - 2019 года выпуска`
-
№АртикулНазвание
-
18KC-K7711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28JP-H2564-00-00 ALARM UNITALARM UNIT
-
38JP-H4395-00-00 ...RING, RETAINING...RING, RETAINING
-
48KC-K7324-00-00 KNOBKNOB
-
58KC-K7153-00-00 PLATE, BACK UP 1PLATE, BACK UP 1
-
68JP-RAC15-00-00 CLIP, 6CLIP, 6
-
78JP-RA429-00-00 WASHERWASHER
-
88KC-RA238-00-00 SCREW, 4SCREW, 4
-
98JP-RA202-00-00 SCREW, TAPPINGSCREW, TAPPING
-
108KC-RA290-00-00 SCREWSCREW
