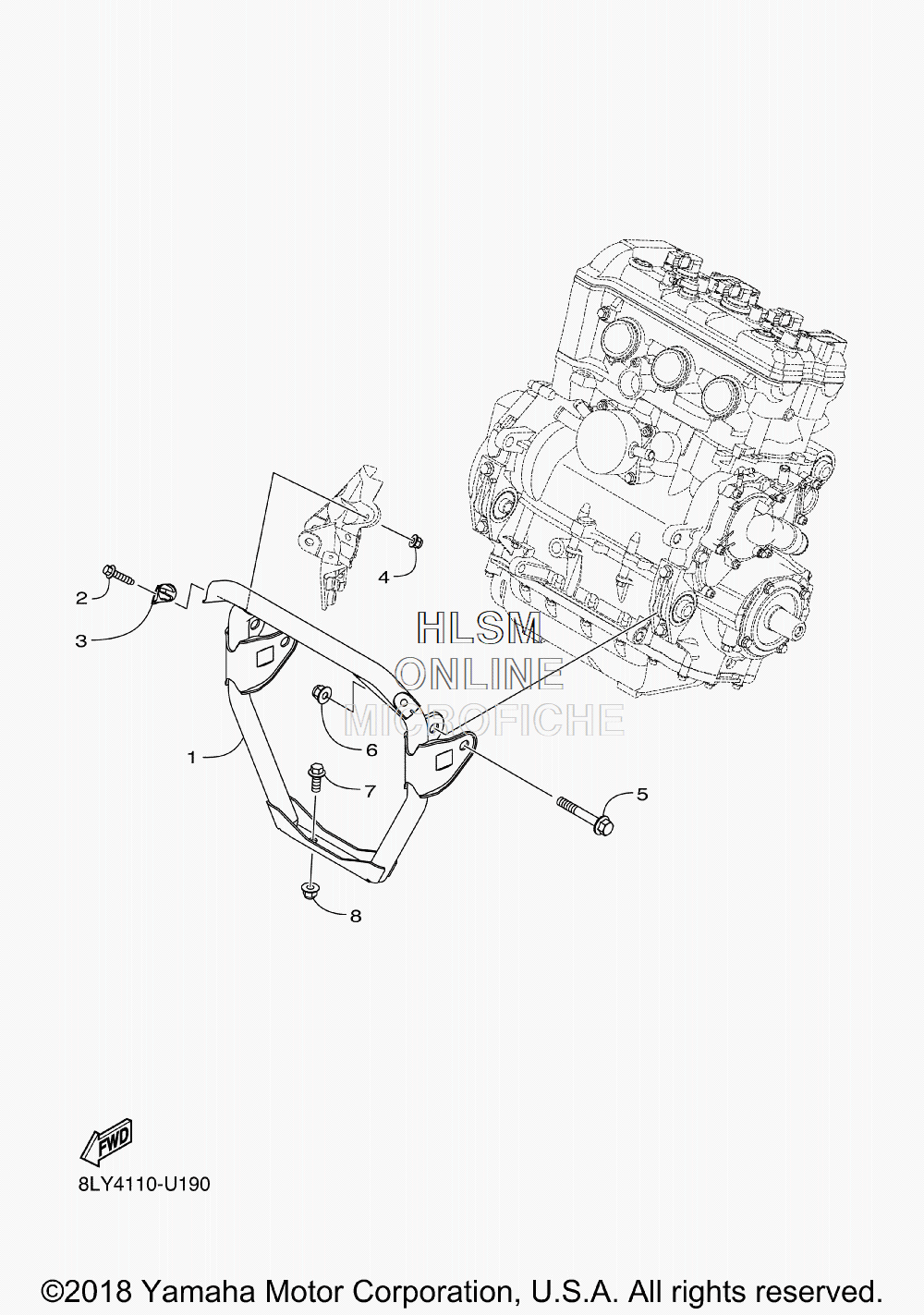

ENGINE MOUNTING для Yamaha SIDEWINDER L TX SE - 2019 года выпуска
-
№АртикулНазвание
-
18JP-F194E-20-00 BRACKET, ENGINEBRACKET, ENGINE
-
28JP-RA188-00-00 BOLT, FLANGEBOLT, FLANGE
-
38JP-F3775-00-00 INSERTINSERT
-
48JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
58JP-RA1A5-10-00 BOLT, FLANGEBOLT, FLANGE
-
68JP-RA362-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78JP-RA195-00-00 BOLT, FLANGEBOLT, FLANGE
-
88JP-RA360-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
