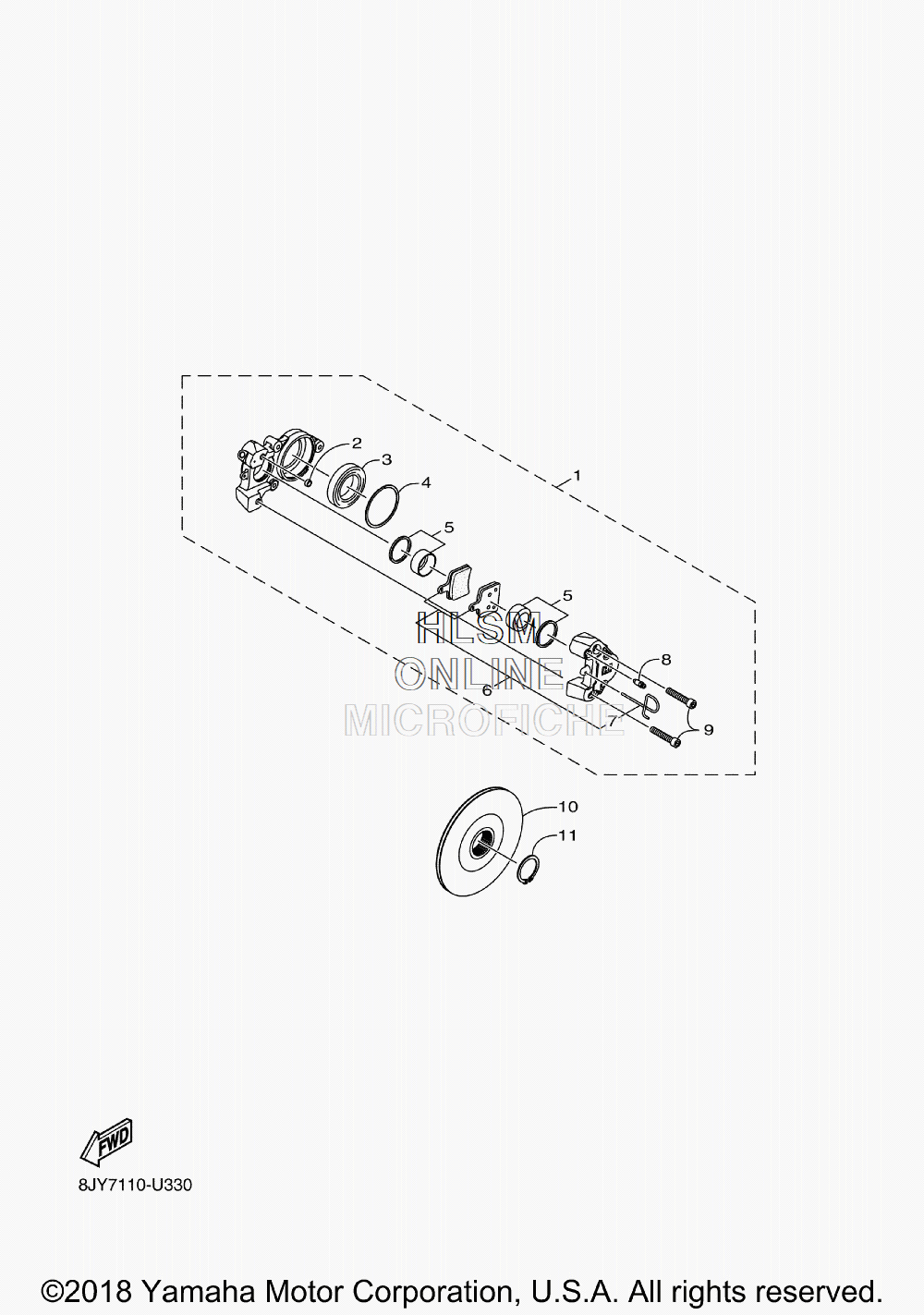

BRAKE ASSY 2 для Yamaha SIDEWINDER L TX SE - 2019 года выпуска`
-
№АртикулНазвание
-
18JP-F580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
28JP-RAF03-00-00 ...O-RING, 1...O-RING, 1
-
38JP-RAG06-00-00 ...BEARING...BEARING
-
48JP-RAH05-00-00 ...CIRCLIP (C-IN)...CIRCLIP (C-IN)
-
58JP-F5809-00-00 ...PISTON SET, CALIPER...PISTON SET, CALIPER
-
68JP-F5811-00-00 ...PAD, CALIPER 2...PAD, CALIPER 2
-
78JP-F5924-00-00 ......PIN, PAD......PIN, PAD
-
88JP-F5824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
98JP-RA237-00-00 SCREW, 3SCREW, 3
-
108JP-F581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
118JP-RAC03-00-00 CIRCLIP, 4CIRCLIP, 4
