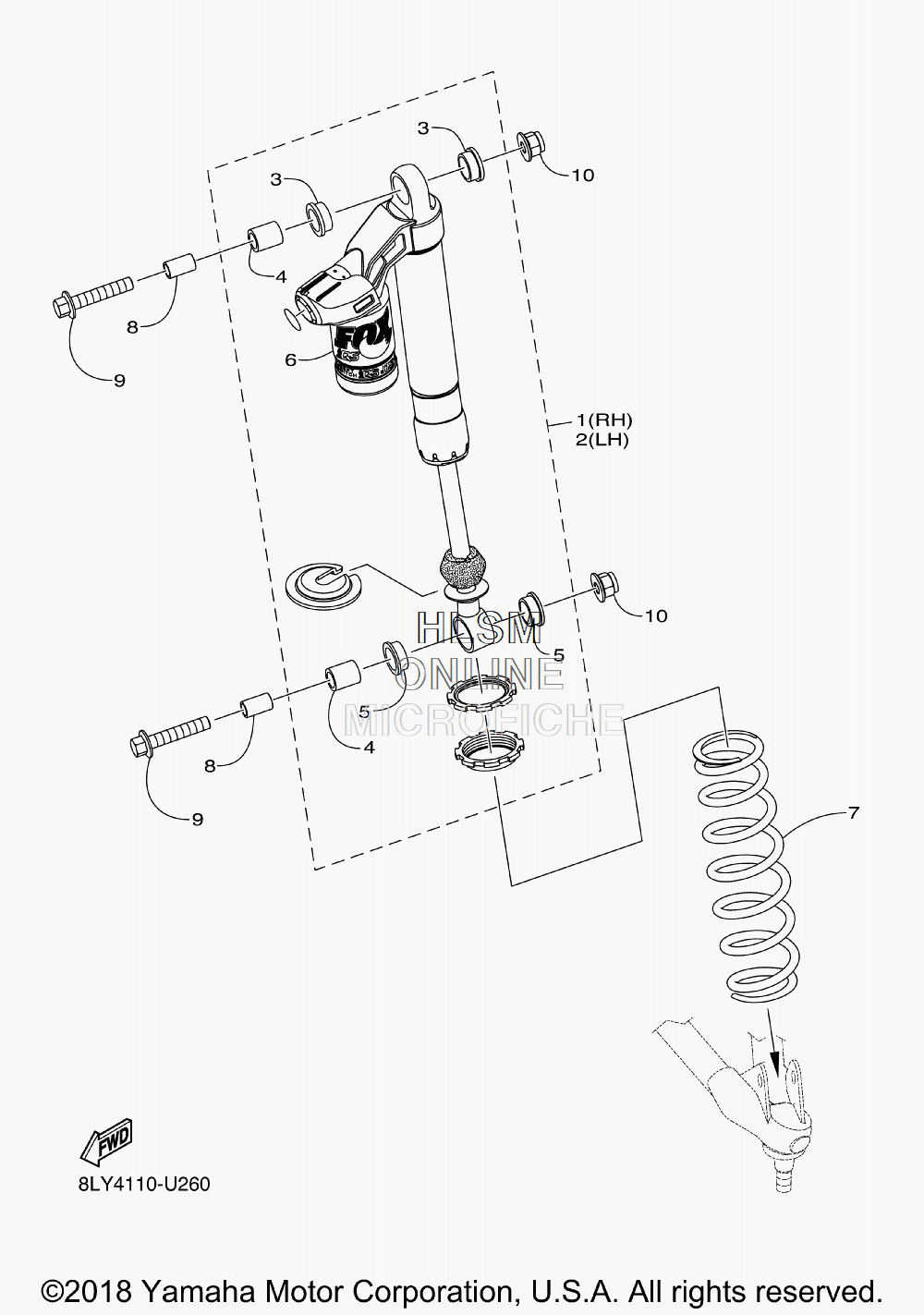

SUSPENSION - REAR ABSORBER для Yamaha SIDEWINDER L TX LE - 2019 года выпуска`
-
№АртикулНазвание
-
18MY-F377A-00-00 ABSORBER ASSY 2ABSORBER ASSY 2
-
28MY-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
38JP-RA817-00-00 ...BUSH, 8...BUSH, 8
-
48JP-RA732-00-00 ...COLLAR, 15...COLLAR, 15
-
58JP-RA817-20-00 ...BUSH, 8...BUSH, 8
-
68KP-F151J-10-00 ...LABEL 6...LABEL 6
-
78JW-F3351-10-00 SPRINGSPRING
-
88JP-RA724-00-00 COLLAR, 12COLLAR, 12
-
98JP-RA1A3-00-00 BOLT, FLANGEBOLT, FLANGE
-
108JP-RA360-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
