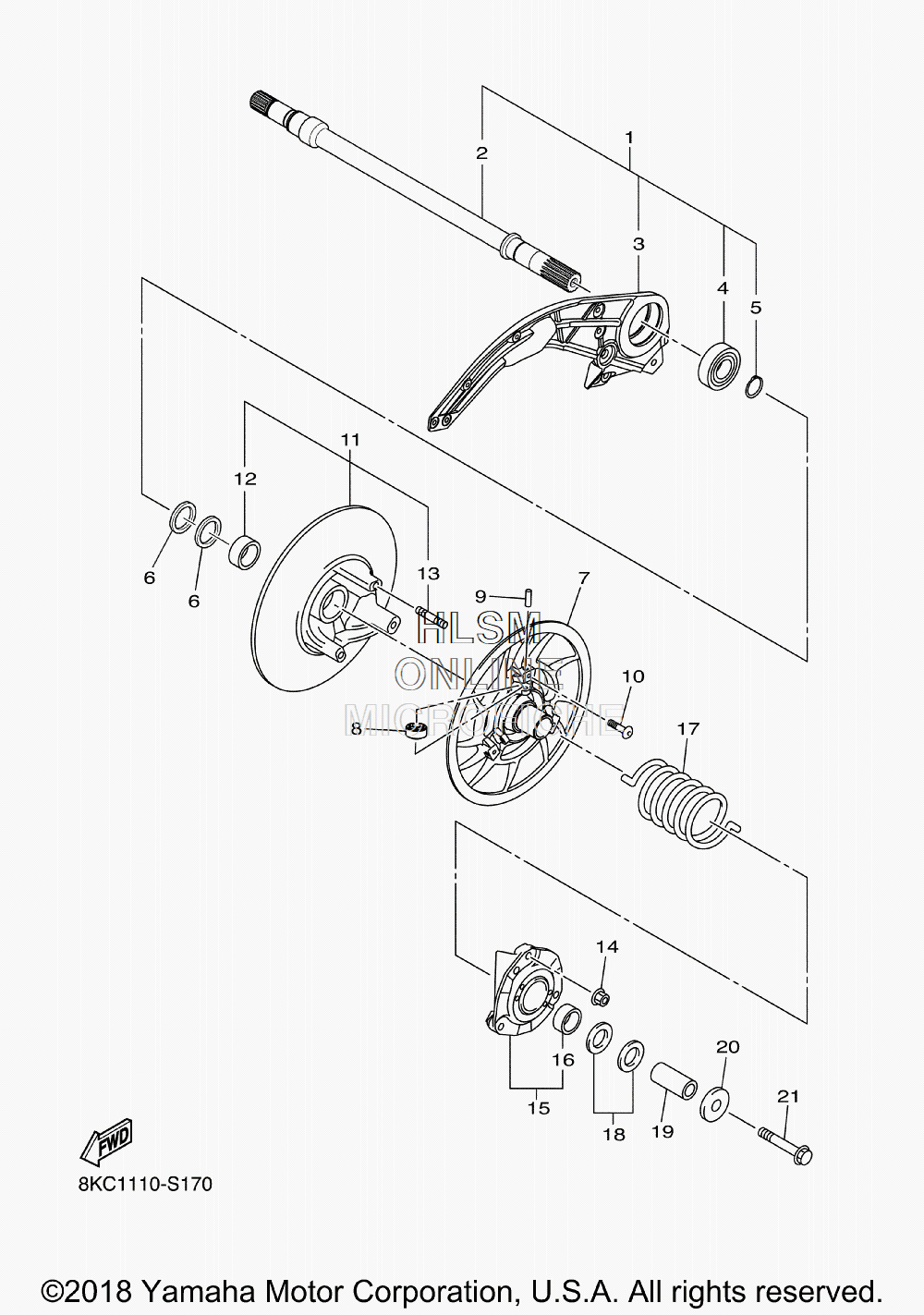

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha SIDEWINDER L TX LE - 2019 года выпуска`
-
№АртикулНазвание
-
18JP-E7680-20-00 SECONDARY SHAFT COMP.SECONDARY SHAFT COMP.
-
28JP-E7681-20-00 ...SHAFT, SECONDARY...SHAFT, SECONDARY
-
38JP-G7631-10-00 ...HOUSING, BEARING...HOUSING, BEARING
-
48JP-RAG07-00-00 ...BEARING...BEARING
-
58JP-RAH03-00-00 ...CIRCLIP, 1...CIRCLIP, 1
-
68JP-RA448-00-00 WASHER 28X40X1 (OPT)WASHER 28X40X1 (OPT)
-
68JP-RA449-00-00 WASHER 28X40X2 (OPT)WASHER 28X40X2 (OPT)
-
78KC-17660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
88KC-18178-01-00 ROLLERROLLER
-
993608-25148-00 PIN, DOWELPIN, DOWEL
-
1090111-05025-00 BOLT, HEX SOCKET BUTTONBOLT, HEX SOCKET BUTTON
-
118KC-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
1290384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1395612-08635-00 ...BOLT, STUD...BOLT, STUD
-
1490179-08655-00 NUTNUT
-
158MA-17604-00-00 SEAT SPRING SETSEAT SPRING SET
-
1690384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1790508-60012-00 SPRING, TORSION (PINK)SPRING, TORSION (PINK)
-
188KC-RA446-00-00 WASHER 25X36X1 (OPT)WASHER 25X36X1 (OPT)
-
188KC-RA447-00-00 WASHER 25X36X2 (OPT)WASHER 25X36X2 (OPT)
-
198KC-RA714-00-00 COLLAR, 2COLLAR, 2
-
208KC-RA442-00-00 WASHERWASHER
-
218JP-RA1A6-00-00 BOLT, FLANGEBOLT, FLANGE
