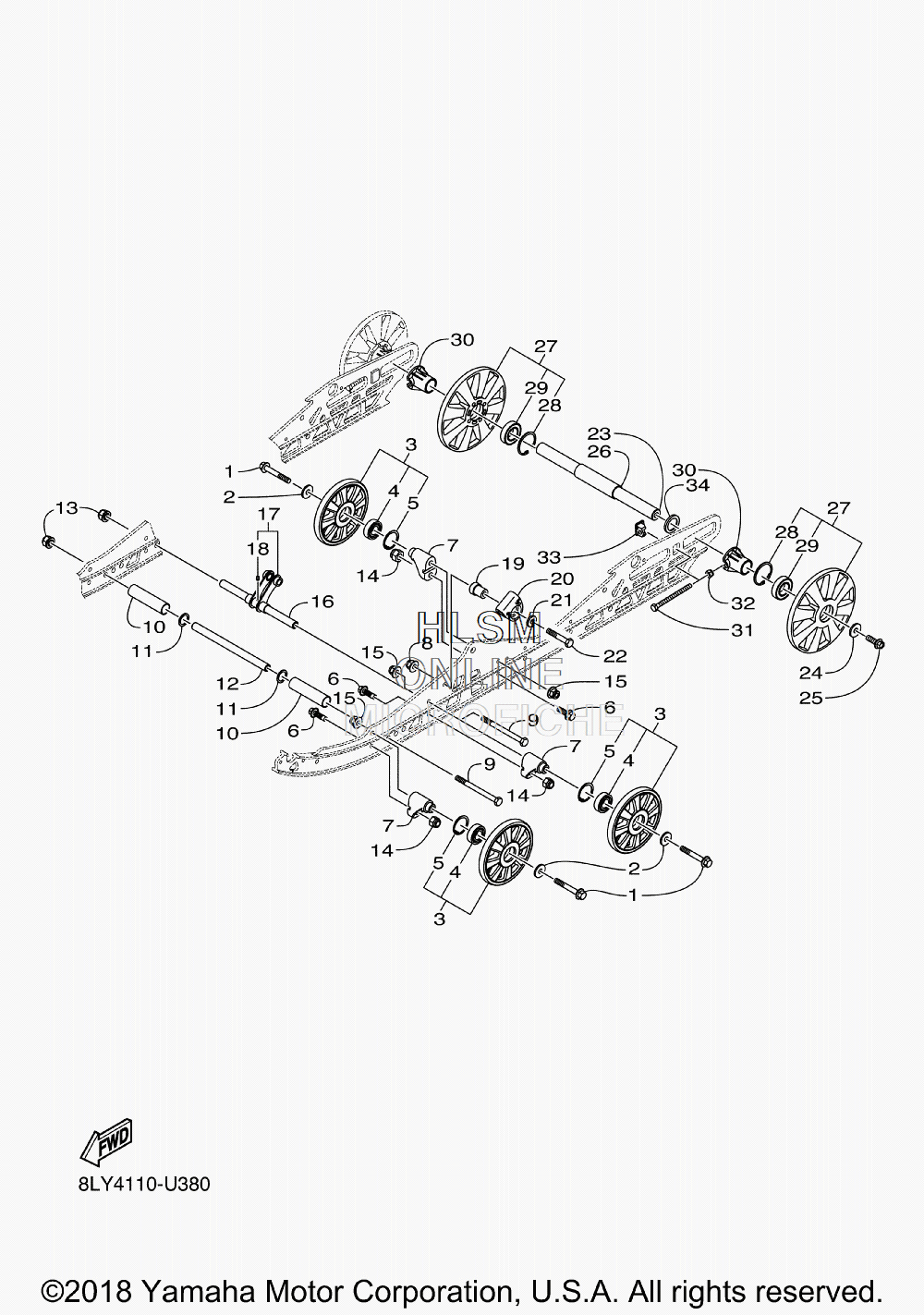

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha SIDEWINDER L TX LE - 2019 года выпуска`
-
№АртикулНазвание
-
18JP-RA1B5-00-00 BOLT, FLANGE 1BOLT, FLANGE 1
-
28JP-RA466-00-00 WASHER, 9WASHER, 9
-
38JR-G7310-20-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
48JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
58JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
68JP-RA1B6-00-00 BOLT, FLANGE 2BOLT, FLANGE 2
-
78JP-G7419-10-00 BRACKET 7BRACKET 7
-
88JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
98JP-RA194-10-00 BOLT, FLANGEBOLT, FLANGE
-
108JP-RA723-00-00 COLLAR, 11COLLAR, 11
-
118JP-RA437-00-00 WASHERWASHER
-
128JP-RA729-00-00 COLLARCOLLAR
-
138JP-RA378-01-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148JP-RA379-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
158JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
168JP-G7488-10-00 SHAFT 6SHAFT 6
-
178JX-G7349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
188JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
198JP-G7319-00-00 COLLARCOLLAR
-
208JP-G7446-00-00 HOOK 1HOOK 1
-
218JP-RA452-00-00 WASHERWASHER
-
228JP-RA1B7-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
238JP-G7521-20-00 AXLE, REARAXLE, REAR
-
248JP-RA453-00-00 WASHERWASHER
-
258JP-RA199-00-00 BOLT, FLANGEBOLT, FLANGE
-
268JY-RA734-00-00 COLLAR, 18COLLAR, 18
-
278JR-G7550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
288JM-RAH01-10-00 ...CIRCLIP, 2...CIRCLIP, 2
-
298JM-RAY03-10-00 ...BEARING, 2...BEARING, 2
-
308JP-G7534-10-00 WHEEL, GUIDE 1WHEEL, GUIDE 1
-
318JP-RA1B1-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
328JP-RA372-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
338JP-G7463-00-00 BRACKET 5BRACKET 5
-
348JP-RA447-00-00 WASHERWASHER
