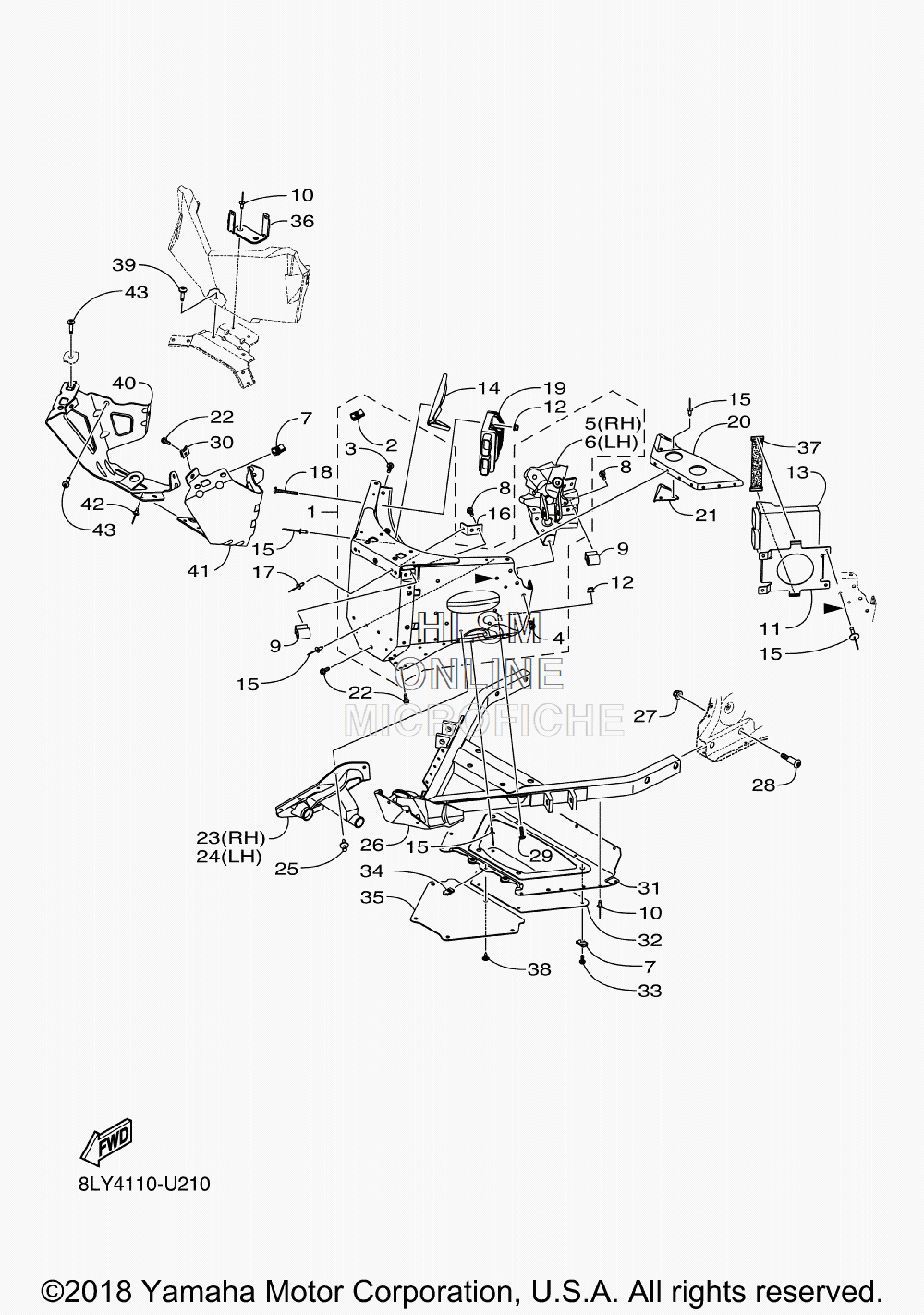

FRONT FRAME COMP. 1 для Yamaha SIDEWINDER L TX DX - 2019 года выпуска`
-
№АртикулНазвание
-
18KC-F191A-10-00 BULKHEADBULKHEAD
-
28JP-RA354-00-00 ...NUT SPRING...NUT SPRING
-
38JP-RA281-00-00 ...SCREW TAPPING...SCREW TAPPING
-
48JP-RA271-00-00 ...SCREW...SCREW
-
58JP-F377J-10-00 ...HOLDER ABSORBER 2...HOLDER ABSORBER 2
-
68JP-F376J-10-00 ...HOLDER ABSORBER...HOLDER ABSORBER
-
78JP-RA354-00-00 NUT SPRINGNUT SPRING
-
88JP-RA180-00-00 BOLT FLANGEBOLT FLANGE
-
98JP-F2219-00-00 BRACKET UPPERBRACKET UPPER
-
108JP-RA518-00-00 RIVET 9RIVET 9
-
118KC-H5991-00-00 BRACKET UNITBRACKET UNIT
-
128JM-RA322-00-00 NUT FLANGE M6-1.0NUT FLANGE M6-1.0
-
138LR-H591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
148JP-F131G-00-00 BRACKET STOPPER STEEERINGBRACKET STOPPER STEEERING
-
158JP-RA520-00-00 RIVET 11RIVET 11
-
168JP-F1138-00-00 GUSSETGUSSET
-
178JP-RA527-00-00 RIVETRIVET
-
188JP-RA264-00-00 SCREWSCREW
-
198JP-H1960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
208JP-F1922-00-00 REINF FRAME FRONT 3REINF FRAME FRONT 3
-
218JP-F1947-00-00 BRACKET STEERING 1BRACKET STEERING 1
-
228JP-RA279-00-00 SCREW TAPPINGSCREW TAPPING
-
238JP-F198J-00-00 COVER 3COVER 3
-
248JP-F198F-00-00 COVER 1COVER 1
-
258JP-RA511-00-00 RIVET 2RIVET 2
-
268KC-F196A-10-00 FRAME UNDER 1FRAME UNDER 1
-
278JM-RA301-00-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
288JP-RA275-00-00 SCREWSCREW
-
298JP-RA258-00-00 SCREWSCREW
-
308JP-RA352-00-00 NUT SPRINGNUT SPRING
-
318KC-F196E-00-00 FRAME UNDER 2FRAME UNDER 2
-
328JP-F2863-00-00 COVER UNDERCOVER UNDER
-
338JP-RA255-00-00 SCREW M6X1.0X16SCREW M6X1.0X16
-
348JP-RA349-00-00 NUT SPRINGNUT SPRING
-
358JP-F114G-00-00 PANEL UNDERPANEL UNDER
-
368KC-H1948-00-00 BRACKETBRACKET
-
372T4-82131-00-00 BAND BATTERYBAND BATTERY
-
388KC-RA290-00-00 SCREWSCREW
-
398KC-RA271-00-00 SCREWSCREW
-
408KC-F1959-00-00 BRACKET FRONT BUMPER 2BRACKET FRONT BUMPER 2
-
418KC-F1949-00-00 BRACKET FRONT BUMPER 1BRACKET FRONT BUMPER 1
-
428JP-RA528-00-00 RIVETRIVET
-
438KC-RA270-00-00 SCREWSCREW
