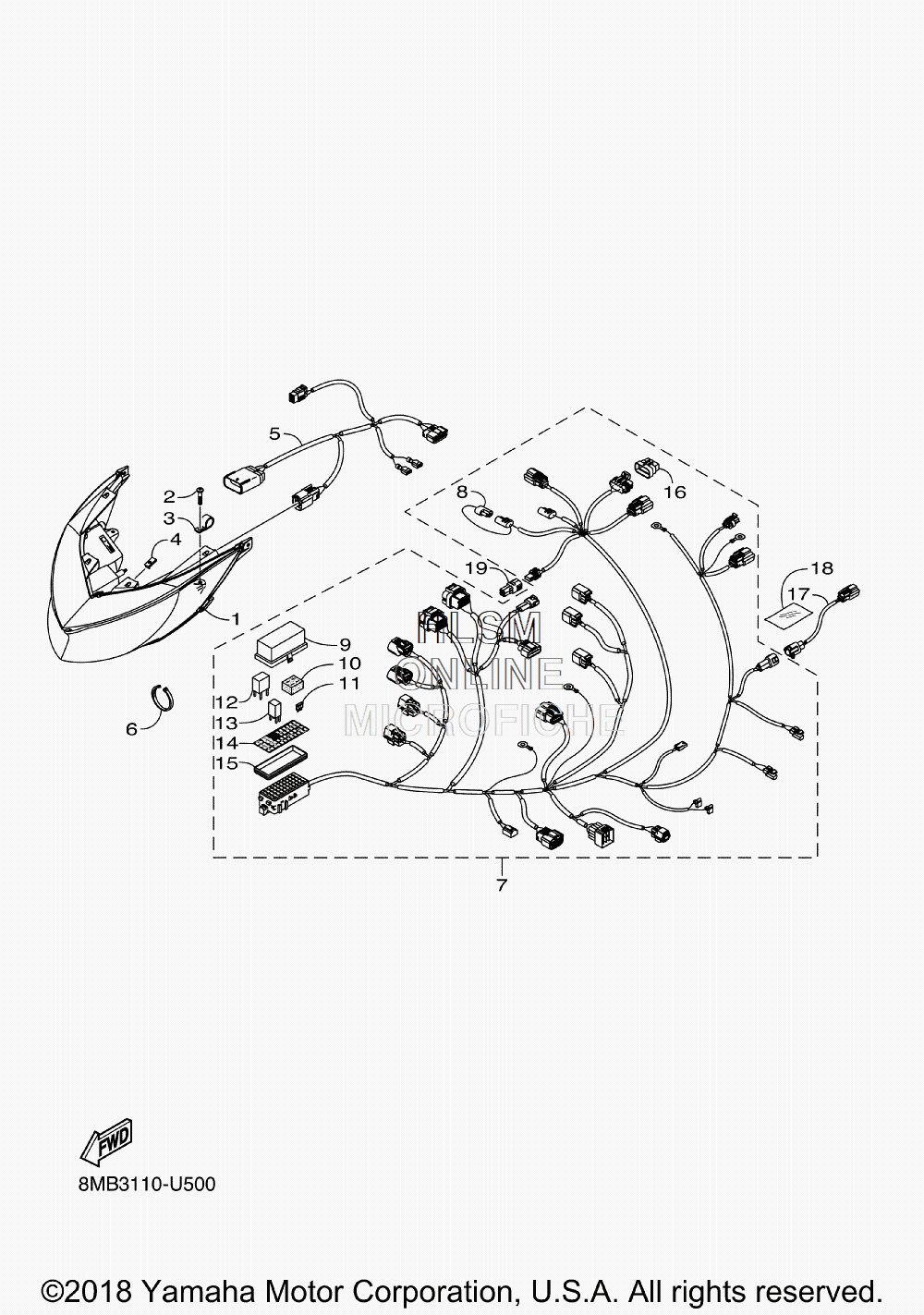

ELECTRICAL - COIL CDI RECTIFIER RELAYS AND SWITCHES для Yamaha SIDEWINDER L TX DX - 2019 года выпуска
-
№АртикулНазвание
-
18KC-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28JP-RA284-00-00 SCREW TAPPINGSCREW TAPPING
-
38JP-RAB19-00-00 CLAMP 17CLAMP 17
-
48JP-RA355-00-00 NUT SPRINGNUT SPRING
-
58KC-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
68JM-RAB01-00-00 CLAMP 2 (8 INCH) (OPT)CLAMP 2 (8 INCH) (OPT)
-
68JP-RAB03-00-00 CLAMP 1 (4-INCH) (OPT)CLAMP 1 (4-INCH) (OPT)
-
68JP-RAB04-00-00 CLAMP 2 (11.5 INCH) (OPT)CLAMP 2 (11.5 INCH) (OPT)
-
78MY-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
88JP-G8352-00-00 ...ANCHOR CABLE 1...ANCHOR CABLE 1
-
98JP-H2172-00-00 ...COVER FUSE BOX...COVER FUSE BOX
-
108JP-H2152-00-00 ...HOLDER FUSE...HOLDER FUSE
-
118JP-H2151-00-00 ...FUSE (15A) (OPT)...FUSE (15A) (OPT)
-
118JP-H2151-10-00 ...FUSE (20A) (OPT)...FUSE (20A) (OPT)
-
118JP-H2151-20-00 ...FUSE (25A) (OPT)...FUSE (25A) (OPT)
-
118JP-H2151-30-00 ...FUSE (30A) (OPT)...FUSE (30A) (OPT)
-
128JP-H2185-00-00 ...RELAY (5PIN) 30AMP...RELAY (5PIN) 30AMP
-
138JP-H2189-00-00 ...RELAY (4PIN) 20AMP...RELAY (4PIN) 20AMP
-
148KC-R2391-00-00 ...DECAL 1...DECAL 1
-
158JP-H1365-00-00 ...GASKET HOLE COVER...GASKET HOLE COVER
-
168JP-H1662-10-00 ...COVER CONNECTER...COVER CONNECTER
-
178JR-H2586-00-00 EXTENSION WIRE HARNESSEXTENSION WIRE HARNESS
-
188JM-F199H-00-00 SHIELD HEATSHIELD HEAT
-
198JP-H1662-20-00 COVER CONNECTERCOVER CONNECTER
