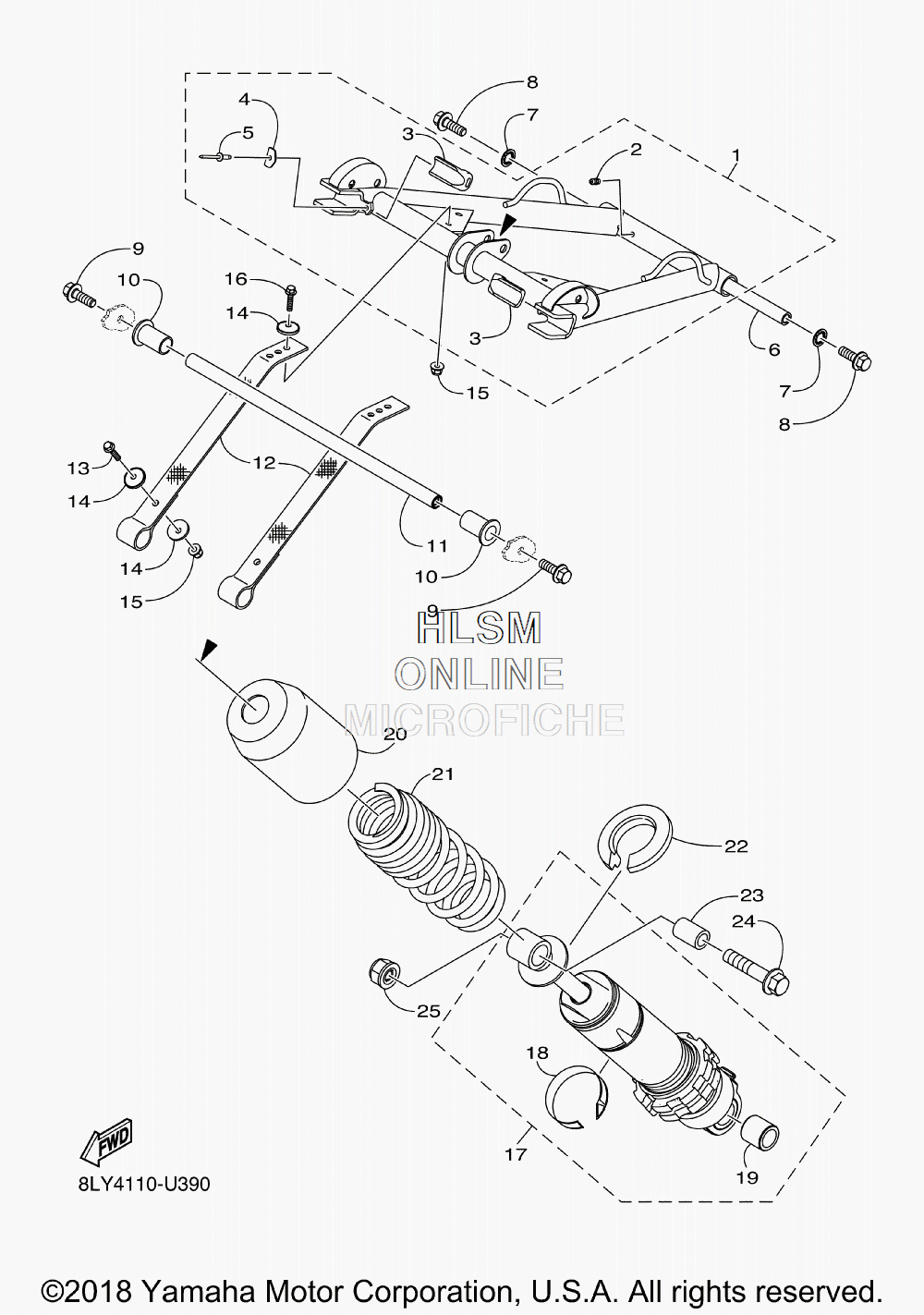

PIVOT ARM W/ SHOCK для Yamaha SIDEWINDER L TX DX - 2019 года выпуска
-
№АртикулНазвание
-
18LJ-G7331-10-00 ARM PIVOT 1ARM PIVOT 1
-
28JP-RAL01-00-00 ...NIPPLE GREASE 1...NIPPLE GREASE 1
-
38JP-G7456-00-00 ...DAMPER 1...DAMPER 1
-
48JP-G7359-00-00 ...WASHER...WASHER
-
58JP-RA521-00-00 ...RIVET 12...RIVET 12
-
68JP-G7486-20-00 SHAFT 4SHAFT 4
-
78JP-RA457-00-00 WASHER TOOTHED LOCKWASHER TOOTHED LOCK
-
88JP-RA199-00-00 BOLT FLANGEBOLT FLANGE
-
98JP-RA1A0-00-00 BOLT FLANGEBOLT FLANGE
-
108JP-RA805-00-00 BUSH 4BUSH 4
-
118JP-G7465-00-00 SHAFT 1SHAFT 1
-
128JP-G7495-20-00 STOPPER 1STOPPER 1
-
138JP-RA183-00-00 BOLT FLANGEBOLT FLANGE
-
148JP-RA450-00-00 WASHERWASHER
-
158JM-RA322-00-00 NUT FLANGE M6-1.0NUT FLANGE M6-1.0
-
168JP-RA181-00-00 BOLT FLANGE M6X1.0X20BOLT FLANGE M6X1.0X20
-
178JX-F2201-20-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
188JP-F2259-70-00 ...LABEL WARNING...LABEL WARNING
-
198JP-RA730-00-00 ...COLLAR...COLLAR
-
208JP-F2211-00-00 COVERCOVER
-
218JX-G7336-00-00 SPRINGSPRING
-
228JP-F2214-00-00 GUIDE SPRING 1GUIDE SPRING 1
-
238JP-RA726-00-00 COLLAR 14COLLAR 14
-
248JP-RA1A2-10-00 BOLT FLANGEBOLT FLANGE
-
258JP-RA378-01-00 NUT SELF-LOCKINGNUT SELF-LOCKING
