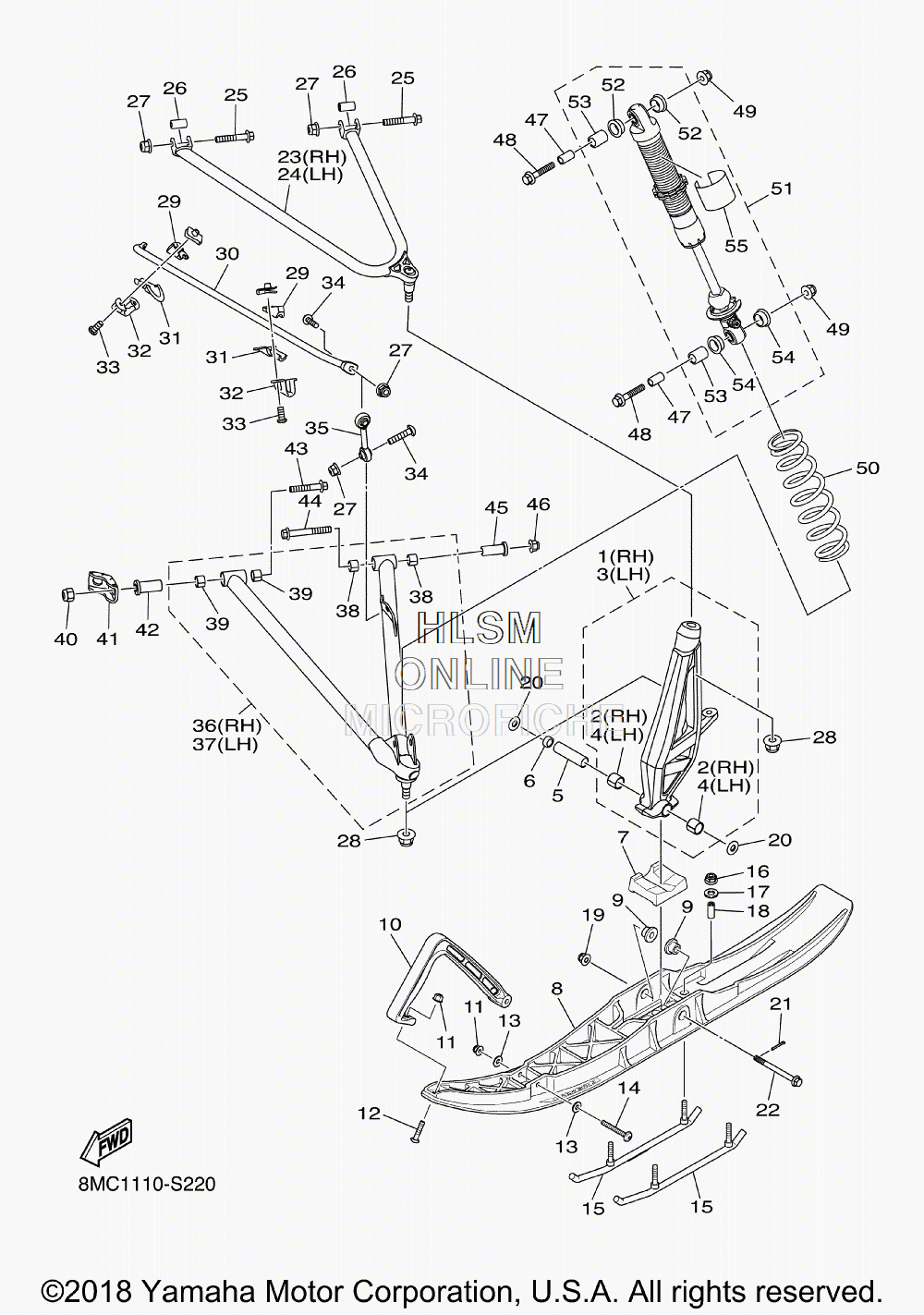

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SIDEWINDER X TX SE 137 - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-F3521-60-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
28JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
38JP-F3511-60-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
48JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
58JP-RA731-00-00 COLLAR, 75COLLAR, 75
-
68JP-RA718-00-00 COLLAR, 6COLLAR, 6
-
78KN-F3743-00-00 STOPPER 1STOPPER 1
-
88LH-F3711-00-00 SKI 1SKI 1
-
98JH-F3754-00-00 COLLAR 1COLLAR 1
-
108LH-F3712-50-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
118LH-F3778-00-00 NUTNUT
-
128LH-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
138LH-F3737-00-00 WASHER 1WASHER 1
-
148LH-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
158KM-F3731-00-00 RUNNER 1RUNNER 1
-
168JH-F3778-00-00 NUTNUT
-
178JH-F3738-00-00 WASHER 2WASHER 2
-
188KN-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
1995602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
2090201-10043-00 WASHER, PLATEWASHER, PLATE
-
2191401-20020-00 PIN, COTTERPIN, COTTER
-
2290105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
238JP-F355A-30-00 ARM, FRONT UPPER (RIGHT HAND) (WHITE)ARM, FRONT UPPER (RIGHT HAND) (WHITE)
-
248JP-F354A-30-00 ARM, FRONT UPPER (LEFT HAND) (WHITE)ARM, FRONT UPPER (LEFT HAND) (WHITE)
-
258JP-RA190-00-00 BOLT, FLANGE M8X1.25X45BOLT, FLANGE M8X1.25X45
-
268JP-RA720-00-00 COLLAR, 8COLLAR, 8
-
278JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
288JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
298JP-F3867-00-00 HOLDER 2HOLDER 2
-
308JP-F386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
318JP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
328JP-F386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
338JP-RA235-00-00 SCREW, 1SCREW, 1
-
348JP-RA235-10-00 SCREW, 1SCREW, 1
-
358JP-F386F-00-00 LINK, STABILIZER FRONTLINK, STABILIZER FRONT
-
368JP-F358A-30-00 ARM, FRONT LOWER (RIGHT HAND) (WHITE)ARM, FRONT LOWER (RIGHT HAND) (WHITE)
-
378JP-RA807-00-00 ...BUSH, 10DU10...BUSH, 10DU10
-
388JP-RA811-00-00 ...BUSH, 1815DU...BUSH, 1815DU
-
398JP-F357A-30-00 ARM, FRONT LOWER (LEFT HAND) (WHITE)ARM, FRONT LOWER (LEFT HAND) (WHITE)
-
408JP-RA361-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
418JP-F3543-00-00 ARM, 1ARM, 1
-
428JP-RA721-10-00 COLLAR, 9COLLAR, 9
-
438JP-RA1A7-00-00 BOLT, FLANGE M12X1.25X76BOLT, FLANGE M12X1.25X76
-
448JP-RA194-20-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
458JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
468JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
478JW-F3351-10-00 SPRINGSPRING
-
488JP-RA724-00-00 COLLAR, 12COLLAR, 12
-
498JP-RA1A3-00-00 BOLT, FLANGE M10X1.25X50BOLT, FLANGE M10X1.25X50
-
508JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
518JW-F330E-30-00 DAMPER ASSYDAMPER ASSY
-
528JP-RA817-00-00 ...BUSH, 8...BUSH, 8
-
538JP-RA732-00-00 ...COLLAR, 15...COLLAR, 15
-
548JP-RA817-20-00 ...BUSH, 8...BUSH, 8
-
558JW-F151J-00-00 ...LABEL 6...LABEL 6
