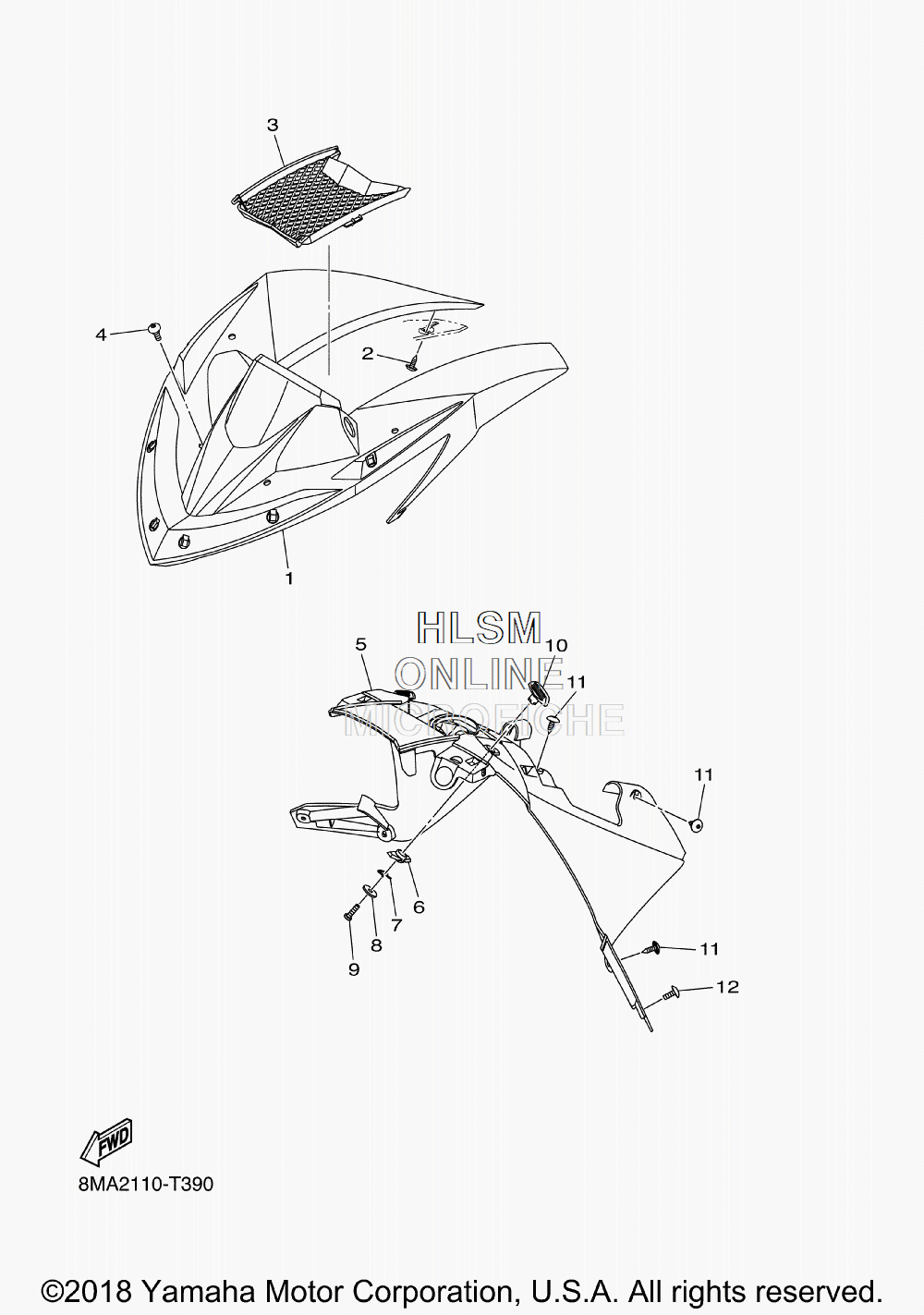

CONSOLE ASSY для Yamaha SIDEWINDER X TX SE 137 - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-K7712-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28KC-RA290-00-00 SCREWSCREW
-
38KC-K7131-00-00 LOUVER 1LOUVER 1
-
48JP-RA253-00-00 SCREW, M6-1.0X18SCREW, M6-1.0X18
-
58KC-K7711-10-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
68KC-K7153-00-00 PLATE, BACK UP 1PLATE, BACK UP 1
-
78JP-RAC15-00-00 CLIP, 6CLIP, 6
-
88JP-RA429-00-00 WASHERWASHER
-
98JP-RA2A2-00-00 SCREW, 13SCREW, 13
-
108KC-K7324-00-00 KNOBKNOB
-
118KC-RA290-00-00 SCREWSCREW
-
128JP-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
