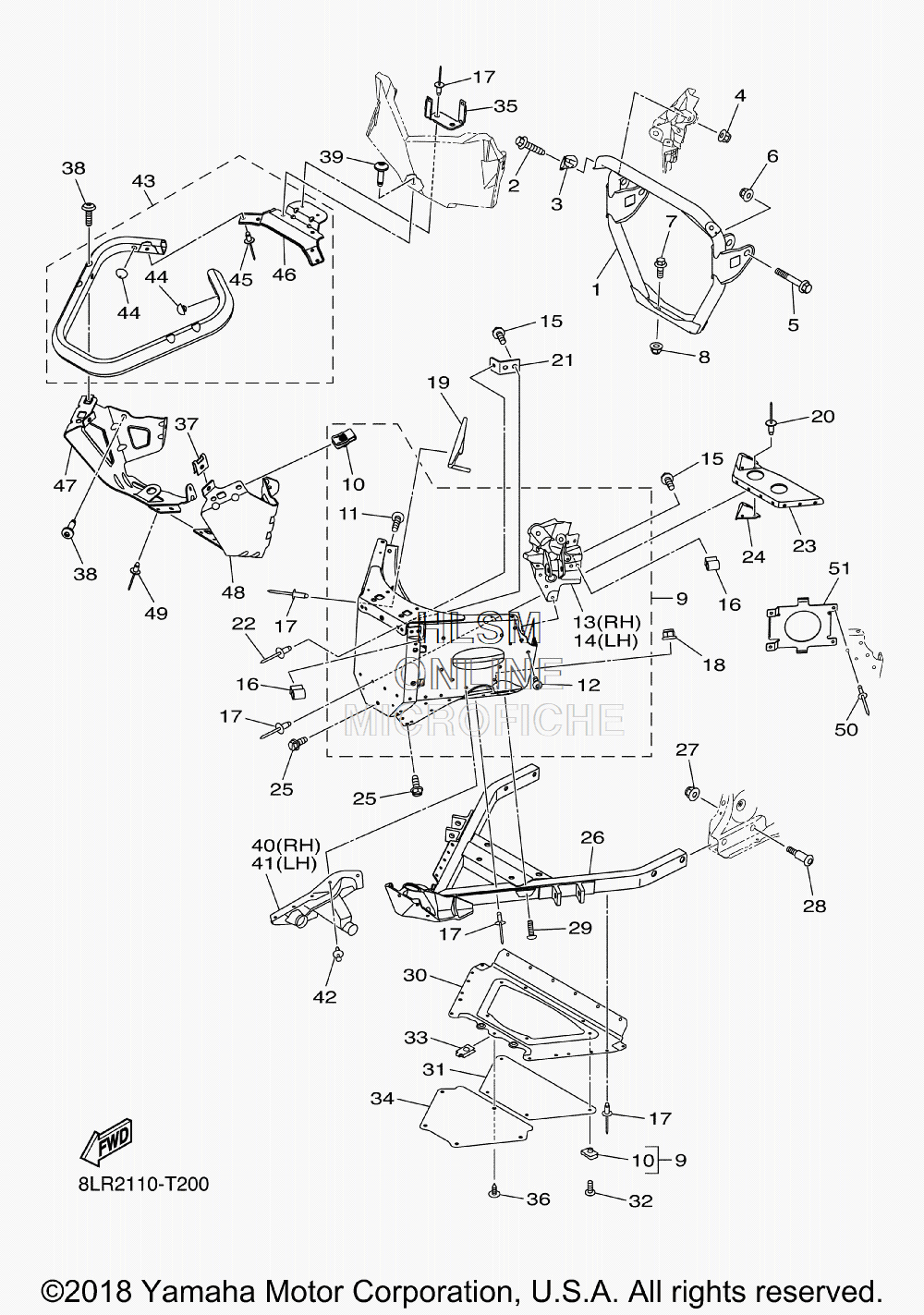

FRONT FRAME COMP 1 для Yamaha SIDEWINDER X TX SE 137 - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-F194E-10-00 BRACKET, ENGINEBRACKET, ENGINE
-
28JP-RA188-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
38JP-F3775-00-00 INSERTINSERT
-
48JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
58JP-RA1A5-10-00 BOLT, FLANGE M12X1.25X75BOLT, FLANGE M12X1.25X75
-
68JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
78JP-RA195-00-00 BOLT, FLANGE M10X1.25X25BOLT, FLANGE M10X1.25X25
-
88JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
98KC-F191A-10-00 BULKHEADBULKHEAD
-
108JP-RA354-00-00 ...NUT, CLIP M6...NUT, CLIP M6
-
118JP-RA281-00-00 ...SCREW, TAPPING M6X1X20...SCREW, TAPPING M6X1X20
-
128JP-RA271-00-00 ...SCREW, M6X1X16...SCREW, M6X1X16
-
138JP-F377J-10-00 ...HOLDER, ABSORBER 2...HOLDER, ABSORBER 2
-
148JP-F376J-10-00 ...HOLDER, ABSORBER...HOLDER, ABSORBER
-
158JP-RA180-00-00 BOLT, FLANGE M6X1.0X16BOLT, FLANGE M6X1.0X16
-
168JP-F2219-00-00 BRACKET, UPPERBRACKET, UPPER
-
178JP-RA518-00-00 RIVET, 9RIVET, 9
-
188JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
198JP-F131G-00-00 BRACKET, STOPPER STEEERINGBRACKET, STOPPER STEEERING
-
208JP-RA520-00-00 RIVET, 11RIVET, 11
-
218JP-F1138-00-00 GUSSETGUSSET
-
228JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
-
238JP-F1922-00-00 REINF FRAME FR 3REINF FRAME FR 3
-
248JP-F1947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
258JP-RA279-00-00 SCREW, TAPPING 1/4-20X5/8SCREW, TAPPING 1/4-20X5/8
-
268KC-F196A-10-00 FRAME UNDER 1FRAME UNDER 1
-
278JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
288JP-RA275-00-00 SCREW, M8X1.25X44.16SCREW, M8X1.25X44.16
-
298JP-RA258-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
308KC-F196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
318JP-F2863-00-00 COVER, UNDERCOVER, UNDER
-
328JP-RA255-00-00 SCREW, M6X1.0X16SCREW, M6X1.0X16
-
338JP-RA349-00-00 NUT, CLIPNUT, CLIP
-
348JP-F114G-00-00 PANEL, UNDERPANEL, UNDER
-
358KC-H1948-00-00 BRACKETBRACKET
-
368KC-RA290-00-00 SCREWSCREW
-
378JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
-
388KC-RA270-00-00 SCREW, M6X18SCREW, M6X18
-
398KC-RA271-00-00 SCREW, M6X1X16SCREW, M6X1X16
-
408JP-F198J-00-00 COVER 3COVER 3
-
418JP-F198F-00-00 COVER 1COVER 1
-
428JP-RA511-00-00 RIVET, 2RIVET, 2
-
438LX-K7510-00-00 FRONT BUMPER COMP.FRONT BUMPER COMP.
-
448KC-K7517-00-00 ...CAP...CAP
-
458JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
468KC-F194Y-00-00 ...BRACKET, FRONT GUARD 3...BRACKET, FRONT GUARD 3
-
478KC-F1959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
488KC-F1949-00-00 BRACKET, FRONTBRACKET, FRONT
-
498JP-RA528-00-00 RIVET, 3/16RIVET, 3/16
-
508JP-RA518-00-00 RIVET, 9RIVET, 9
-
518KC-H5991-00-00 BRACKET, UNITBRACKET, UNIT
