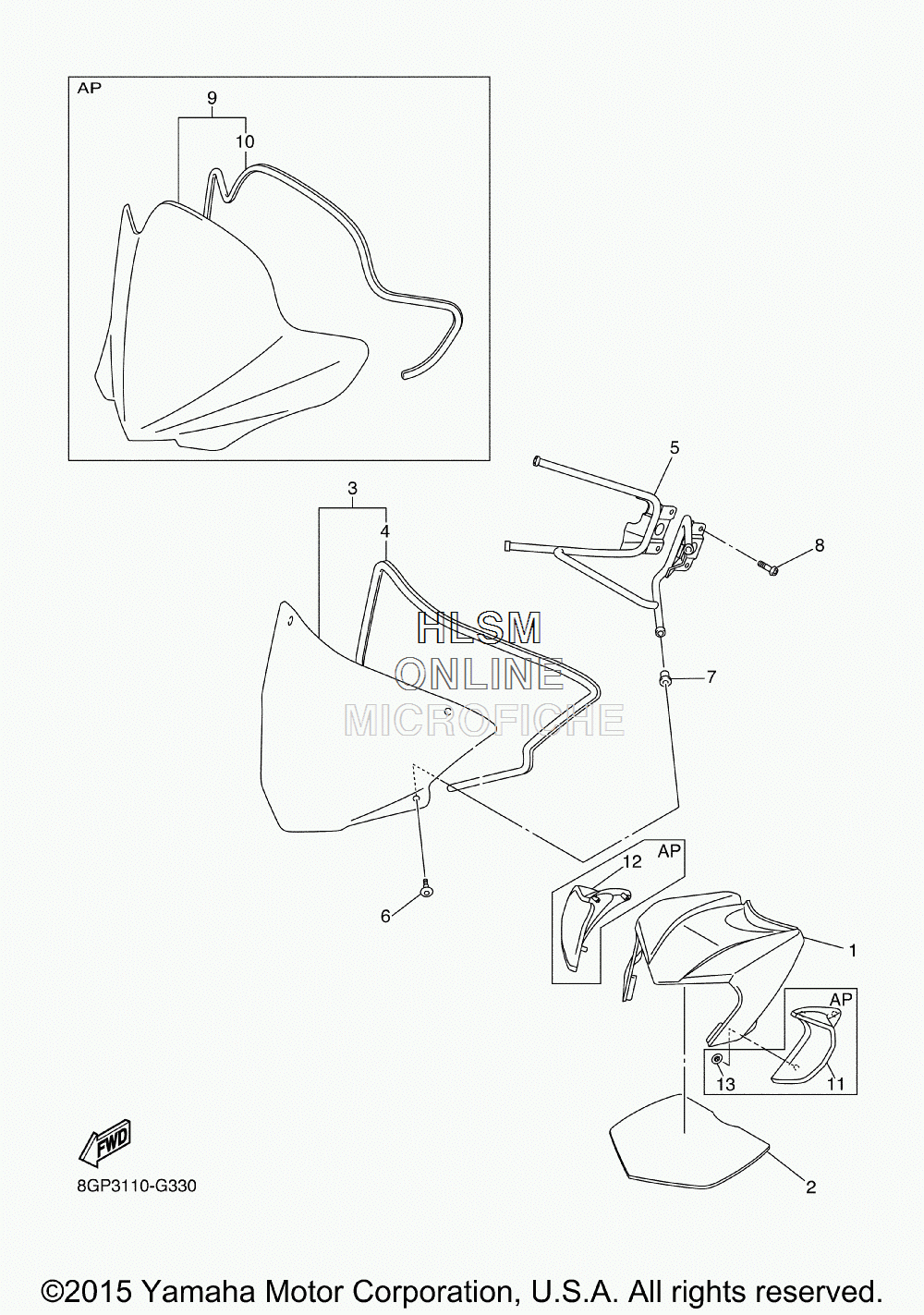

HOOD - WINDSHIELD ASSY для Yamaha PHAZER XTX - 2016 года выпуска`
-
№АртикулНазвание
-
18GC-77251-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28GC-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
38GN-K7210-20-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
48GN-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
58GK-77222-00-00 BRACKET, WINDSHIELD (R.H)BRACKET, WINDSHIELD (R.H)
-
690149-05299-00 SCREWSCREW
-
790179-05003-00 NUTNUT
-
892012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
98GK-77210-10-00 WINDSHIELD COMP. (OPT)WINDSHIELD COMP. (OPT)
-
108GK-77213-10-00 ...TRIM, UPPER (OPT)...TRIM, UPPER (OPT)
-
118GK-77231-00-00 FAIRING (OPT)FAIRING (OPT)
-
128GK-7723A-00-00 FAIRING 2 (OPT)FAIRING 2 (OPT)
-
1390183-06011-00 NUT, SPRING (OPT)NUT, SPRING (OPT)
