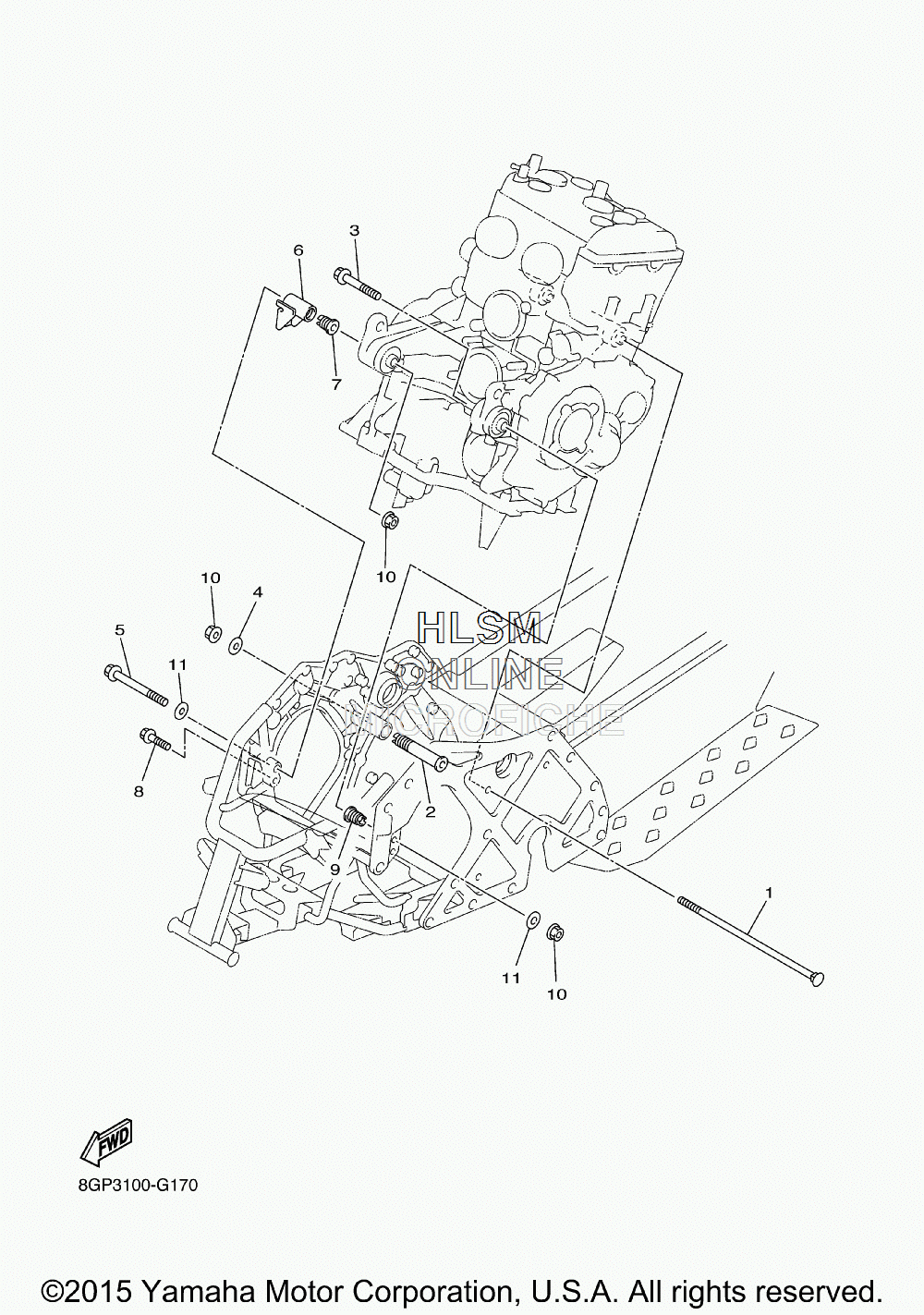

ENGINE MOUNTING для Yamaha PHAZER XTX - 2016 года выпуска`
-
№АртикулНазвание
-
18GC-21481-01-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
28GC-2149C-00-00 BOLTBOLT
-
395817-10100-00 BOLT, FLANGEBOLT, FLANGE
-
490201-100L3-00 WASHER, PLATEWASHER, PLATE
-
595817-10170-00 BOLT, FLANGEBOLT, FLANGE
-
68GK-2141A-00-00 BRACKET 1BRACKET 1
-
78GK-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
895822-08045-00 BOLT, FLANGEBOLT, FLANGE
-
98GC-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1090179-10247-00 NUTNUT
-
1190201-10144-00 WASHER, PLATEWASHER, PLATE
