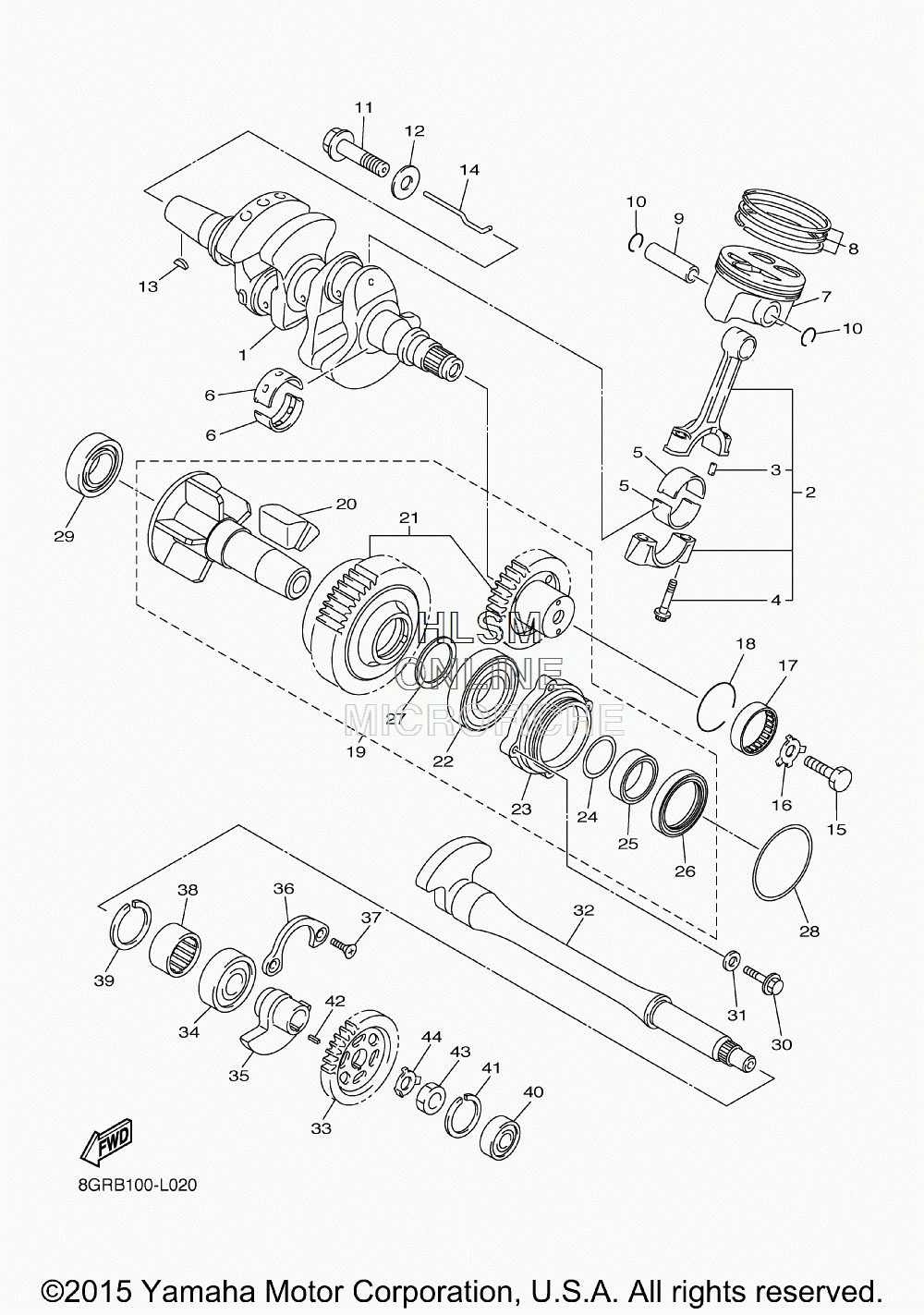

CRANKSHAFT W/ PISTON ASSY для Yamaha PHAZER XTX - 2016 года выпуска`
-
№АртикулНазвание
-
18GC-11411-00-00 CRANKSHAFTCRANKSHAFT
-
28GC-11650-01-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
393603-07073-00 ...PIN, DOWEL...PIN, DOWEL
-
45VY-11654-01-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
54C8-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN) (RED)PLANE BEARING, CONNECTING ROD (BROWN) (RED)
-
54C8-11656-A0-00 PLANE BEARING, CONNECTING ROD (RED) (WHITE)PLANE BEARING, CONNECTING ROD (RED) (WHITE)
-
54C8-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK) (RED)PLANE BEARING, CONNECTING ROD (BLACK) (RED)
-
54C8-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE) (RED)PLANE BEARING, CONNECTING ROD (BLUE) (RED)
-
65VY-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
65VY-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
65VY-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
65VY-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
65VY-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
78GC-11631-00-00 PISTON (STD)PISTON (STD)
-
84C8-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
95VY-11633-00-00 PIN, PISTONPIN, PISTON
-
1090468-12069-00 CLIPCLIP
-
1190105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1390280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1459J-11455-00-00 SHAFT 1SHAFT 1
-
1590101-10009-00 BOLTBOLT
-
1690215-10007-00 WASHER, LOCKWASHER, LOCK
-
1793311-33588-00 BEARINGBEARING
-
1893450-46113-00 CIRCLIPCIRCLIP
-
198GC-W114B-00-00 DRIVE GEAR SETDRIVE GEAR SET
-
208GC-16155-01-00 ...ABSORBER 1...ABSORBER 1
-
218GC-W1615-00-00 ...PRIMARY DRIVEN GEAR SET...PRIMARY DRIVEN GEAR SET
-
2293306-20653-00 ...BEARING...BEARING
-
238GC-16775-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
2493210-30660-00 ...O-RING...O-RING
-
258FA-11478-00-00 ...COLLAR...COLLAR
-
2693102-40023-00 ...OIL SEAL...OIL SEAL
-
2790201-33015-00 ...WASHER, PLATE...WASHER, PLATE
-
2893210-53679-00 O-RINGO-RING
-
2993306-27209-00 BEARINGBEARING
-
3095812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3190430-06166-00 GASKETGASKET
-
328GC-11583-10-00 SHAFT, BALANCER 1SHAFT, BALANCER 1
-
338GC-11531-10-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
3493306-30324-00 BEARINGBEARING
-
358GC-11454-10-00 WEIGHT 1WEIGHT 1
-
364JT-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3790151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
3893311-62574-00 BEARINGBEARING
-
3999009-37500-00 CIRCLIPCIRCLIP
-
4093306-20119-00 BEARINGBEARING
-
4199009-32500-00 CIRCLIPCIRCLIP
-
4290282-04055-00 KEY, STRAIGHTKEY, STRAIGHT
-
4390170-14003-00 NUTNUT
-
4490215-14001-00 WASHER, LOCKWASHER, LOCK
