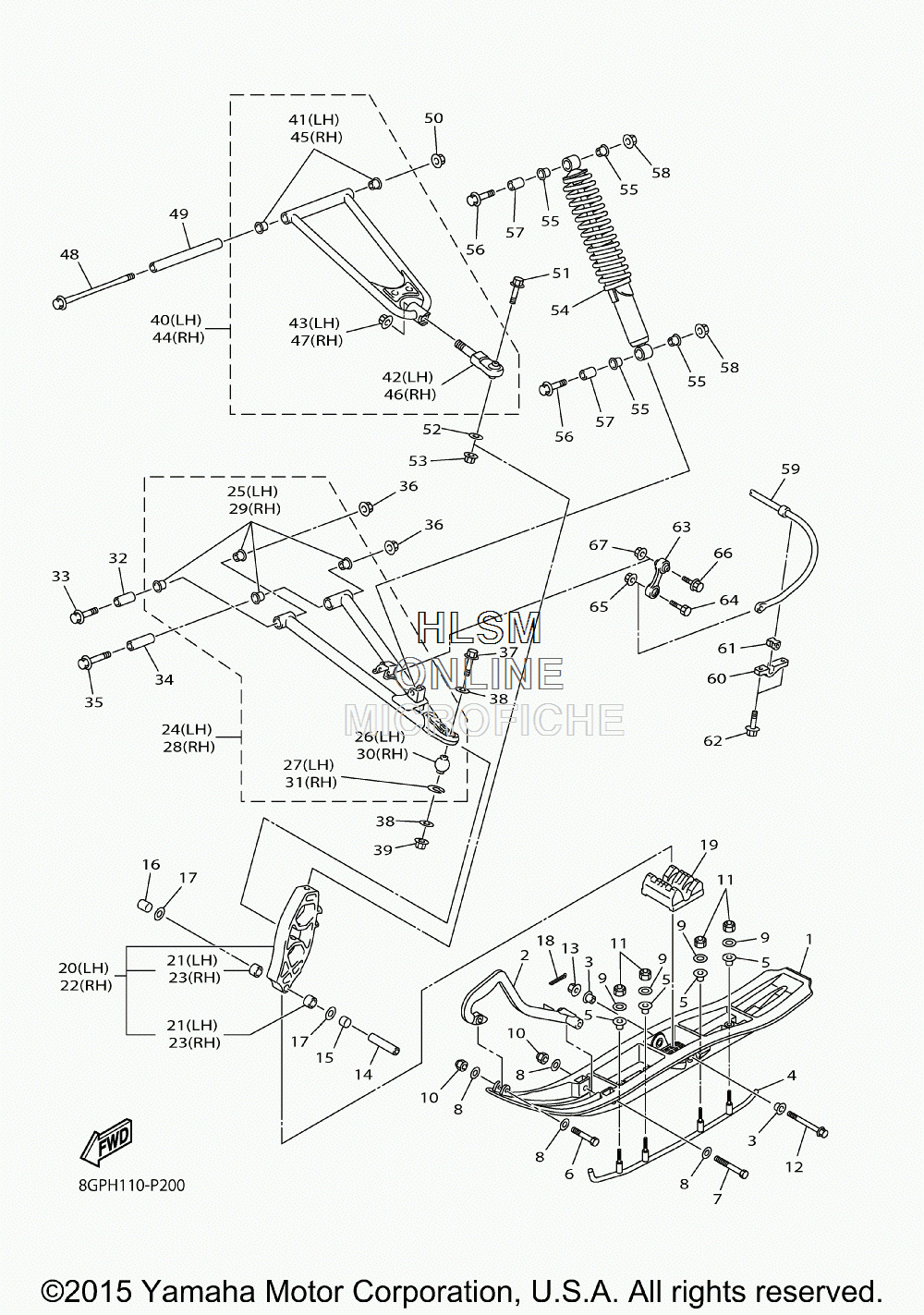

SUSPENSION - FRONT W/ SKI ASSY для Yamaha PHAZER MTX - 2016 года выпуска`
-
№АртикулНазвание
-
18FK-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EX-F3754-00-00 COLLAR 1COLLAR 1
-
48GP-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
78HG-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
88HG-F3737-00-00 WASHER 1WASHER 1
-
98HG-F3738-00-00 WASHER 2WASHER 2
-
108HG-F3778-00-00 NUTNUT
-
118JH-F3778-00-00 NUTNUT
-
1290105-10410-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1490387-10036-00 COLLARCOLLAR
-
1590387-16022-00 COLLARCOLLAR
-
1690387-16023-00 COLLARCOLLAR
-
1790201-16022-00 WASHER, PLATEWASHER, PLATE
-
1891401-20020-00 PIN, COTTERPIN, COTTER
-
198GP-23743-00-00 STOPPER 1STOPPER 1
-
208GK-23501-01-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2190384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
228GK-23502-01-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2390384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
248GP-23570-C0-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2590381-16003-00 ...BUSH, SOLID...BUSH, SOLID
-
268GK-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
2799009-35700-00 ...CIRCLIP...CIRCLIP
-
288GP-23580-C0-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2990381-16003-00 ...BUSH, SOLID...BUSH, SOLID
-
308GK-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
3199009-35700-00 ...CIRCLIP...CIRCLIP
-
3290387-10093-00 COLLARCOLLAR
-
3390105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3490387-10074-00 COLLARCOLLAR
-
3590105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
3695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3790105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3890201-10051-00 WASHER, PLATEWASHER, PLATE
-
3995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
408GP-23540-C0-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
4190381-15003-00 ...BUSH, SOLID...BUSH, SOLID
-
428GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4395602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
448GP-23550-C0-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
4590381-15003-00 ...BUSH, SOLID...BUSH, SOLID
-
468GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4795602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4890105-10213-00 BOLT, FLANGEBOLT, FLANGE
-
4990387-10073-00 COLLARCOLLAR
-
5095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
5191312-10045-00 BOLTBOLT
-
5290201-10052-00 WASHER, PLATEWASHER, PLATE
-
5395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
548GP-2376A-30-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
5590381-14101-00 BUSH, SOLIDBUSH, SOLID
-
5695812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
5790387-105G5-00 COLLARCOLLAR
-
5895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
598GN-2386E-10-00 BAR, STABILIZER FRONT (15MM) (WHITE)BAR, STABILIZER FRONT (15MM) (WHITE)
-
608GN-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
618GN-2386G-10-00 BUSH, STABILIZER FRONT (15.1MM)BUSH, STABILIZER FRONT (15.1MM)
-
6295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
638GN-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6497012-10035-00 BOLTBOLT
-
6595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6695812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
6795602-08200-00 NUT, U FLANGENUT, U FLANGE
